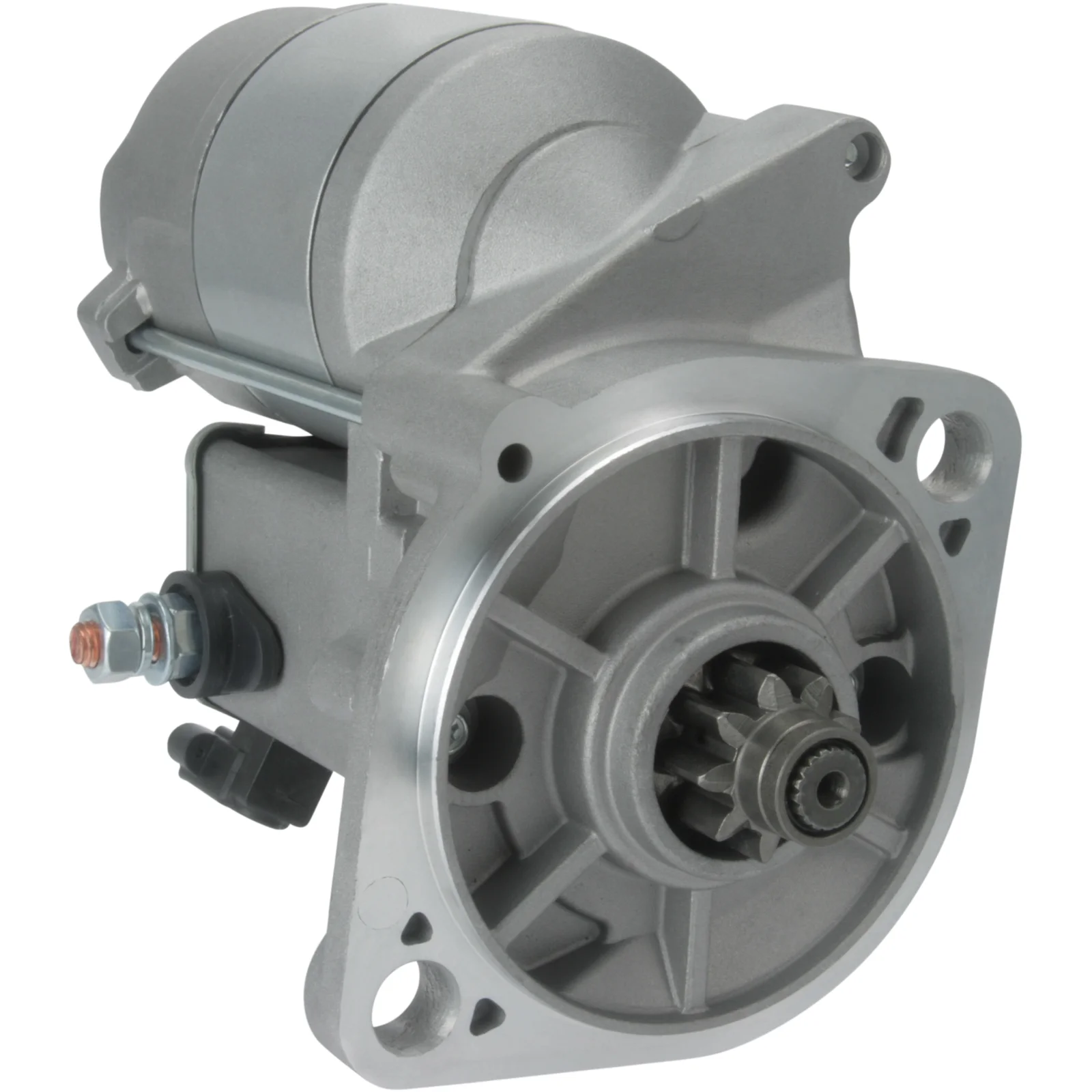

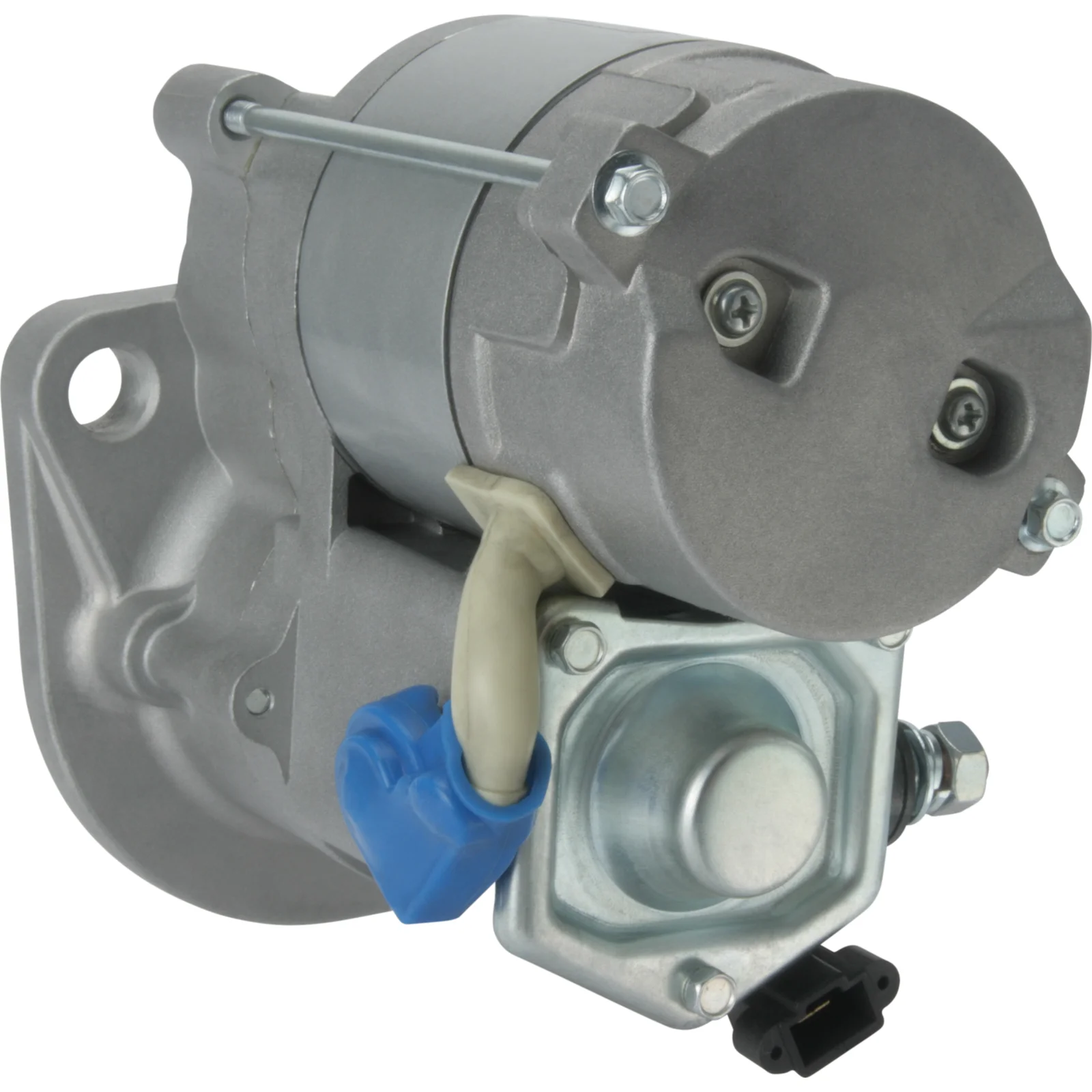

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116016

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 1.2, No./tenner: 9, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 1.2
Monteringsflens: 95.00
Drivningsavstand: 22.00
Monteringshull 2 mm: 13.00
Monteringshull 1 mm: 13.00
Avstand/bak: 124.00
Avstand/framd: 33.00
Nummer/tann: 9
B+: M8
Posisjon/50: 25
Terminal 50: Stikk
Girtype: GR
Avstand mm: 120.00
Rotasjon: med urviseren
Total lengde mm: 183.00
Prod. info: BN
Nummer/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 95.00
No./mount. holes 2 (0)
Position/50 25
Prod. info BN
Rotation CW
Dist./back 124.00
Dist./front 33.00
Drive dist. 22.00
Gear type GR
kW 1.2
Terminal 50 Plug
Voltage 12
Total length 183.00 mm
Dist. 120.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    F032116016, M810337, YM119626-77020, 119626-77020, 428000-0870

  • Konkurrentreferens
    CST40421, LRS04197, SND0766, 25-5359, 980.530.092, 16021N

  • NormaliseratArtNr
    cst40421, f032116016, lrs04197, m810337, snd0766, ym11962677020, 16021n, 255359, 980530092, 4280000870, 11962677020

  • Passar modeller
    John Deere Model: Tractor Lawn Model series: X495 Brand of engine: Yanmar 24HP Approved: Yes
    John Deere Model: Tractor Lawn Model series: X595 Brand of engine: Yanmar 24HP Approved: Yes
    John Deere Model: Tractor Lawn Model series: X740 Brand of engine: Yanmar 24HP Approved: Yes
    John Deere Model: Tractor Lawn Model series: X744 Brand of engine: Yanmar 24HP Approved: Yes
    John Deere Model: Tractor Lawn Model series: X748 Brand of engine: Yanmar 24HP Approved: Yes
    John Deere Model: Tractor Lawn Model series: X749 Brand of engine: Yanmar 24HP Approved: Yes
    John Deere Model: Tractor Lawn Model series: X750 Brand of engine: Yanmar 24HP Approved: Yes
    John Deere Model: Tractor Lawn Model series: X754 Brand of engine: Yanmar 24HP Approved: Yes
    John Deere Model: Tractor Lawn Model series: X758 Brand of engine: Yanmar 24HP Approved: Yes
    John Deere Model: Tractor Lawn Model series: X950R Brand of engine: Yanmar 24HP Approved: Yes
    John Deere Model: Utility Tractor Model series: 1023E Brand of engine: 3TNM72 Approved: Yes
    John Deere Model: Utility Tractor Model series: 1025R Brand of engine: 3TNV76 Approved: Yes
    John Deere Model: Utility Tractor Model series: 1026R Brand of engine: 3TNV76 Approved: Yes
    John Deere Model: Utility Tractor Model series: 2025R Brand of engine: 3TNV76 Approved: Yes
    John Deere Model: Utility Tractor Model series: 2305 Brand of engine: Yanmar Approved: Yes
    John Deere Model: Utility Tractor Model series: 2320 Brand of engine: Yanmar Approved: Yes
    Yanmar Model: Cub Cadet SC2400 Model series: Cub Cadet SC2400 Size of motor: 0.9 Brand of engine: Yanmar Approved: Yes
    1 / 4
  • Beskrivelse
    Spenning: 12
    kW: 1.2
    Monteringsflens: 95.00
    Drivningsavstand: 22.00
    Monteringshull 2 mm: 13.00
    Monteringshull 1 mm: 13.00
    Avstand/bak: 124.00
    Avstand/framd: 33.00
    Nummer/tann: 9
    B+: M8
    Posisjon/50: 25
    Terminal 50: Stikk
    Girtype: GR
    Avstand mm: 120.00
    Rotasjon: med urviseren
    Total lengde mm: 183.00
    Prod. info: BN
    Nummer/monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 95.00
    No./mount. holes 2 (0)
    Position/50 25
    Prod. info BN
    Rotation CW
    Dist./back 124.00
    Dist./front 33.00
    Drive dist. 22.00
    Gear type GR
    kW 1.2
    Terminal 50 Plug
    Voltage 12
    Total length 183.00 mm
    Dist. 120.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Kjøretøymatching

    • OEM
      F032116016, M810337, YM119626-77020, 119626-77020, 428000-0870

    • Konkurrentreferens
      CST40421, LRS04197, SND0766, 25-5359, 980.530.092, 16021N

    • NormaliseratArtNr
      cst40421, f032116016, lrs04197, m810337, snd0766, ym11962677020, 16021n, 255359, 980530092, 4280000870, 11962677020

    • Passar modeller
      John Deere Model: Tractor Lawn Model series: X495 Brand of engine: Yanmar 24HP Approved: Yes
      John Deere Model: Tractor Lawn Model series: X595 Brand of engine: Yanmar 24HP Approved: Yes
      John Deere Model: Tractor Lawn Model series: X740 Brand of engine: Yanmar 24HP Approved: Yes
      John Deere Model: Tractor Lawn Model series: X744 Brand of engine: Yanmar 24HP Approved: Yes
      John Deere Model: Tractor Lawn Model series: X748 Brand of engine: Yanmar 24HP Approved: Yes
      John Deere Model: Tractor Lawn Model series: X749 Brand of engine: Yanmar 24HP Approved: Yes
      John Deere Model: Tractor Lawn Model series: X750 Brand of engine: Yanmar 24HP Approved: Yes
      John Deere Model: Tractor Lawn Model series: X754 Brand of engine: Yanmar 24HP Approved: Yes
      John Deere Model: Tractor Lawn Model series: X758 Brand of engine: Yanmar 24HP Approved: Yes
      John Deere Model: Tractor Lawn Model series: X950R Brand of engine: Yanmar 24HP Approved: Yes
      John Deere Model: Utility Tractor Model series: 1023E Brand of engine: 3TNM72 Approved: Yes
      John Deere Model: Utility Tractor Model series: 1025R Brand of engine: 3TNV76 Approved: Yes
      John Deere Model: Utility Tractor Model series: 1026R Brand of engine: 3TNV76 Approved: Yes
      John Deere Model: Utility Tractor Model series: 2025R Brand of engine: 3TNV76 Approved: Yes
      John Deere Model: Utility Tractor Model series: 2305 Brand of engine: Yanmar Approved: Yes
      John Deere Model: Utility Tractor Model series: 2320 Brand of engine: Yanmar Approved: Yes
      Yanmar Model: Cub Cadet SC2400 Model series: Cub Cadet SC2400 Size of motor: 0.9 Brand of engine: Yanmar Approved: Yes
      1 / 4
