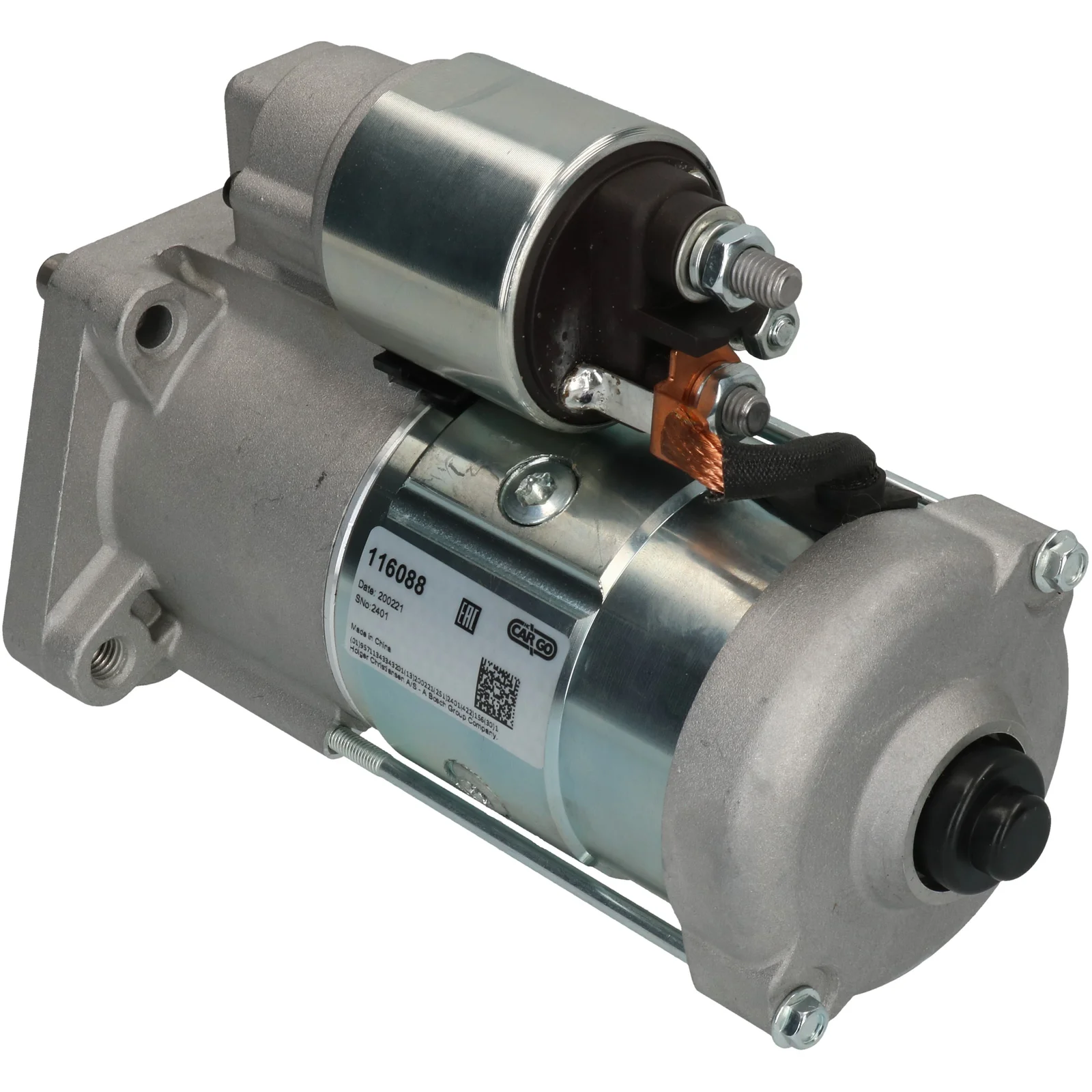

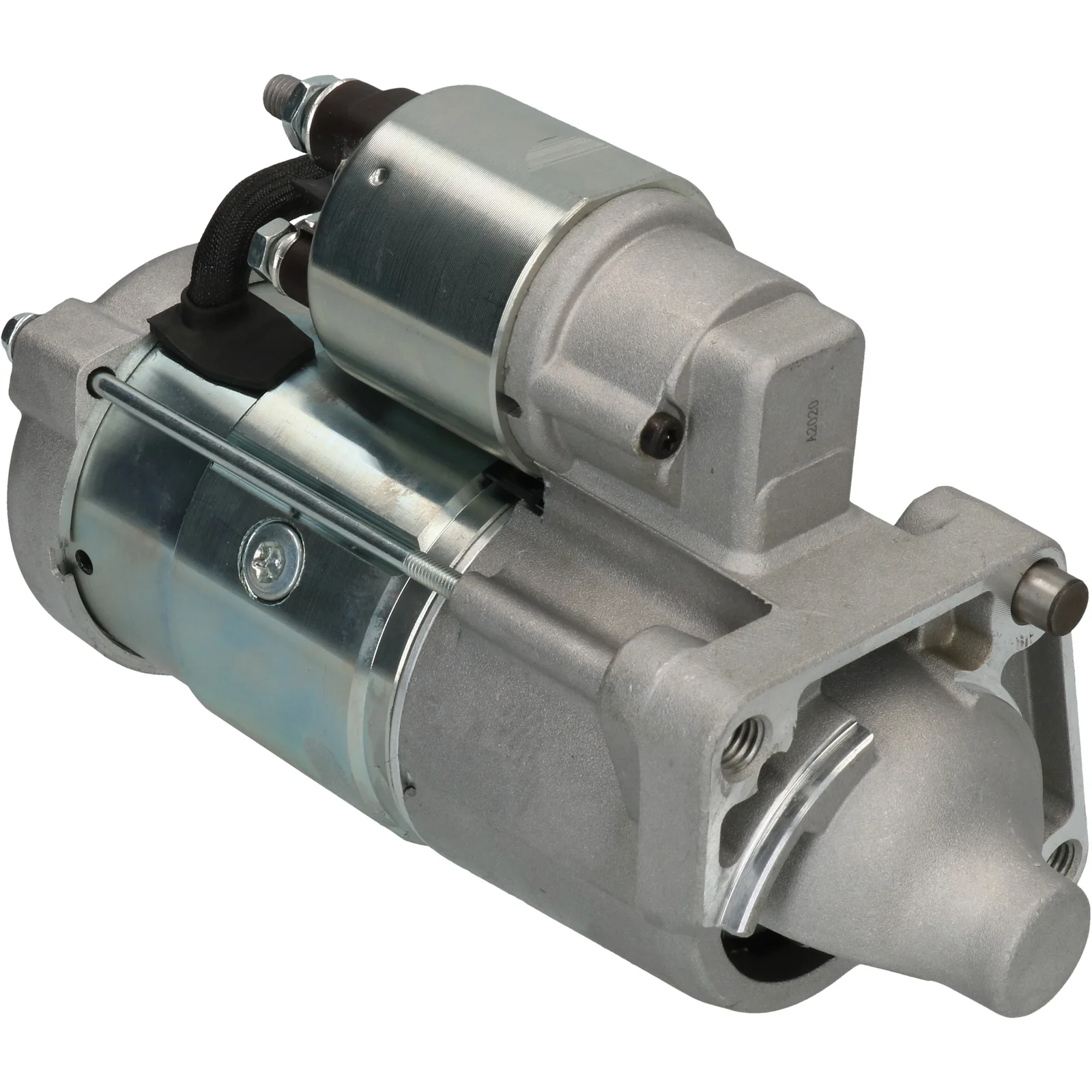

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116088

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 2,4, Antall/tann: 14, Rotasjon: CW

Beskrivelse

Spenningsverdi: 12
kW: 2.4
Monteringsflens: 76.20
Drevavstand: -5.50
Avstand/bak: 186.00
Avstand/frontal: 33.00
Antall/tannhjul: 14
B+: M8
Posisjon/B+: 60
Posisjon/50: 18
Terminal 50: M6
Girkass: GR
Drev mm: 105.50
Rotasjon: CW
Total lengde mm: 235.00
Startermodell: Start/Stop
Antall/monteringshull: 3 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 14
Mount. flange 76.20
No./mount. holes 3 (2)
Position/50 18
Position/B+ 60
Rotation CW
Dist./back 186.00
Dist./front 33.00
Drive dist. -5.50
Gear type GR
Starter type Start/Stop
kW 2.4
Terminal 50 M6
Voltage 12
Total length 235.00 mm
Dist. 105.50 mm

  • OEM
    CST15281, ESW24E5, ESW24E50, F032116088, S3180S, 8EA011612-131, 25-4459, 338.052.142, 810.540.143, 255396, 438308, 458709, 11090332, 30644780, 30644954, 30659475, 36001705, 36002868, 36013580

  • Konkurrentreferens
    CST15281, S3180S, 8EA011612-131, 25-4459, 338.052.142, 810.540.143, 255396, 438308, 458709, 11090332

  • Bilmärken
    VOLVO

  • NormaliseratArtNr
    cst15281, esw24e5, esw24e50, f032116088, s3180s, 8ea011612131, 254459, 255396, 438308, 458709, 11090332, 30644780, 30644954, 30659475, 36001705, 36002868, 36013580, 338052142, 810540143

  • Passar modeller
    VOLVO V40 Cross Country (526) 2.0 D3 Engine volume: 2.0 Engine type: D 5204 T6 Year: 09.13-12.15
    VOLVO V40 Cross Country (526) 2.0 D4 Engine volume: 2.0 Engine type: D 5204 T4 Year: 09.13-12.14
    VOLVO V40 Cross Country (526) D3 Engine volume: 2.0 Engine type: D 5204 T6 Year: 10.12-03.15
    VOLVO V40 Cross Country (526) D4 Engine volume: 2.0 Engine type: D 5204 T4 Year: 10.12-12.14
    VOLVO V40 Skåpbil/halvkombi (525) 2.0 D3 Engine volume: 2.0 Engine type: D 5204 T6 Year: 09.13-12.15
    VOLVO V40 Skåpbil/halvkombi (525) 2.0 D4 Engine volume: 2.0 Engine type: D 5204 T4 Year: 09.13-12.14
    VOLVO V60 I (155) D3 Engine volume: 2.0 Engine type: D 5204 T7 Year: 05.12-12.15
    VOLVO V60 I (155) D4 AWD Engine volume: 2.4 Engine type: D 5244 T17 Year: 05.12-12.15
    VOLVO V60 I (155) D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 04.11-12.15
    VOLVO V60 I (155) D5 Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 04.11-12.15
    VOLVO V60 I Skåp / kombi (155) 2.0 D4 Engine volume: 2.0 Engine type: D 5204 T3 Year: 09.13-12.15
    VOLVO V60 I Skåp / kombi (155) 2.4 D5 Engine volume: 2.4 Engine type: D 5244 T15 Year: 09.13-12.15
    VOLVO V70 III (135) 2.4 D Engine volume: 2.4 Engine type: D 5244 T14 Year: 04.09-12.10
    VOLVO V70 III (135) D3 / D4 Engine volume: 2.0 Engine type: D 5204 T2, D 5204 T3 Year: 03.10-12.15
    VOLVO V70 III (135) D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 03.11-04.16
    VOLVO V70 III Skåp / kombi (135) 2.0 D3 DRIVe Engine volume: 2.0 Engine type: D 5204 T7 Year: 09.13-12.15
    VOLVO V70 III Skåp / kombi (135) 2.4 D4 AWD Engine volume: 2.4 Engine type: D 5244 T17 Year: 09.13-12.15
    VOLVO V70 III Skåp / kombi (135) 2.4 D5 Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 09.13-12.15
    VOLVO XC60 I VAN (156) D3 Engine volume: 2.0 Engine type: D 5204 T7 Year: 09.13-12.15
    VOLVO XC60 I VAN (156) D4 Engine volume: 2.0 Engine type: D 5204 T3 Year: 09.13-02.17
    VOLVO XC60 I VAN (156) D5 AWD Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 09.13-02.17
    VOLVO XC70 II VAN (136) 2.0 D4 Engine volume: 2.0 Engine type: D 5204 T3 Year: 09.13-12.16
    VOLVO XC70 II VAN (136) 2.4 D4 AWD Engine volume: 2.4 Engine type: D 5244 T17 Year: 09.13-04.16
    VOLVO XC70 II VAN (136) 2.4 D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 09.13-12.16
    1 / 5
  • Beskrivelse
    Spenningsverdi: 12
    kW: 2.4
    Monteringsflens: 76.20
    Drevavstand: -5.50
    Avstand/bak: 186.00
    Avstand/frontal: 33.00
    Antall/tannhjul: 14
    B+: M8
    Posisjon/B+: 60
    Posisjon/50: 18
    Terminal 50: M6
    Girkass: GR
    Drev mm: 105.50
    Rotasjon: CW
    Total lengde mm: 235.00
    Startermodell: Start/Stop
    Antall/monteringshull: 3 (2)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 14
    Mount. flange 76.20
    No./mount. holes 3 (2)
    Position/50 18
    Position/B+ 60
    Rotation CW
    Dist./back 186.00
    Dist./front 33.00
    Drive dist. -5.50
    Gear type GR
    Starter type Start/Stop
    kW 2.4
    Terminal 50 M6
    Voltage 12
    Total length 235.00 mm
    Dist. 105.50 mm
  • Kjøretøymatching

    • OEM
      CST15281, ESW24E5, ESW24E50, F032116088, S3180S, 8EA011612-131, 25-4459, 338.052.142, 810.540.143, 255396, 438308, 458709, 11090332, 30644780, 30644954, 30659475, 36001705, 36002868, 36013580

    • Konkurrentreferens
      CST15281, S3180S, 8EA011612-131, 25-4459, 338.052.142, 810.540.143, 255396, 438308, 458709, 11090332

    • Bilmärken
      VOLVO

    • NormaliseratArtNr
      cst15281, esw24e5, esw24e50, f032116088, s3180s, 8ea011612131, 254459, 255396, 438308, 458709, 11090332, 30644780, 30644954, 30659475, 36001705, 36002868, 36013580, 338052142, 810540143

    • Passar modeller
      VOLVO V40 Cross Country (526) 2.0 D3 Engine volume: 2.0 Engine type: D 5204 T6 Year: 09.13-12.15
      VOLVO V40 Cross Country (526) 2.0 D4 Engine volume: 2.0 Engine type: D 5204 T4 Year: 09.13-12.14
      VOLVO V40 Cross Country (526) D3 Engine volume: 2.0 Engine type: D 5204 T6 Year: 10.12-03.15
      VOLVO V40 Cross Country (526) D4 Engine volume: 2.0 Engine type: D 5204 T4 Year: 10.12-12.14
      VOLVO V40 Skåpbil/halvkombi (525) 2.0 D3 Engine volume: 2.0 Engine type: D 5204 T6 Year: 09.13-12.15
      VOLVO V40 Skåpbil/halvkombi (525) 2.0 D4 Engine volume: 2.0 Engine type: D 5204 T4 Year: 09.13-12.14
      VOLVO V60 I (155) D3 Engine volume: 2.0 Engine type: D 5204 T7 Year: 05.12-12.15
      VOLVO V60 I (155) D4 AWD Engine volume: 2.4 Engine type: D 5244 T17 Year: 05.12-12.15
      VOLVO V60 I (155) D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 04.11-12.15
      VOLVO V60 I (155) D5 Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 04.11-12.15
      VOLVO V60 I Skåp / kombi (155) 2.0 D4 Engine volume: 2.0 Engine type: D 5204 T3 Year: 09.13-12.15
      VOLVO V60 I Skåp / kombi (155) 2.4 D5 Engine volume: 2.4 Engine type: D 5244 T15 Year: 09.13-12.15
      VOLVO V70 III (135) 2.4 D Engine volume: 2.4 Engine type: D 5244 T14 Year: 04.09-12.10
      VOLVO V70 III (135) D3 / D4 Engine volume: 2.0 Engine type: D 5204 T2, D 5204 T3 Year: 03.10-12.15
      VOLVO V70 III (135) D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 03.11-04.16
      VOLVO V70 III Skåp / kombi (135) 2.0 D3 DRIVe Engine volume: 2.0 Engine type: D 5204 T7 Year: 09.13-12.15
      VOLVO V70 III Skåp / kombi (135) 2.4 D4 AWD Engine volume: 2.4 Engine type: D 5244 T17 Year: 09.13-12.15
      VOLVO V70 III Skåp / kombi (135) 2.4 D5 Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 09.13-12.15
      VOLVO XC60 I VAN (156) D3 Engine volume: 2.0 Engine type: D 5204 T7 Year: 09.13-12.15
      VOLVO XC60 I VAN (156) D4 Engine volume: 2.0 Engine type: D 5204 T3 Year: 09.13-02.17
      VOLVO XC60 I VAN (156) D5 AWD Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 09.13-02.17
      VOLVO XC70 II VAN (136) 2.0 D4 Engine volume: 2.0 Engine type: D 5204 T3 Year: 09.13-12.16
      VOLVO XC70 II VAN (136) 2.4 D4 AWD Engine volume: 2.4 Engine type: D 5244 T17 Year: 09.13-04.16
      VOLVO XC70 II VAN (136) 2.4 D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 09.13-12.16
      1 / 5
