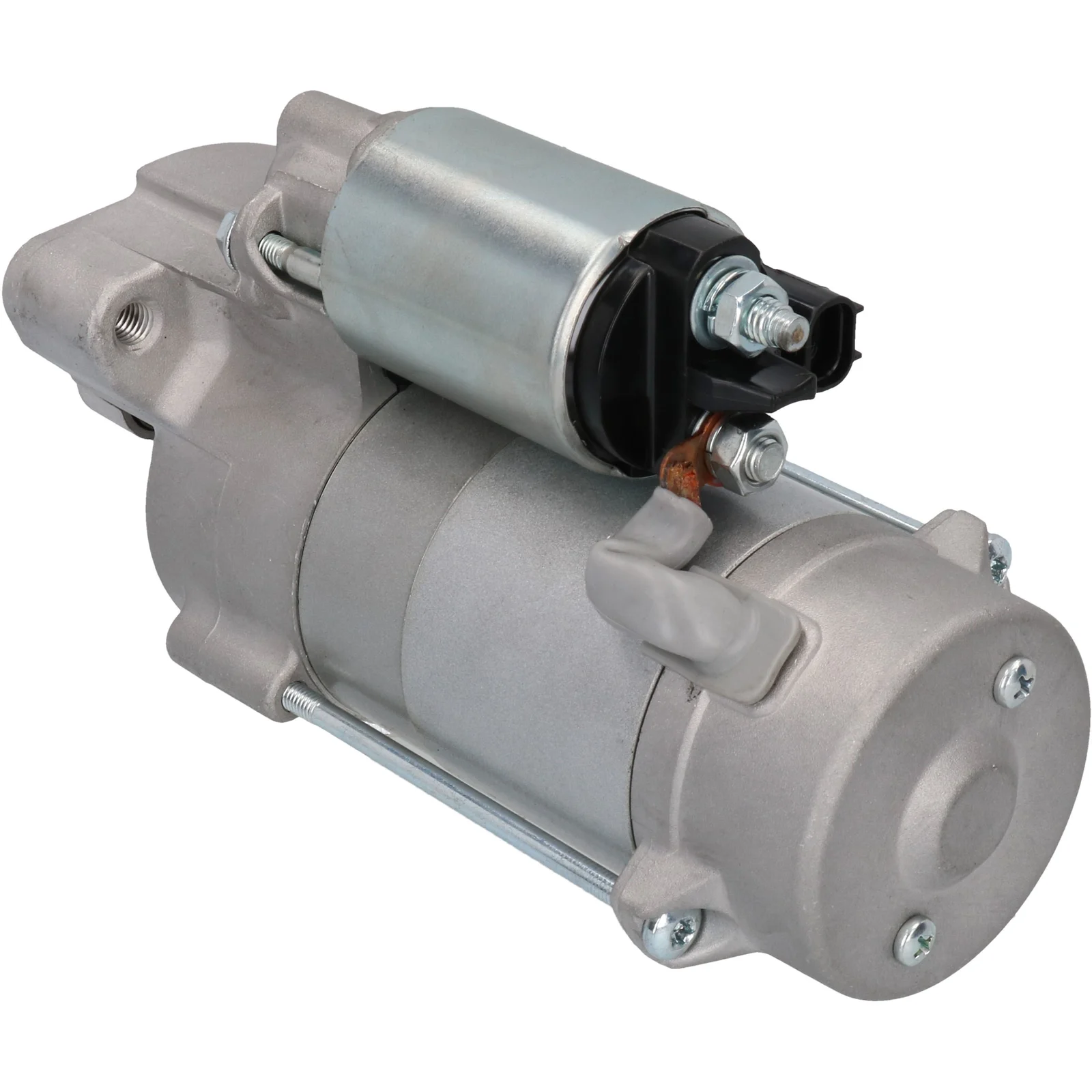

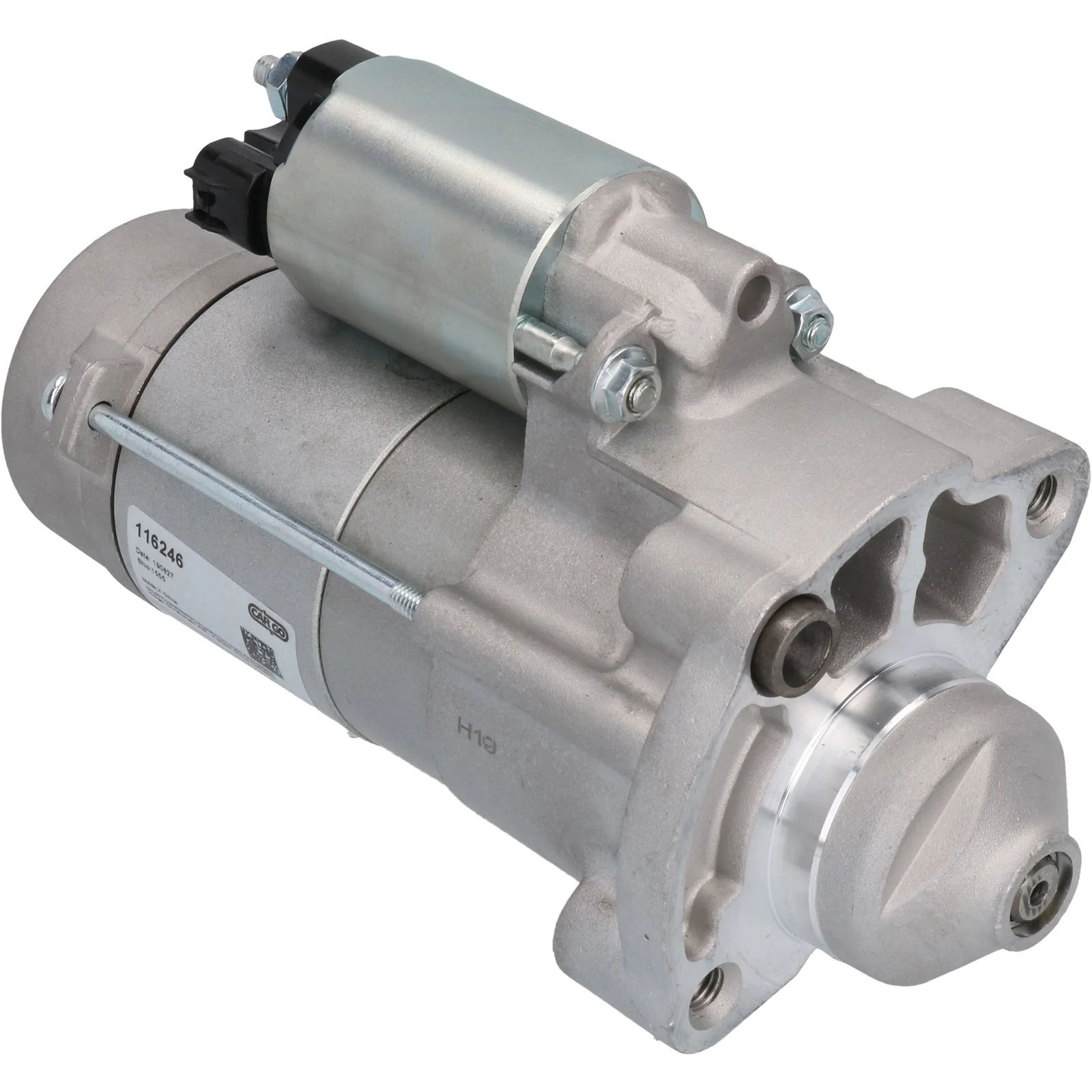

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116246

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 1,9, Antall/tenner: 13, Rotasjon: Klk

Beskrivelse

Spenning: 12
kW: 1,9
Festebrerede: 54,50
Drive avstand: -1,50
Festebore 3 mm: M10
Festebore 2 mm: M10
Festebore 1 mm: M10
Avstand/bak: 207,50
Avstand/frem: 37,50
Antall / tenner: 13
B+: M8
Posisjon/B+: 60
Terminal 50: Kontakt
Girkasse-type: GR
Avstand 2: 65,50
Avstand 3: 65,50
Avstand mm: 102,50
Rotasjon: medur
Total lengde mm: 245,00
Antall / festeboringer: 3 (3)

Filer

Spesifikasjon

B+ M8
No./teeth 13
Mount. flange 54.50
No./mount. holes 3 (3)
Position/B+ 60
Dist. 2 65.50
Dist. 3 65.50
Rotation CW
Dist./back 207.50
Dist./front 37.50
Drive dist. -1.50
Gear type GR
kW 1.9
Terminal 50 Plug
Voltage 12
Total length 245.00 mm
Dist. 102.50 mm
Mount. hole 3 M10 mm
Mount. hole 2 M10 mm
Mount. hole 1 M10 mm

  • OEM
    EJ3211001AB, EJ3211001AC, EJ3211001AD, F032116246, LR047573, LR065819, LR084922, 438000-0820, 438000-0821, 438000-0822

  • Konkurrentreferens
    DSN1365, 8EA011613-121, 450.539.133, 11090340

  • NormaliseratArtNr
    dsn1365, ej3211001ab, ej3211001ac, ej3211001ad, f032116246, lr047573, lr065819, lr084922, 8ea011613121, 11090340, 450539133, 4380000820, 4380000821, 4380000822

  • Passar modeller
    Land Rover Model: Discovery Model series: Discovery Sport Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: LC From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: ED4 Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: SD4 Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: TD4 Type of engine: TD Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Evoque Model type: 4X4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: L538 Body: Box Body / Estate From date: 01-05-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenning: 12
    kW: 1,9
    Festebrerede: 54,50
    Drive avstand: -1,50
    Festebore 3 mm: M10
    Festebore 2 mm: M10
    Festebore 1 mm: M10
    Avstand/bak: 207,50
    Avstand/frem: 37,50
    Antall / tenner: 13
    B+: M8
    Posisjon/B+: 60
    Terminal 50: Kontakt
    Girkasse-type: GR
    Avstand 2: 65,50
    Avstand 3: 65,50
    Avstand mm: 102,50
    Rotasjon: medur
    Total lengde mm: 245,00
    Antall / festeboringer: 3 (3)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 13
    Mount. flange 54.50
    No./mount. holes 3 (3)
    Position/B+ 60
    Dist. 2 65.50
    Dist. 3 65.50
    Rotation CW
    Dist./back 207.50
    Dist./front 37.50
    Drive dist. -1.50
    Gear type GR
    kW 1.9
    Terminal 50 Plug
    Voltage 12
    Total length 245.00 mm
    Dist. 102.50 mm
    Mount. hole 3 M10 mm
    Mount. hole 2 M10 mm
    Mount. hole 1 M10 mm
  • Kjøretøymatching

    • OEM
      EJ3211001AB, EJ3211001AC, EJ3211001AD, F032116246, LR047573, LR065819, LR084922, 438000-0820, 438000-0821, 438000-0822

    • Konkurrentreferens
      DSN1365, 8EA011613-121, 450.539.133, 11090340

    • NormaliseratArtNr
      dsn1365, ej3211001ab, ej3211001ac, ej3211001ad, f032116246, lr047573, lr065819, lr084922, 8ea011613121, 11090340, 450539133, 4380000820, 4380000821, 4380000822

    • Passar modeller
      Land Rover Model: Discovery Model series: Discovery Sport Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: LC From date: 01-09-2014 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: ED4 Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: SD4 Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: TD4 Type of engine: TD Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Evoque Model type: 4X4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: L538 Body: Box Body / Estate From date: 01-05-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
