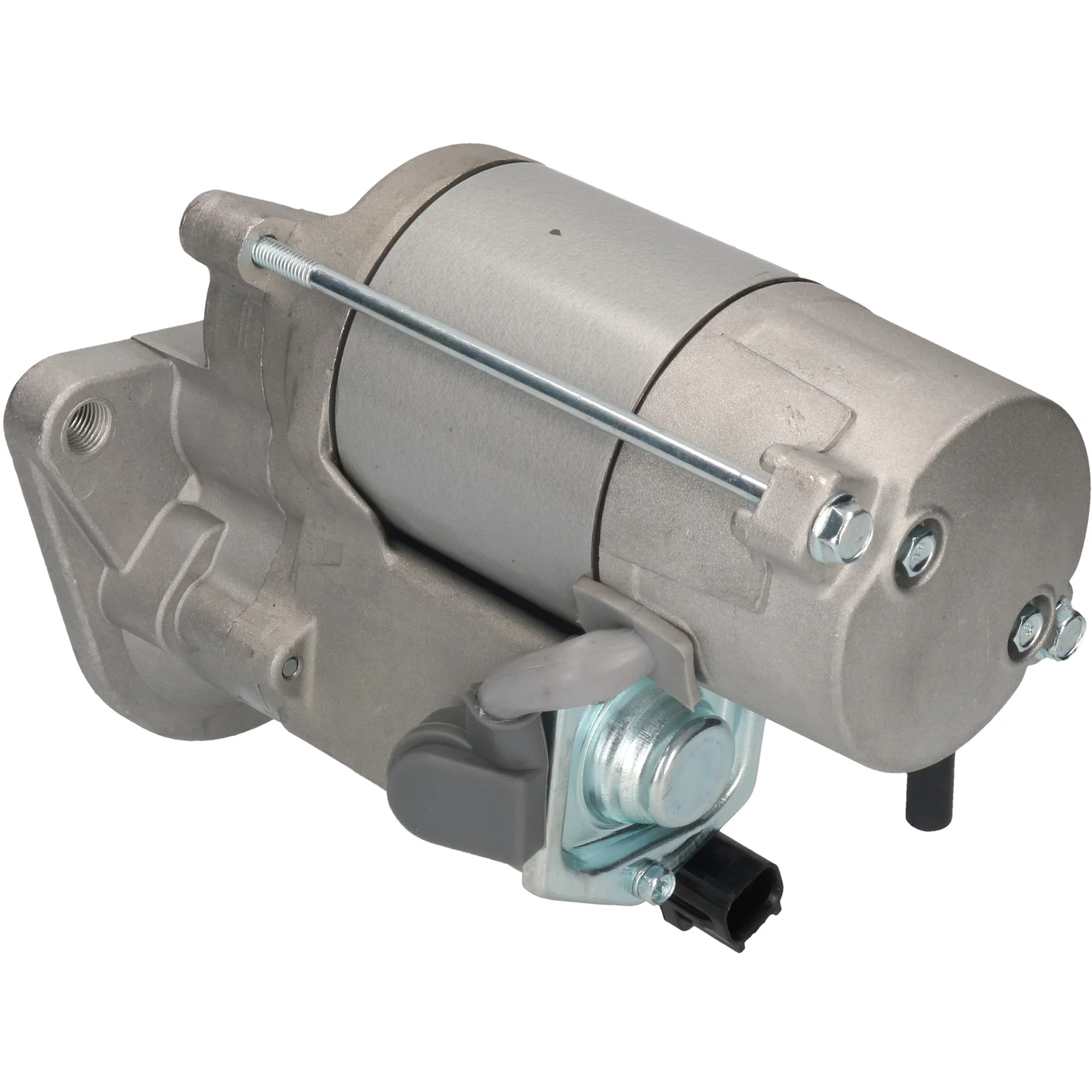

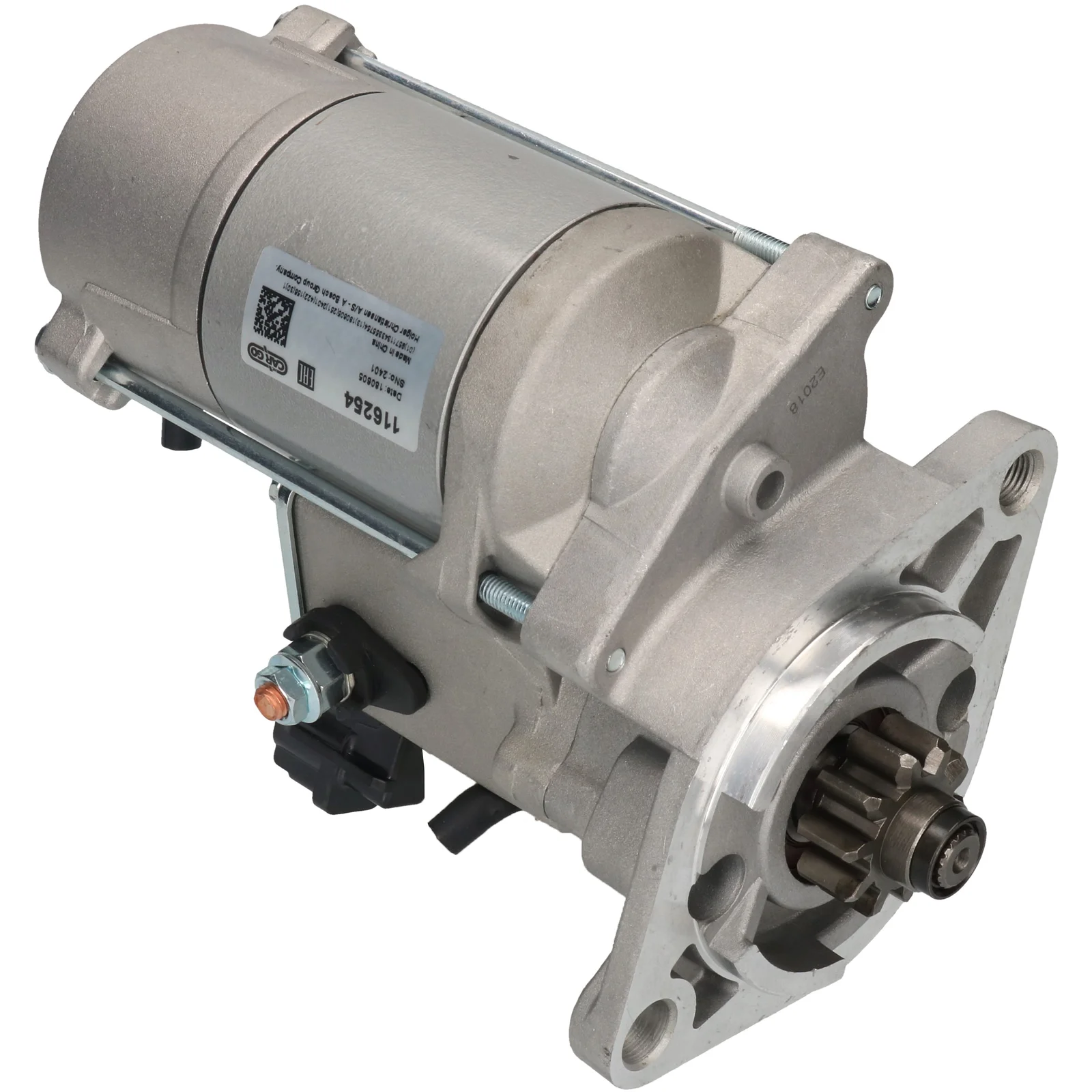

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116254

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 2.0, Ant./tenner: 10, Rotasjon: CW

Beskrivelse

Spennings: 12
kW: 2.0
Innfestningsflens: 82.50
Drevavstand: 18.00
Innfestningshull 2 mm: 13.50
Innfestningshull 1 mm: M12-1.25
Avstand/bak: 130.00
Avstand/frem: 30.00
Nummer/tænder: 10
B+: M8
Posisjon/50: 25
Term., terminal 50: Plugg
Geværtype: GR
Avstand mm: 129.50
Rotasjon: medurs
Total lengde mm: 220.00
Nummer/innfestningshull: 2 (1)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 82.50
No./mount. holes 2 (1)
Position/50 25
Rotation CW
Dist./back 130.00
Dist./front 30.00
Drive dist. 18.00
Gear type GR
kW 2.0
Terminal 50 Plug
Voltage 12
Total length 220.00 mm
Dist. 129.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 M12-1.25 mm

  • OEM
    F032116254, 28100-30040, 428000-0250

  • Konkurrentreferens
    DSN1001, F042200202, S6060, 220361, 220361A, 458776, 11040633

  • NormaliseratArtNr
    dsn1001, f032116254, f042200202, s6060, 220361, 220361a, 458776, 11040633, 2810030040, 4280000250

  • Passar modeller
    Toyota Model: Dyna Model series: Dyna Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: KD_, LY_ Body: Platform / Chassis From date: 01-07-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Bus Model type: D-4D (KDH200) Type of engine: Diesel Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Bus Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: H200 Body: Bus From date: 01-09-2006 To date: 01-06-2014 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: H200 Body: Van From date: 01-09-2006 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: H20_ Body: Bus From date: 01-09-2006 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: H20_ Body: Van From date: 01-06-2004 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4WD Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-11-2001 To date: 01-07-2005 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4WD Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: TGN1_, GGN2_, LAN_, GGN1_, KUN Body: Pick Up From date: 01-11-2004 To date: 01-12-2005 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-11-2001 To date: 01-07-2005 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spennings: 12
    kW: 2.0
    Innfestningsflens: 82.50
    Drevavstand: 18.00
    Innfestningshull 2 mm: 13.50
    Innfestningshull 1 mm: M12-1.25
    Avstand/bak: 130.00
    Avstand/frem: 30.00
    Nummer/tænder: 10
    B+: M8
    Posisjon/50: 25
    Term., terminal 50: Plugg
    Geværtype: GR
    Avstand mm: 129.50
    Rotasjon: medurs
    Total lengde mm: 220.00
    Nummer/innfestningshull: 2 (1)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 10
    Mount. flange 82.50
    No./mount. holes 2 (1)
    Position/50 25
    Rotation CW
    Dist./back 130.00
    Dist./front 30.00
    Drive dist. 18.00
    Gear type GR
    kW 2.0
    Terminal 50 Plug
    Voltage 12
    Total length 220.00 mm
    Dist. 129.50 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 M12-1.25 mm
  • Kjøretøymatching

    • OEM
      F032116254, 28100-30040, 428000-0250

    • Konkurrentreferens
      DSN1001, F042200202, S6060, 220361, 220361A, 458776, 11040633

    • NormaliseratArtNr
      dsn1001, f032116254, f042200202, s6060, 220361, 220361a, 458776, 11040633, 2810030040, 4280000250

    • Passar modeller
      Toyota Model: Dyna Model series: Dyna Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: KD_, LY_ Body: Platform / Chassis From date: 01-07-2001 Fuel: Diesel Approved: Yes
      Toyota Model: Hiace Model series: Hiace Bus Model type: D-4D (KDH200) Type of engine: Diesel Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Bus Fuel: Diesel Approved: Yes
      Toyota Model: Hiace Model series: Hiace Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: H200 Body: Bus From date: 01-09-2006 To date: 01-06-2014 Fuel: Diesel Approved: Yes
      Toyota Model: Hiace Model series: Hiace Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: H200 Body: Van From date: 01-09-2006 Fuel: Diesel Approved: Yes
      Toyota Model: Hiace Model series: Hiace Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: H20_ Body: Bus From date: 01-09-2006 Fuel: Diesel Approved: Yes
      Toyota Model: Hiace Model series: Hiace Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: H20_ Body: Van From date: 01-06-2004 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Model type: 4WD Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-11-2001 To date: 01-07-2005 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Model type: 4WD Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: TGN1_, GGN2_, LAN_, GGN1_, KUN Body: Pick Up From date: 01-11-2004 To date: 01-12-2005 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-11-2001 To date: 01-07-2005 Fuel: Diesel Approved: Yes
      1 / 2
