Varenr.: F032116261

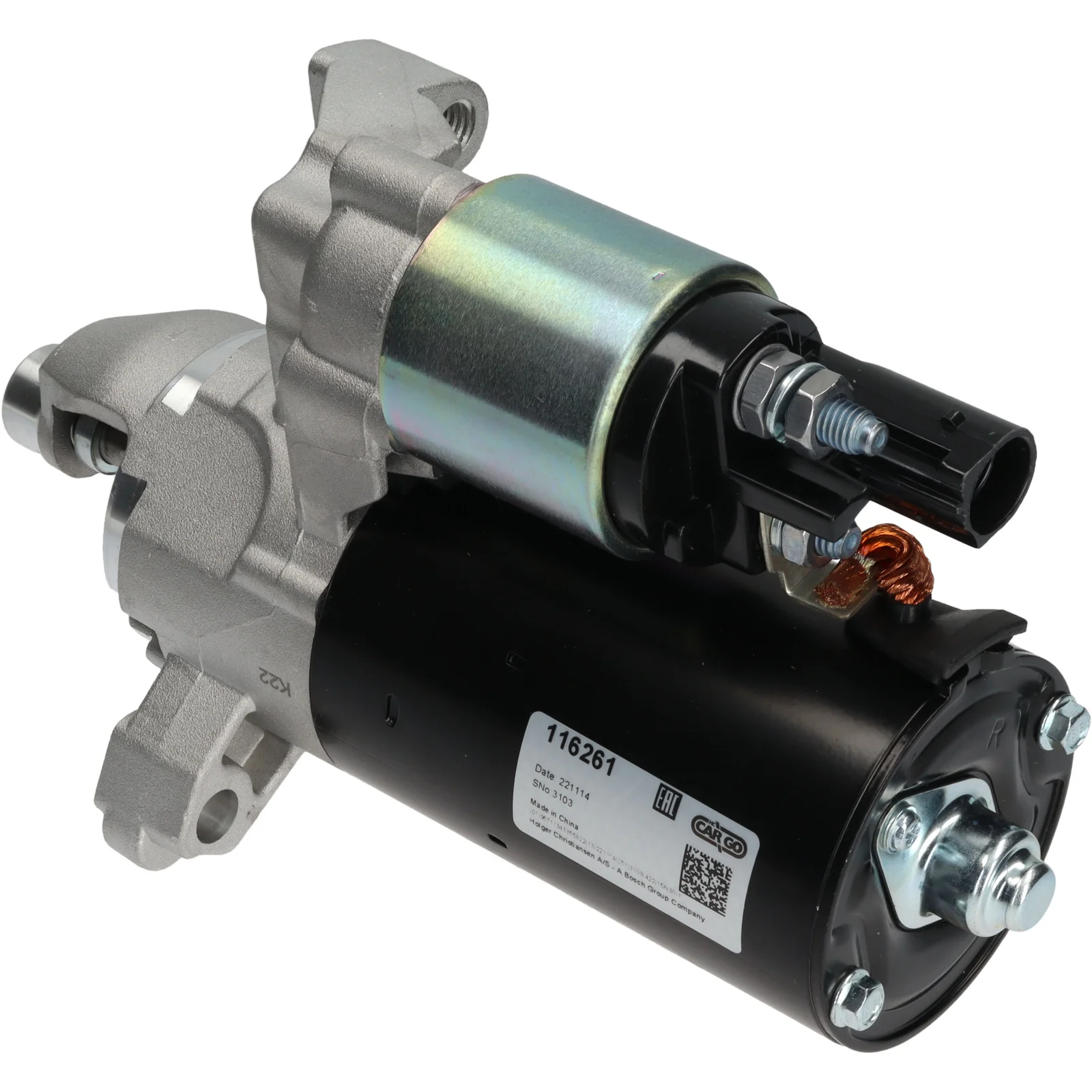

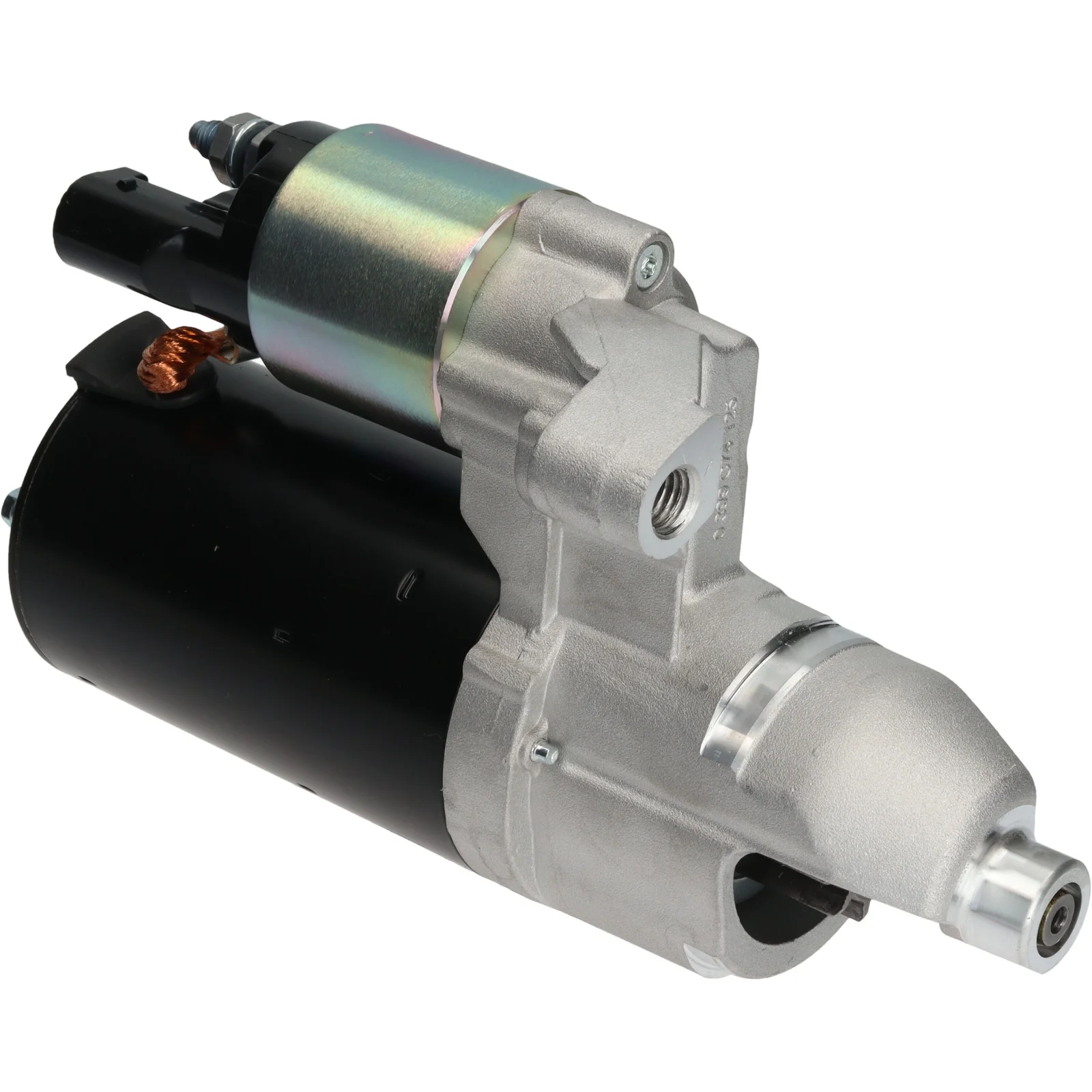

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 1.7, Ant./tenner: 10, Rotasjon: HØYRE HJØRNE

Beskrivelse

Spenningsfart: 12
kW: 1,7
Monteringsflens: 66,00
Dreievneksling: 22,50
Monteringshull 2 mm: 11,00
Monteringshull 1 mm: M12
Avstand/bak: 182,00
Avstand/frem: 59,50
Antall/tannhjul: 10
B+: M8
Posisjon/B+: 60
Posisjon/50: 15
Terminal 50: Plugg
Geværtype: GR
Avstand mm: 138,50
Rotasjon: CW
Total lengde mm: 242,00
Drevetype: Stål
Antall/monteringshull: 2 (1)

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 66.00
No./mount. holes 2 (1)
Position/50 15
Position/B+ 60
Rotation CW
Dist./back 182.00
Dist./front 59.50
Drive dist. 22.50
Drive type Steel
Gear type GR
kW 1.7
Terminal 50 Plug
Voltage 12
Total length 242.00 mm
Dist. 138.50 mm
Mount. hole 2 11.00 mm
Mount. hole 1 M12 mm
  • OEM

    F032116261, 04L911021, 04L911021X, 1986S01347, 0001174404, 0001174405
  • Konkurrentreferens

    CST10A02, DRS0936, S0624PR, S0624S, 30858-OS, 30858NTBA, 11090362, 0986026520
  • NormaliseratArtNr

    cst10a02, drs0936, f032116261, s0624pr, s0624s, 04l911021, 04l911021x, 1986s01347, 30858ntba, 30858os, 0001174404, 0001174405, 11090362, 0986026520
  • Passar modeller

    Audi Model: Q5 Model series: Q5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCD,CSUA Type description: 8RB Body: Box Body / Estate From date: 01-06-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Audi Model: Q5 Model series: Q5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CNHA Type description: 8RB Body: Box Body / Estate From date: 01-05-2015 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Audi Model: Q5 Model series: Q5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CSUB Type description: 8RB Body: Box Body / Estate From date: 01-05-2014 To date: 01-05-2017 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenningsfart: 12
    kW: 1,7
    Monteringsflens: 66,00
    Dreievneksling: 22,50
    Monteringshull 2 mm: 11,00
    Monteringshull 1 mm: M12
    Avstand/bak: 182,00
    Avstand/frem: 59,50
    Antall/tannhjul: 10
    B+: M8
    Posisjon/B+: 60
    Posisjon/50: 15
    Terminal 50: Plugg
    Geværtype: GR
    Avstand mm: 138,50
    Rotasjon: CW
    Total lengde mm: 242,00
    Drevetype: Stål
    Antall/monteringshull: 2 (1)
  • Spesifikasjon
    B+ M8
    No./teeth 10
    Mount. flange 66.00
    No./mount. holes 2 (1)
    Position/50 15
    Position/B+ 60
    Rotation CW
    Dist./back 182.00
    Dist./front 59.50
    Drive dist. 22.50
    Drive type Steel
    Gear type GR
    kW 1.7
    Terminal 50 Plug
    Voltage 12
    Total length 242.00 mm
    Dist. 138.50 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 M12 mm
  • Kjøretøymatching
    • OEM

      F032116261, 04L911021, 04L911021X, 1986S01347, 0001174404, 0001174405
    • Konkurrentreferens

      CST10A02, DRS0936, S0624PR, S0624S, 30858-OS, 30858NTBA, 11090362, 0986026520
    • NormaliseratArtNr

      cst10a02, drs0936, f032116261, s0624pr, s0624s, 04l911021, 04l911021x, 1986s01347, 30858ntba, 30858os, 0001174404, 0001174405, 11090362, 0986026520
    • Passar modeller

      Audi Model: Q5 Model series: Q5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCD,CSUA Type description: 8RB Body: Box Body / Estate From date: 01-06-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Audi Model: Q5 Model series: Q5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CNHA Type description: 8RB Body: Box Body / Estate From date: 01-05-2015 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Audi Model: Q5 Model series: Q5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CSUB Type description: 8RB Body: Box Body / Estate From date: 01-05-2014 To date: 01-05-2017 Fuel: Diesel Approved: Yes
