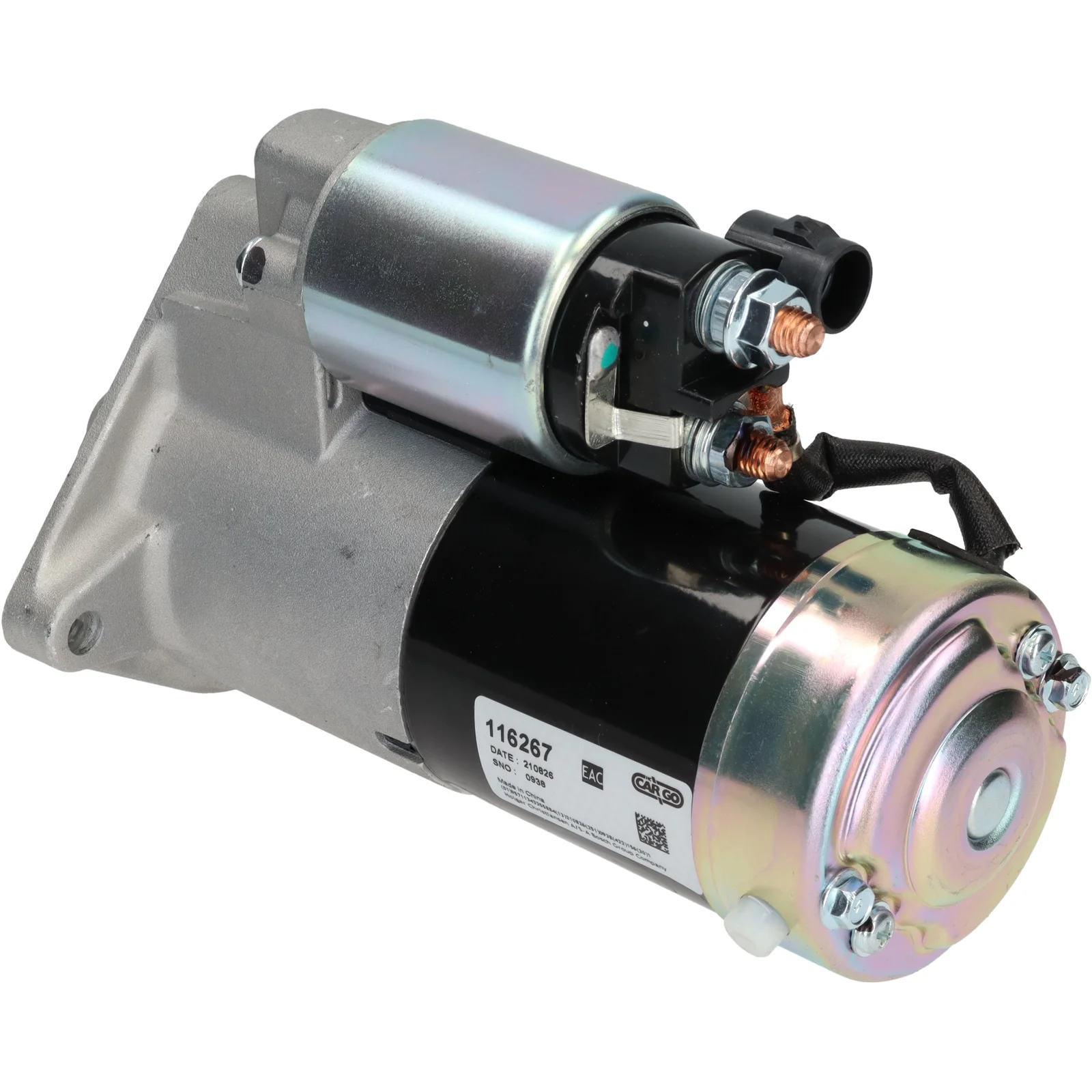

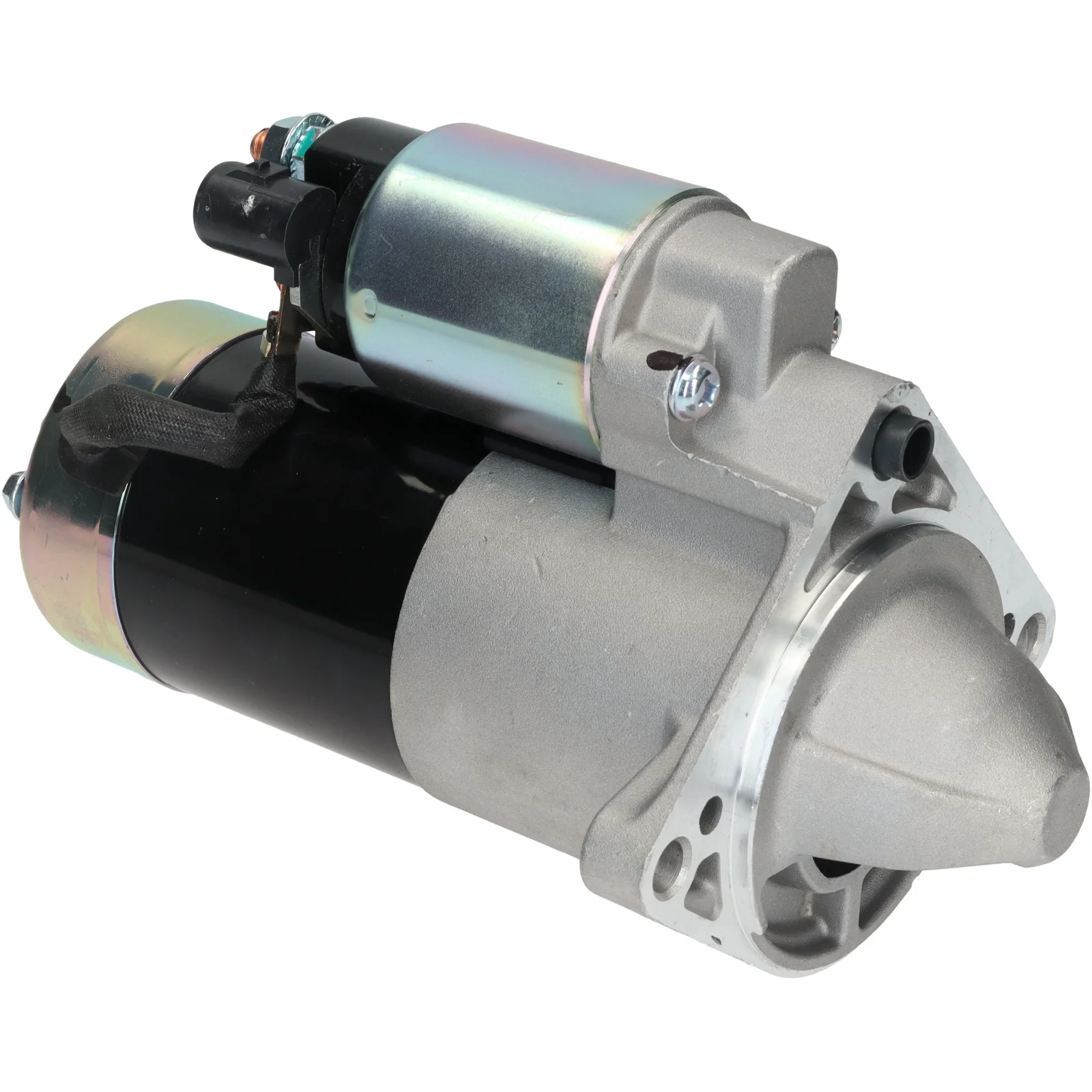

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116267

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 1.8, Nr./tenner: 10, Rotasjon: medurs

Beskrivelse

Spenningskilde: 12
kW: 1.8
Feste-flens: 82.00
Drivelsesavstand: 3.50
Festehull 2 mm: 8.80
Festehull 1 mm: 8.80
Avstand/bak: 182.00
Avstand/frem: 41.00
Ant./tenner: 10
B+: M8
Posisjon/B+: 60
Posisjon/50: 10
Terminal 50: Plugg
Giret type: GR
Avstand mm: 116.00
Rotasjon: CW
Total lengde mm: 223.00
Ant./festehull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 82.00
No./mount. holes 2 (0)
Position/50 10
Position/B+ 60
Rotation CW
Dist./back 182.00
Dist./front 41.00
Drive dist. 3.50
Gear type GR
kW 1.8
Terminal 50 Plug
Voltage 12
Total length 223.00 mm
Dist. 116.00 mm
Mount. hole 2 8.80 mm
Mount. hole 1 8.80 mm

  • OEM
    F032116267, K56029591AB, M001T31171, M001T31171ZC, M1T31171, M1T31171ZC, 56029591AB

  • Konkurrentreferens
    DRS0926, LRS02708, S5377S, 830.937.102, 220855, 220855A, 11040876

  • NormaliseratArtNr
    drs0926, f032116267, k56029591ab, lrs02708, m001t31171, m001t31171zc, m1t31171, m1t31171zc, s5377s, 220855, 220855a, 11040876, 56029591ab, 830937102

  • Passar modeller
    Fiat Model: Freemont Model series: Freemont Model type: 4x4 Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Type description: JC Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Freemont Model series: Freemont Model type: 4x4 Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Type description: JC_ Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Freemont Model series: Freemont Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Freemont Model series: Freemont Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Type description: JC Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Freemont Model series: Freemont Type of engine: JTD Size of motor: 2.0 Brand of engine: 940A5.000 Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenningskilde: 12
    kW: 1.8
    Feste-flens: 82.00
    Drivelsesavstand: 3.50
    Festehull 2 mm: 8.80
    Festehull 1 mm: 8.80
    Avstand/bak: 182.00
    Avstand/frem: 41.00
    Ant./tenner: 10
    B+: M8
    Posisjon/B+: 60
    Posisjon/50: 10
    Terminal 50: Plugg
    Giret type: GR
    Avstand mm: 116.00
    Rotasjon: CW
    Total lengde mm: 223.00
    Ant./festehull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 10
    Mount. flange 82.00
    No./mount. holes 2 (0)
    Position/50 10
    Position/B+ 60
    Rotation CW
    Dist./back 182.00
    Dist./front 41.00
    Drive dist. 3.50
    Gear type GR
    kW 1.8
    Terminal 50 Plug
    Voltage 12
    Total length 223.00 mm
    Dist. 116.00 mm
    Mount. hole 2 8.80 mm
    Mount. hole 1 8.80 mm
  • Kjøretøymatching

    • OEM
      F032116267, K56029591AB, M001T31171, M001T31171ZC, M1T31171, M1T31171ZC, 56029591AB

    • Konkurrentreferens
      DRS0926, LRS02708, S5377S, 830.937.102, 220855, 220855A, 11040876

    • NormaliseratArtNr
      drs0926, f032116267, k56029591ab, lrs02708, m001t31171, m001t31171zc, m1t31171, m1t31171zc, s5377s, 220855, 220855a, 11040876, 56029591ab, 830937102

    • Passar modeller
      Fiat Model: Freemont Model series: Freemont Model type: 4x4 Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Type description: JC Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
      Fiat Model: Freemont Model series: Freemont Model type: 4x4 Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Type description: JC_ Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
      Fiat Model: Freemont Model series: Freemont Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
      Fiat Model: Freemont Model series: Freemont Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Type description: JC Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
      Fiat Model: Freemont Model series: Freemont Type of engine: JTD Size of motor: 2.0 Brand of engine: 940A5.000 Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
