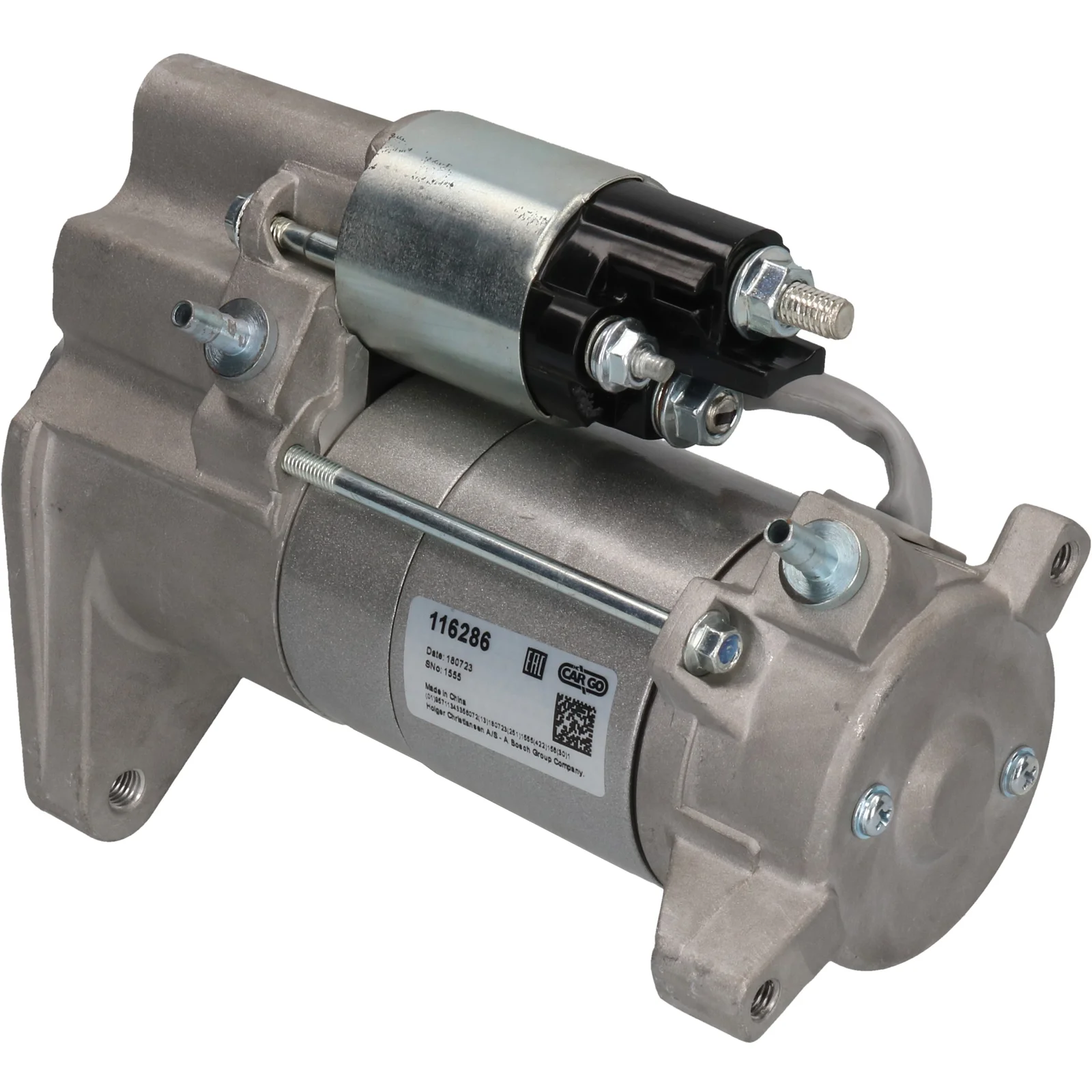

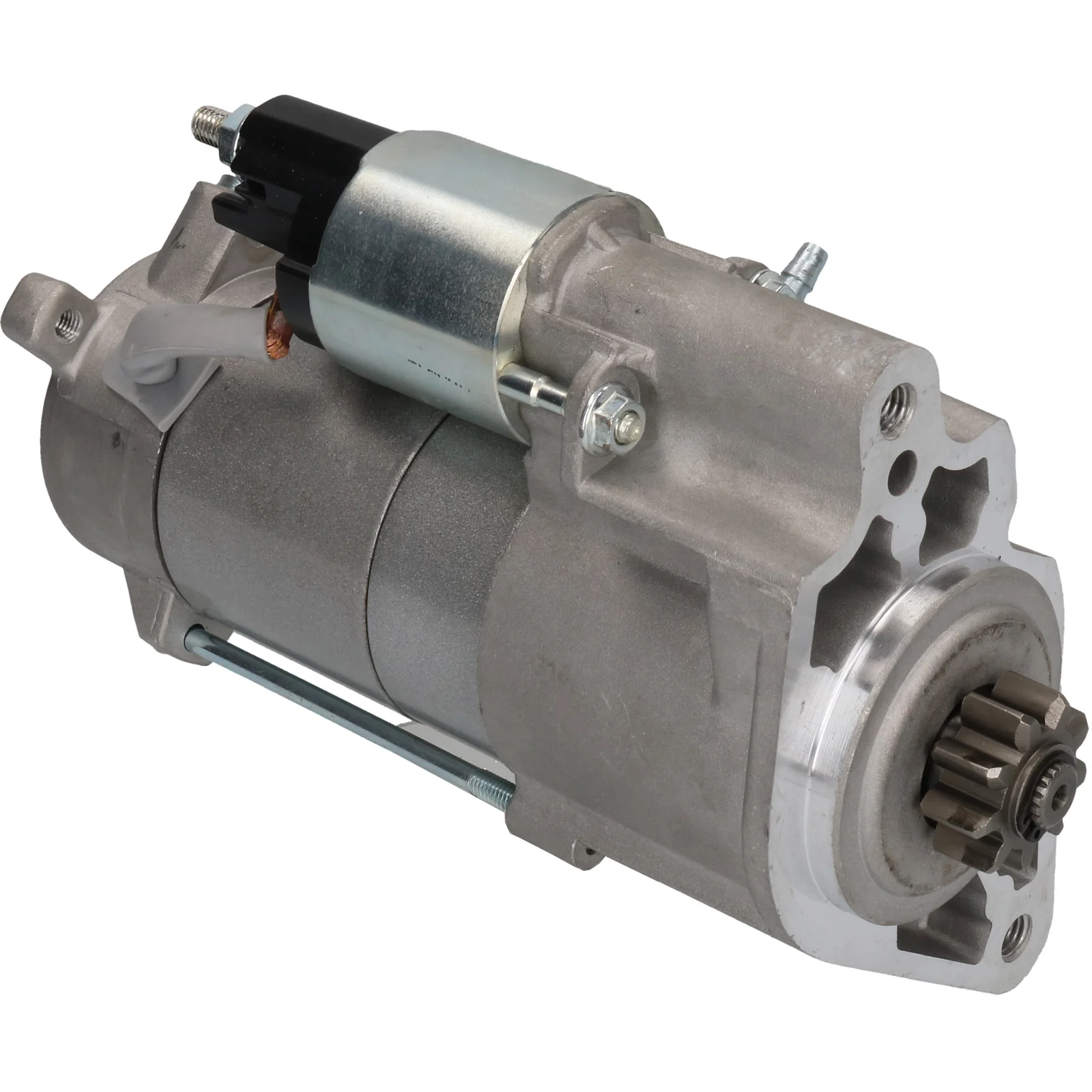

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116286

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 2,0, Ant./tenner: 9, Rotasjon: CW

Beskrivelse

Spenning: 12
kW: 2.0
Monteringsflens: 70.00
Drevavstand: 25.50
Avstand/bak: 212.00
Avstand/fram: 30.00
Nr./tenner: 9
B+: M8
Posisjon/50: 45
Terminal 50: M6
Geværtype: GR
Avstand mm: 146.50
Rotasjon: CW
Total lengde mm: 242.00
Nr./monteringshull: 2 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 70.00
No./mount. holes 2 (2)
Position/50 45
Rotation CW
Dist./back 212.00
Dist./front 30.00
Drive dist. 25.50
Gear type GR
kW 2.0
Terminal 50 M6
Voltage 12
Total length 242.00 mm
Dist. 146.50 mm

  • OEM
    AH2211001AC, AH2211001AD, AH2211001AE, AH2211001AF, AH2211001AG, F032116286, LR013540, LR043924, LR052752, LR080299, 1986S00630, 428000-5950, 428000-5951, 428000-5952, 428000-5953

  • Konkurrentreferens
    CST40372, DRS0918, DSN976, LRS02616, 8EA011613-141, 25-4289, 314.051.092, 30431N, 30431R, 220765, 220765A, 254467, 11040884, 0986026550

  • NormaliseratArtNr
    ah2211001ac, ah2211001ad, ah2211001ae, ah2211001af, ah2211001ag, cst40372, drs0918, dsn976, f032116286, lr013540, lr043924, lr052752, lr080299, lrs02616, 8ea011613141, 1986s00630, 30431n, 30431r, 220765, 220765a, 254289, 254467, 11040884, 314051092, 0986026550, 4280005950, 4280005951, 4280005952, 4280005953

  • Passar modeller
    Land Rover Model: Discovery Model series: Discovery Model type: 4x4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT Type description: LR_ From date: 01-09-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Model type: 4x4 Type of engine: TDI Size of motor: 3.0 Brand of engine: 306DT Type description: L319 Body: Van From date: 01-01-2011 To date: 01-12-2017 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Model type: Sdv6 4X4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT Type description: L462 Body: Box Body / Estate From date: 01-09-2018 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Model type: Td6 4X4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT Type description: L462 Body: Box Body / Estate From date: 01-09-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Model type: SDV6 4x4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT (TDV6) Type description: L405 Body: SUV Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenning: 12
    kW: 2.0
    Monteringsflens: 70.00
    Drevavstand: 25.50
    Avstand/bak: 212.00
    Avstand/fram: 30.00
    Nr./tenner: 9
    B+: M8
    Posisjon/50: 45
    Terminal 50: M6
    Geværtype: GR
    Avstand mm: 146.50
    Rotasjon: CW
    Total lengde mm: 242.00
    Nr./monteringshull: 2 (2)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 70.00
    No./mount. holes 2 (2)
    Position/50 45
    Rotation CW
    Dist./back 212.00
    Dist./front 30.00
    Drive dist. 25.50
    Gear type GR
    kW 2.0
    Terminal 50 M6
    Voltage 12
    Total length 242.00 mm
    Dist. 146.50 mm
  • Kjøretøymatching

    • OEM
      AH2211001AC, AH2211001AD, AH2211001AE, AH2211001AF, AH2211001AG, F032116286, LR013540, LR043924, LR052752, LR080299, 1986S00630, 428000-5950, 428000-5951, 428000-5952, 428000-5953

    • Konkurrentreferens
      CST40372, DRS0918, DSN976, LRS02616, 8EA011613-141, 25-4289, 314.051.092, 30431N, 30431R, 220765, 220765A, 254467, 11040884, 0986026550

    • NormaliseratArtNr
      ah2211001ac, ah2211001ad, ah2211001ae, ah2211001af, ah2211001ag, cst40372, drs0918, dsn976, f032116286, lr013540, lr043924, lr052752, lr080299, lrs02616, 8ea011613141, 1986s00630, 30431n, 30431r, 220765, 220765a, 254289, 254467, 11040884, 314051092, 0986026550, 4280005950, 4280005951, 4280005952, 4280005953

    • Passar modeller
      Land Rover Model: Discovery Model series: Discovery Model type: 4x4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT Type description: LR_ From date: 01-09-2016 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Model type: 4x4 Type of engine: TDI Size of motor: 3.0 Brand of engine: 306DT Type description: L319 Body: Van From date: 01-01-2011 To date: 01-12-2017 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Model type: Sdv6 4X4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT Type description: L462 Body: Box Body / Estate From date: 01-09-2018 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Model type: Td6 4X4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT Type description: L462 Body: Box Body / Estate From date: 01-09-2016 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Model type: SDV6 4x4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT (TDV6) Type description: L405 Body: SUV Fuel: Diesel Approved: Yes
