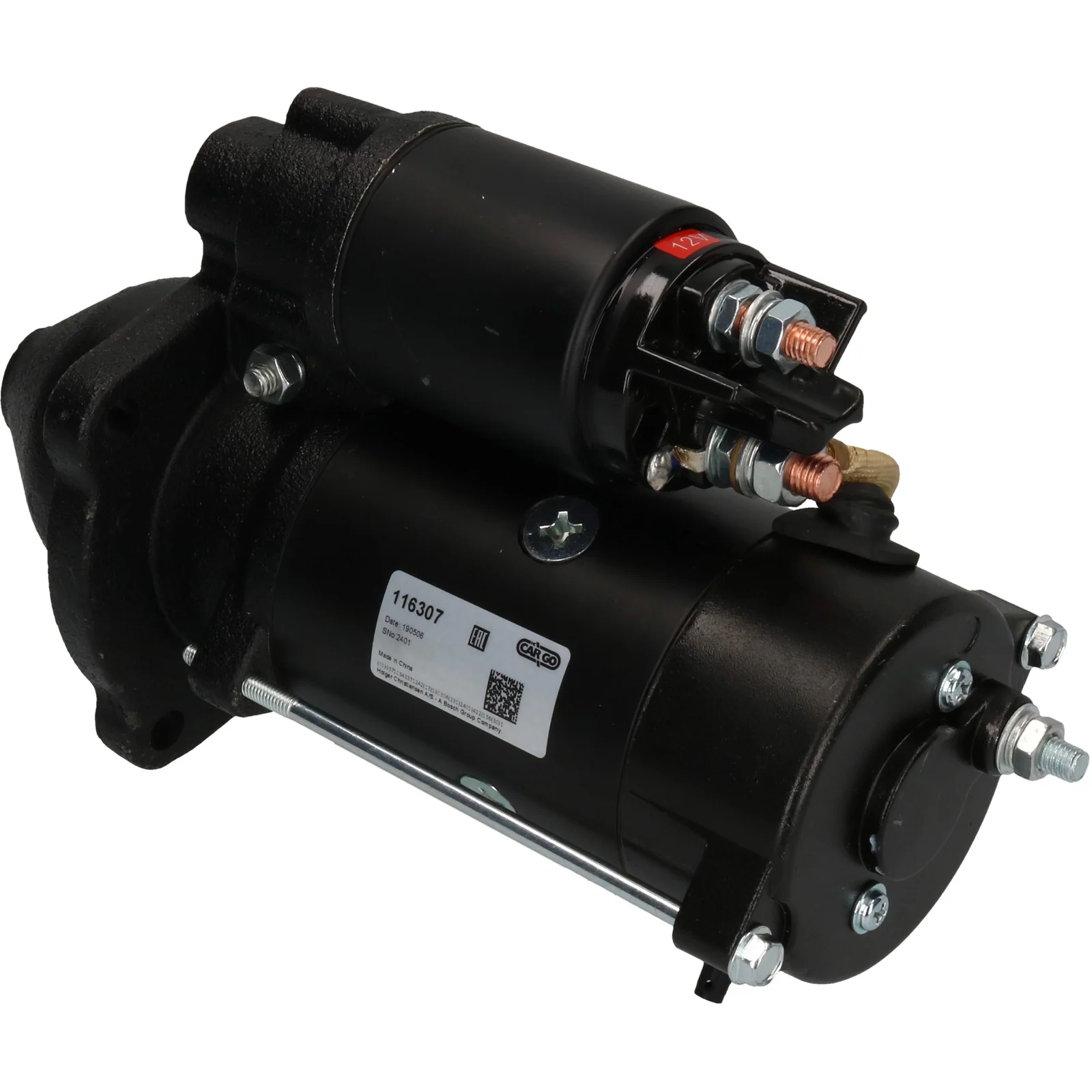

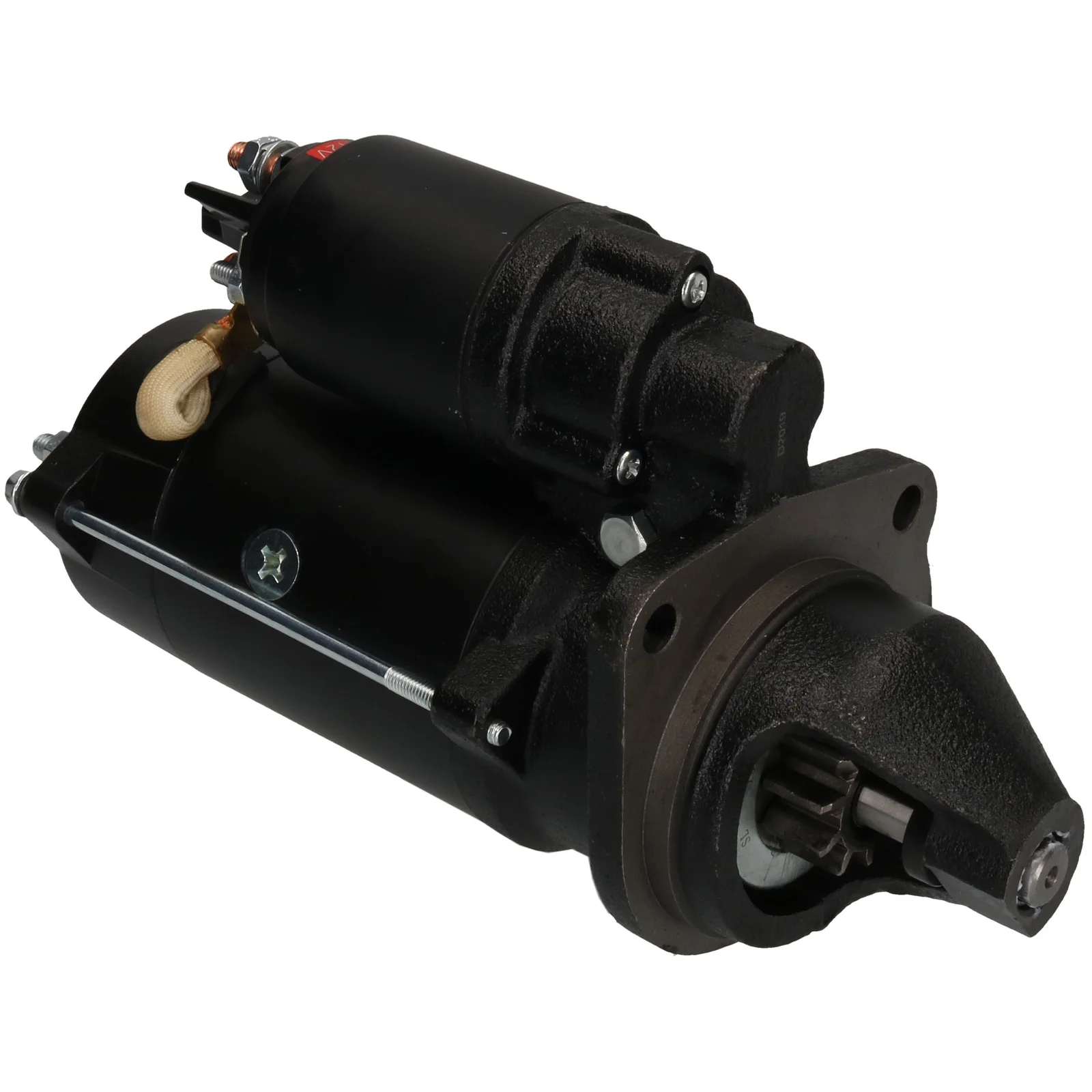

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116307

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 3,2, Ant./tenner: 10, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

MF Startmotor 12V-3,2kW, Iskra type 12V - 3,2kW, 10k. Iskra G/R type. A - 89mm, B - 29,5mm JD Bosch type. Modell. Større & lengre modell passer dem traktortypene som har romme = 91-441-7069. For Yourex produkt bestilling 91-355-1071

Voltage: 12
kW: 3,2
Feste flange: 89,00
Drevavstand: 29,00
Festehull 3 mm: 10,80
Festehull 2 mm: 10,80
Festehull 1 mm: 10,80
Avstand/bak: 200,00
Avstand/frem: 76,00
Antall/tannhjul: 10
B+: M8
Gjengethull lengde mm: 15,00
Posisjon/50: 15
Terminal 50: M6
Drevtype: GR
Avstand 2: 127,00
Avstand 3: 90,00
Avstand mm: 90,00
Rotasjon: CW
Posisjon/b-: 10
B-: M8
Totallengde mm: 299,00
Prod. info: BN
Merkning: Iskra-versjon.
Antall/festehull: 3 (0)

Filer

Spesifikasjon

B+ M8
B- M8
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 15
Position/b- 10
Prod. info BN
Dist. 2 127.00
Remarks Iskra version.
Dist. 3 90.00
Rotation CW
Dist./back 200.00
Dist./front 76.00
Drive dist. 29.00
Gear type GR
kW 3.2
Terminal 50 M6
Voltage 12
Total length 299.00 mm
Dist. 90.00 mm
Thread length 15.00 mm
Mount. hole 3 10.80 mm
Mount. hole 2 10.80 mm
Mount. hole 1 10.80 mm

  • OEM
    AZE4272, AZF 4542, AZF 4569, F032113489, F032116307, T400268, t410874, 11.131.228, 11.131.410, 11.131.606, 11.131.780, 11.131.946, 11.131.964, 11.132.035, 11.132.149, 225-3148, 1071, 1195, 2873 K404, 2873k621, 2873k632, 3823 621 M91, 11131 065, 11131 228, 116307, 388186A1, 388186A2, 388186A3, 860714, 958578, 1447773R1, 3575202, 3586847, 3667040M91, 3680133M91, 3784889M2, 3784890M1, 3786094M93, 3823621M91, 3823621M92, 3823621M93, 3823621M94, 3823621M95, 3823621M96, 5269854, 6306848M91, 11445780, 63280040

  • Konkurrentreferens
    CST21106, CST21107, CST21186, CST30161, DRS0066, DRS0279, IS1195, LRS02598, MS111, MS289, S9144, S9172(LETRIKA), S9417S, 25-3377, 25-4271, 650.505.103, 18941N, 18941R, 30529N, 33410N, 107091, 220814, 220814A

  • Bilmärken
    Caterpillar, JCB, Massey Ferguson, Perkins Engines, Terex Corporation

  • NormaliseratArtNr
    aze4272, azf4542, azf4569, cst21106, cst21107, cst21186, cst30161, drs0066, drs0279, f032113489, f032116307, is1195, lrs02598, ms111, ms289, s9144, s9172letrika, s9417s, t400268, t410874, 1071, 1195, 2873k404, 2873k621, 2873k632, 18941n, 18941r, 30529n, 33410n, 107091, 116307, 220814, 220814a, 253377, 254271, 388186a1, 388186a2, 388186a3, 860714, 958578, 1447773r1, 2253148, 3575202, 3586847, 3667040m91, 3680133m91, 3784889m2, 3784890m1, 3786094m93, 3823621m91, 3823621m92, 3823621m93, 3823621m94, 3823621m95, 3823621m96, 5269854, 6306848m91, 11131065, 11131228, 11131410, 11131606, 11131780, 11131946, 11131964, 11132035, 11132149, 11445780, 63280040, 650505103

  • Passar modeller
    Caterpillar Series: Engine Model: 3056E 12V
    JCB Model: 8 Model series: 8 Brand of engine: Perkins 6-354 From date: 01-01-1969 Fuel: Diesel Approved: Yes
    Massey Ferguson Series: Traktor Model: MF 6270
    Massey Ferguson Series: Traktor Model: MF 6290
    Massey Ferguson Series: Traktor Model: MF 8210
    Massey Ferguson Series: Traktor Model: MF 8220
    Perkins Engines Model: 1006-6 12V
    Perkins Engines Model: 1006-60
    Perkins Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    Terex Corporation Series: Grävlastare Model: 980 Engine type: Perkins
    Terex Corporation Series: Hjullastare Model: TL 120 Engine type: Perkins
