HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116336

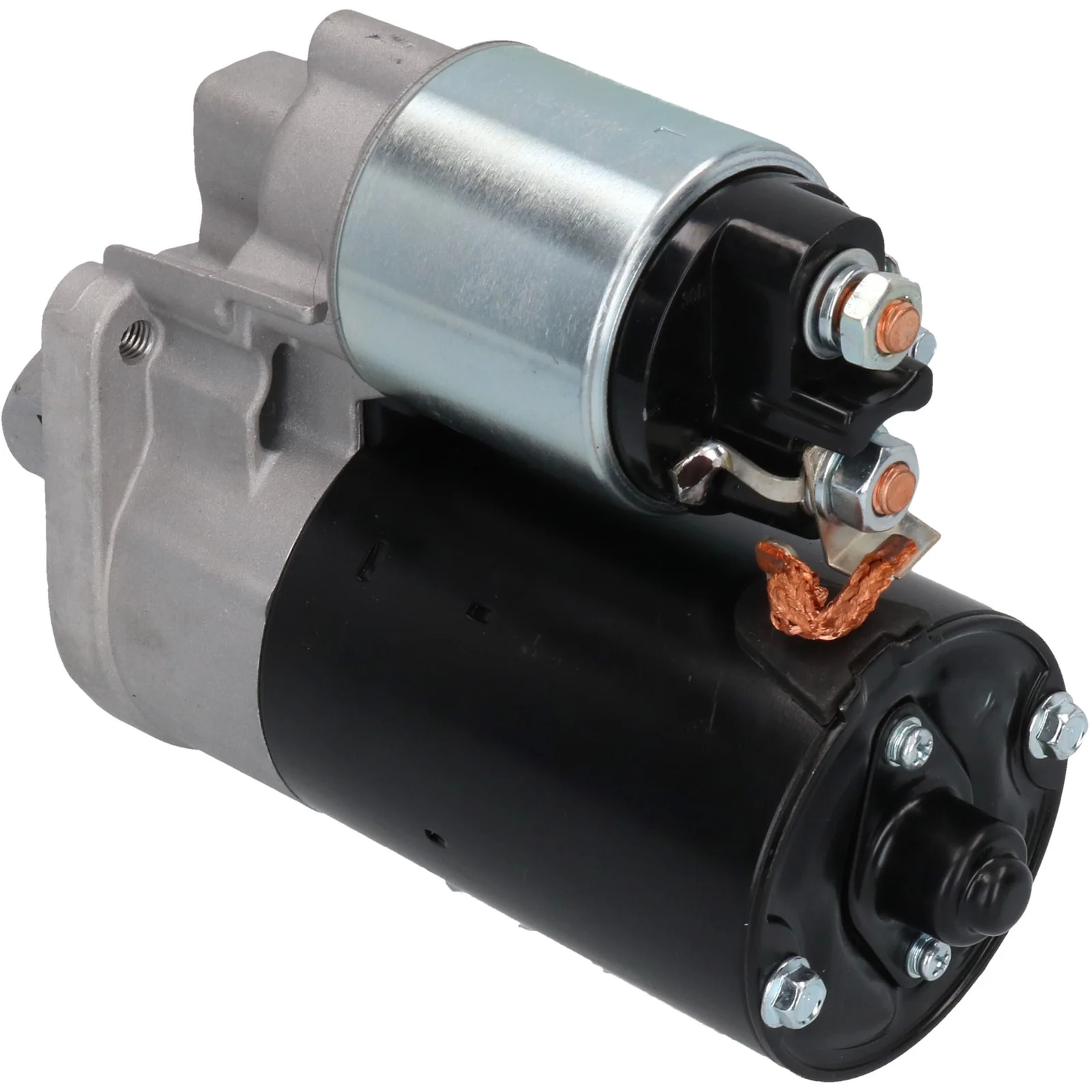

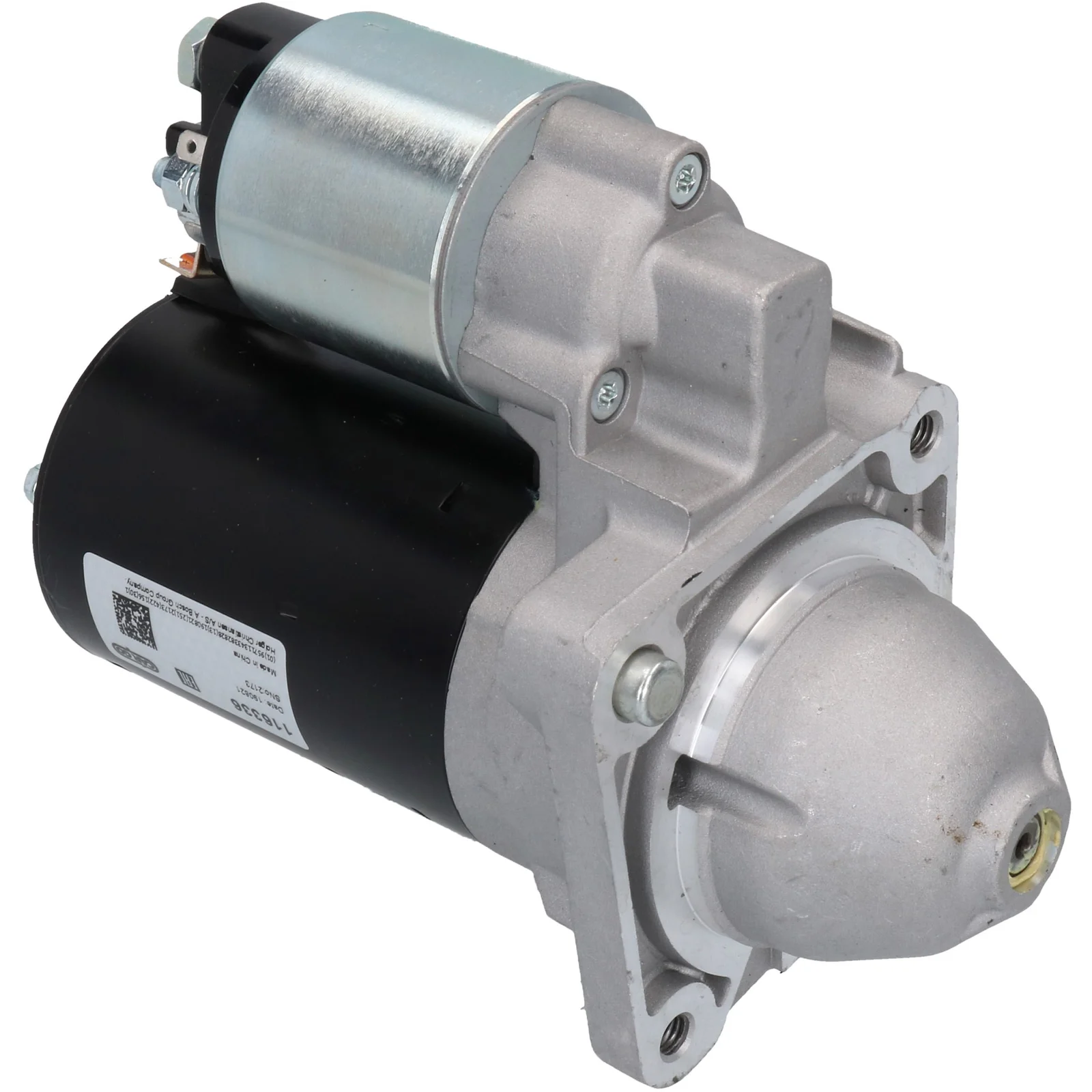

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12 V, Effekt: 1,1 kW, Antall/tann: 9, Rotasjon: med urviseren

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 1.1
Montering.flens: 66,00
Drivningsavstand: 12,00
Monteringshull 3 mm: 11,00
Avstand/bak: 165,00
Avstand/frem: 45,00
Nr./tenner: 9
B+: M8
Posisjon/B+: 60
Posisjon/50: 17
Terminal 50: M6
Gavel type: GR
Avstand 2: 72,00
Avstand 3: 73,00
Avstand mm: 105,00
Rotasjon: med urviseren
Total lengde mm: 210,00
Nr./monteringshull: 3 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 66.00
No./mount. holes 3 (2)
Position/50 17
Position/B+ 60
Dist. 2 72.00
Dist. 3 73.00
Rotation CW
Dist./back 165.00
Dist./front 45.00
Drive dist. 12.00
Gear type GR
kW 1.1
Terminal 50 M6
Voltage 12
Total length 210.00 mm
Dist. 105.00 mm
Mount. hole 3 11.00 mm

  • OEM
    CS1213, F032116336, 1986S00663, 0001107091, 0001107097, 0001107109, 0001107110, 0001107111, 7773763, 46451529, 46748349, 46748350, 46821681, 51776205, 51832956, 51868757, 55193407, 55832956

  • Konkurrentreferens
    DRS8880, DRS8880X, LRS01582, S0524, 8EA012526-621, 25-3088, 318.083.092, 3013, 32579R, 32582N, 101213, 104728, 106202, 220057, 220057A, 458505, 8018880, 11018880, 42022111, 0986018880, 063111017010, 063521070910, 063521070970, 944280188800

  • NormaliseratArtNr
    cs1213, drs8880, drs8880x, f032116336, lrs01582, s0524, 8ea012526621, 1986s00663, 3013, 32579r, 32582n, 101213, 104728, 106202, 220057, 220057a, 253088, 458505, 0001107091, 0001107097, 0001107109, 0001107110, 0001107111, 7773763, 8018880, 11018880, 42022111, 46451529, 46748349, 46748350, 46821681, 51776205, 51832956, 51868757, 55193407, 55832956, 318083092, 0986018880, 063111017010, 063521070910, 063521070970, 944280188800

  • Passar modeller
    Fiat Model: Brava Model series: Brava Model type: 16V (182.BB) Size of motor: 1.6 Brand of engine: 182A4.000 Type description: 182_ Body: Hatchback Fuel: Petrol Approved: Yes
    Fiat Model: Brava Model series: Brava Model type: SX Type of engine: 16V Size of motor: 1.6 Brand of engine: 182A4.000 Body: Hatchback From date: 01-02-1996 To date: 01-10-2001 Fuel: Gasoline Approved: Yes
    Fiat Model: Bravo Model series: Bravo Model type: SX Size of motor: 1.6 Brand of engine: 182A4.000 Body: Hatchback From date: 01-03-1996 To date: 01-10-2001 Fuel: Gasoline Approved: Yes
    Fiat Model: Bravo Model series: Bravo Size of motor: 1.6 Brand of engine: 182A6.000 Body: Hatchback From date: 01-10-1995 To date: 01-10-2001 Fuel: Gasoline Approved: Yes
    Fiat Model: Doblo Model series: Doblo Box Body/MPV Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 223_ Body: Box Body/MPV From date: 01-11-2001 To date: 01-08-2003 Fuel: Petrol Approved: Yes
    Fiat Model: Doblo Model series: Doblo Monocab Model type: Natural Power Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 223_ Body: Box Body / Estate From date: 01-02-2004 To date: 01-07-2009 Fuel: CNG Approved: Yes
    Fiat Model: Doblo Model series: Doblo MPV Model type: Natural Power Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 119_, 223_ Body: MPV From date: 01-11-2005 To date: 01-07-2009 Fuel: CNG Approved: Yes
    Fiat Model: Doblo Model series: Doblo Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 119, 223 Body: MPV From date: 01-09-2002 Fuel: Gasoline Approved: Yes
    Fiat Model: Doblo Model series: Doblo Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 223 Body: Van From date: 01-09-2002 Fuel: Gasoline Approved: Yes Manufacture type: Cargo
    Fiat Model: Doblo Model series: Doblo Type of engine: i.e. 16V Size of motor: 1.6 Brand of engine: 182B6.000 Body: MPV From date: 01-10-2001 Fuel: Gasoline Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: i.e. 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 223 Body: Van From date: 01-10-2001 Fuel: Gasoline Approved: Yes Manufacture type: Cargo
    Fiat Model: Marea Model series: Marea Type of engine: 16V Bipower Size of motor: 1.6 Brand of engine: 185A3.000 Type description: 185_ From date: 01-04-1999 To date: 01-05-2002 Fuel: Gasoline Approved: Yes
    Fiat Model: Marea Model series: Marea Type of engine: 16V Bipower Size of motor: 1.6 Brand of engine: 186A4.000 Type description: 185_ From date: 01-04-1999 To date: 01-05-2002 Fuel: Gasoline Approved: Yes
    Fiat Model: Marea Model series: Marea Type of engine: i 16V Size of motor: 1.6 Brand of engine: 182A4.000 Type description: 185_ Body: Estate From date: 01-09-1996 To date: 01-05-2002 Fuel: Gasoline Approved: Yes Manufacture type: weekend
    Fiat Model: Marea Model series: Marea Type of engine: i 16V Size of motor: 1.6 Brand of engine: 182A4.000 Type description: 185_ From date: 01-09-1996 To date: 01-05-2002 Fuel: Gasoline Approved: Yes
    Fiat Model: Multipla Model series: Multipla Model type: Blupower Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186 Body: MPV From date: 01-04-2002 To date: 01-06-2010 Fuel: Gas Approved: Yes
    Fiat Model: Multipla Model series: Multipla Model type: Blupower Type of engine: 16V Size of motor: 1.6 Brand of engine: 186A3.000 Body: MPV From date: 01-04-1999 To date: 01-06-2010 Fuel: Gas Approved: Yes
    Fiat Model: Multipla Model series: Multipla Model type: GPL Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186 Body: MPV From date: 01-10-2001 To date: 01-06-2010 Fuel: Bi-Fuel Approved: Yes
    Fiat Model: Multipla Model series: Multipla Model type: Natural Power Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186_ Body: MPV From date: 01-11-2008 To date: 01-06-2010 Fuel: LNG Approved: Yes
    Fiat Model: Multipla Model series: Multipla Type of engine: 16V Bipower Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186 Body: MPV From date: 01-10-2001 To date: 01-06-2010 Fuel: Gasoline/gas Approved: Yes
    Fiat Model: Multipla Model series: Multipla Type of engine: 16V Bipower Size of motor: 1.6 Brand of engine: 186A4.000 Type description: 186 Body: MPV From date: 01-04-1999 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Fiat Model: Multipla Model series: Multipla Type of engine: 16V Size of motor: 1.6 Brand of engine: 182A4.000 Type description: 186 Body: MPV From date: 01-04-1999 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Fiat Model: Multipla Van Model series: Multipla Van Model type: Bipower Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186_ Body: Van From date: 01-10-2001 To date: 01-06-2010 Fuel: Petrol/Ethanol Approved: Yes
    Fiat Model: Multipla Van Model series: Multipla Van Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186_ Body: Van From date: 01-09-2000 To date: 01-06-2010 Fuel: Petrol Approved: Yes
    Fiat Model: Palio Model series: Palio Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 178DYC1A06 Body: Estate From date: 01-02-2001 To date: 01-01-2012 Fuel: Gasoline Approved: Yes Manufacture type: weekend
    Fiat Model: Palio Model series: Palio Weekend Size of motor: 1.6 Brand of engine: 178D2.011 Type description: 178_, 173_, 373_, 374_, 171_ Body: Estate Fuel: Petrol Approved: Yes Manufacture type: Weekend
    Fiat Model: Stilo Model series: Stilo Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Body: Estate From date: 01-01-2003 To date: 01-08-2008 Fuel: Gasoline Approved: Yes Manufacture type: MULTI WAGO
    Fiat Model: Stilo Model series: Stilo Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 192(192_XB1A) Body: Hatchback From date: 01-10-2001 To date: 01-11-2006 Fuel: Gasoline Approved: Yes
    Lancia Model: Lybra Model series: Lybra Type of engine: 16V Size of motor: 1.6 Brand of engine: 182A4.000 Body: Estate From date: 01-07-1999 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    Lancia Model: Lybra Model series: Lybra Type of engine: 16V Size of motor: 1.6 Brand of engine: 182A4.000 From date: 01-07-1999 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    1 / 6
  • Beskrivelse
    Spenning: 12
    kW: 1.1
    Montering.flens: 66,00
    Drivningsavstand: 12,00
    Monteringshull 3 mm: 11,00
    Avstand/bak: 165,00
    Avstand/frem: 45,00
    Nr./tenner: 9
    B+: M8
    Posisjon/B+: 60
    Posisjon/50: 17
    Terminal 50: M6
    Gavel type: GR
    Avstand 2: 72,00
    Avstand 3: 73,00
    Avstand mm: 105,00
    Rotasjon: med urviseren
    Total lengde mm: 210,00
    Nr./monteringshull: 3 (2)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 66.00
    No./mount. holes 3 (2)
    Position/50 17
    Position/B+ 60
    Dist. 2 72.00
    Dist. 3 73.00
    Rotation CW
    Dist./back 165.00
    Dist./front 45.00
    Drive dist. 12.00
    Gear type GR
    kW 1.1
    Terminal 50 M6
    Voltage 12
    Total length 210.00 mm
    Dist. 105.00 mm
    Mount. hole 3 11.00 mm
  • Kjøretøymatching

    • OEM
      CS1213, F032116336, 1986S00663, 0001107091, 0001107097, 0001107109, 0001107110, 0001107111, 7773763, 46451529, 46748349, 46748350, 46821681, 51776205, 51832956, 51868757, 55193407, 55832956

    • Konkurrentreferens
      DRS8880, DRS8880X, LRS01582, S0524, 8EA012526-621, 25-3088, 318.083.092, 3013, 32579R, 32582N, 101213, 104728, 106202, 220057, 220057A, 458505, 8018880, 11018880, 42022111, 0986018880, 063111017010, 063521070910, 063521070970, 944280188800

    • NormaliseratArtNr
      cs1213, drs8880, drs8880x, f032116336, lrs01582, s0524, 8ea012526621, 1986s00663, 3013, 32579r, 32582n, 101213, 104728, 106202, 220057, 220057a, 253088, 458505, 0001107091, 0001107097, 0001107109, 0001107110, 0001107111, 7773763, 8018880, 11018880, 42022111, 46451529, 46748349, 46748350, 46821681, 51776205, 51832956, 51868757, 55193407, 55832956, 318083092, 0986018880, 063111017010, 063521070910, 063521070970, 944280188800

    • Passar modeller
      Fiat Model: Brava Model series: Brava Model type: 16V (182.BB) Size of motor: 1.6 Brand of engine: 182A4.000 Type description: 182_ Body: Hatchback Fuel: Petrol Approved: Yes
      Fiat Model: Brava Model series: Brava Model type: SX Type of engine: 16V Size of motor: 1.6 Brand of engine: 182A4.000 Body: Hatchback From date: 01-02-1996 To date: 01-10-2001 Fuel: Gasoline Approved: Yes
      Fiat Model: Bravo Model series: Bravo Model type: SX Size of motor: 1.6 Brand of engine: 182A4.000 Body: Hatchback From date: 01-03-1996 To date: 01-10-2001 Fuel: Gasoline Approved: Yes
      Fiat Model: Bravo Model series: Bravo Size of motor: 1.6 Brand of engine: 182A6.000 Body: Hatchback From date: 01-10-1995 To date: 01-10-2001 Fuel: Gasoline Approved: Yes
      Fiat Model: Doblo Model series: Doblo Box Body/MPV Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 223_ Body: Box Body/MPV From date: 01-11-2001 To date: 01-08-2003 Fuel: Petrol Approved: Yes
      Fiat Model: Doblo Model series: Doblo Monocab Model type: Natural Power Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 223_ Body: Box Body / Estate From date: 01-02-2004 To date: 01-07-2009 Fuel: CNG Approved: Yes
      Fiat Model: Doblo Model series: Doblo MPV Model type: Natural Power Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 119_, 223_ Body: MPV From date: 01-11-2005 To date: 01-07-2009 Fuel: CNG Approved: Yes
      Fiat Model: Doblo Model series: Doblo Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 119, 223 Body: MPV From date: 01-09-2002 Fuel: Gasoline Approved: Yes
      Fiat Model: Doblo Model series: Doblo Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 223 Body: Van From date: 01-09-2002 Fuel: Gasoline Approved: Yes Manufacture type: Cargo
      Fiat Model: Doblo Model series: Doblo Type of engine: i.e. 16V Size of motor: 1.6 Brand of engine: 182B6.000 Body: MPV From date: 01-10-2001 Fuel: Gasoline Approved: Yes
      Fiat Model: Doblo Model series: Doblo Type of engine: i.e. 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 223 Body: Van From date: 01-10-2001 Fuel: Gasoline Approved: Yes Manufacture type: Cargo
      Fiat Model: Marea Model series: Marea Type of engine: 16V Bipower Size of motor: 1.6 Brand of engine: 185A3.000 Type description: 185_ From date: 01-04-1999 To date: 01-05-2002 Fuel: Gasoline Approved: Yes
      Fiat Model: Marea Model series: Marea Type of engine: 16V Bipower Size of motor: 1.6 Brand of engine: 186A4.000 Type description: 185_ From date: 01-04-1999 To date: 01-05-2002 Fuel: Gasoline Approved: Yes
      Fiat Model: Marea Model series: Marea Type of engine: i 16V Size of motor: 1.6 Brand of engine: 182A4.000 Type description: 185_ Body: Estate From date: 01-09-1996 To date: 01-05-2002 Fuel: Gasoline Approved: Yes Manufacture type: weekend
      Fiat Model: Marea Model series: Marea Type of engine: i 16V Size of motor: 1.6 Brand of engine: 182A4.000 Type description: 185_ From date: 01-09-1996 To date: 01-05-2002 Fuel: Gasoline Approved: Yes
      Fiat Model: Multipla Model series: Multipla Model type: Blupower Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186 Body: MPV From date: 01-04-2002 To date: 01-06-2010 Fuel: Gas Approved: Yes
      Fiat Model: Multipla Model series: Multipla Model type: Blupower Type of engine: 16V Size of motor: 1.6 Brand of engine: 186A3.000 Body: MPV From date: 01-04-1999 To date: 01-06-2010 Fuel: Gas Approved: Yes
      Fiat Model: Multipla Model series: Multipla Model type: GPL Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186 Body: MPV From date: 01-10-2001 To date: 01-06-2010 Fuel: Bi-Fuel Approved: Yes
      Fiat Model: Multipla Model series: Multipla Model type: Natural Power Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186_ Body: MPV From date: 01-11-2008 To date: 01-06-2010 Fuel: LNG Approved: Yes
      Fiat Model: Multipla Model series: Multipla Type of engine: 16V Bipower Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186 Body: MPV From date: 01-10-2001 To date: 01-06-2010 Fuel: Gasoline/gas Approved: Yes
      Fiat Model: Multipla Model series: Multipla Type of engine: 16V Bipower Size of motor: 1.6 Brand of engine: 186A4.000 Type description: 186 Body: MPV From date: 01-04-1999 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Fiat Model: Multipla Model series: Multipla Type of engine: 16V Size of motor: 1.6 Brand of engine: 182A4.000 Type description: 186 Body: MPV From date: 01-04-1999 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Fiat Model: Multipla Van Model series: Multipla Van Model type: Bipower Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186_ Body: Van From date: 01-10-2001 To date: 01-06-2010 Fuel: Petrol/Ethanol Approved: Yes
      Fiat Model: Multipla Van Model series: Multipla Van Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186_ Body: Van From date: 01-09-2000 To date: 01-06-2010 Fuel: Petrol Approved: Yes
      Fiat Model: Palio Model series: Palio Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 178DYC1A06 Body: Estate From date: 01-02-2001 To date: 01-01-2012 Fuel: Gasoline Approved: Yes Manufacture type: weekend
      Fiat Model: Palio Model series: Palio Weekend Size of motor: 1.6 Brand of engine: 178D2.011 Type description: 178_, 173_, 373_, 374_, 171_ Body: Estate Fuel: Petrol Approved: Yes Manufacture type: Weekend
      Fiat Model: Stilo Model series: Stilo Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Body: Estate From date: 01-01-2003 To date: 01-08-2008 Fuel: Gasoline Approved: Yes Manufacture type: MULTI WAGO
      Fiat Model: Stilo Model series: Stilo Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 192(192_XB1A) Body: Hatchback From date: 01-10-2001 To date: 01-11-2006 Fuel: Gasoline Approved: Yes
      Lancia Model: Lybra Model series: Lybra Type of engine: 16V Size of motor: 1.6 Brand of engine: 182A4.000 Body: Estate From date: 01-07-1999 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
      Lancia Model: Lybra Model series: Lybra Type of engine: 16V Size of motor: 1.6 Brand of engine: 182A4.000 From date: 01-07-1999 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
      1 / 6
