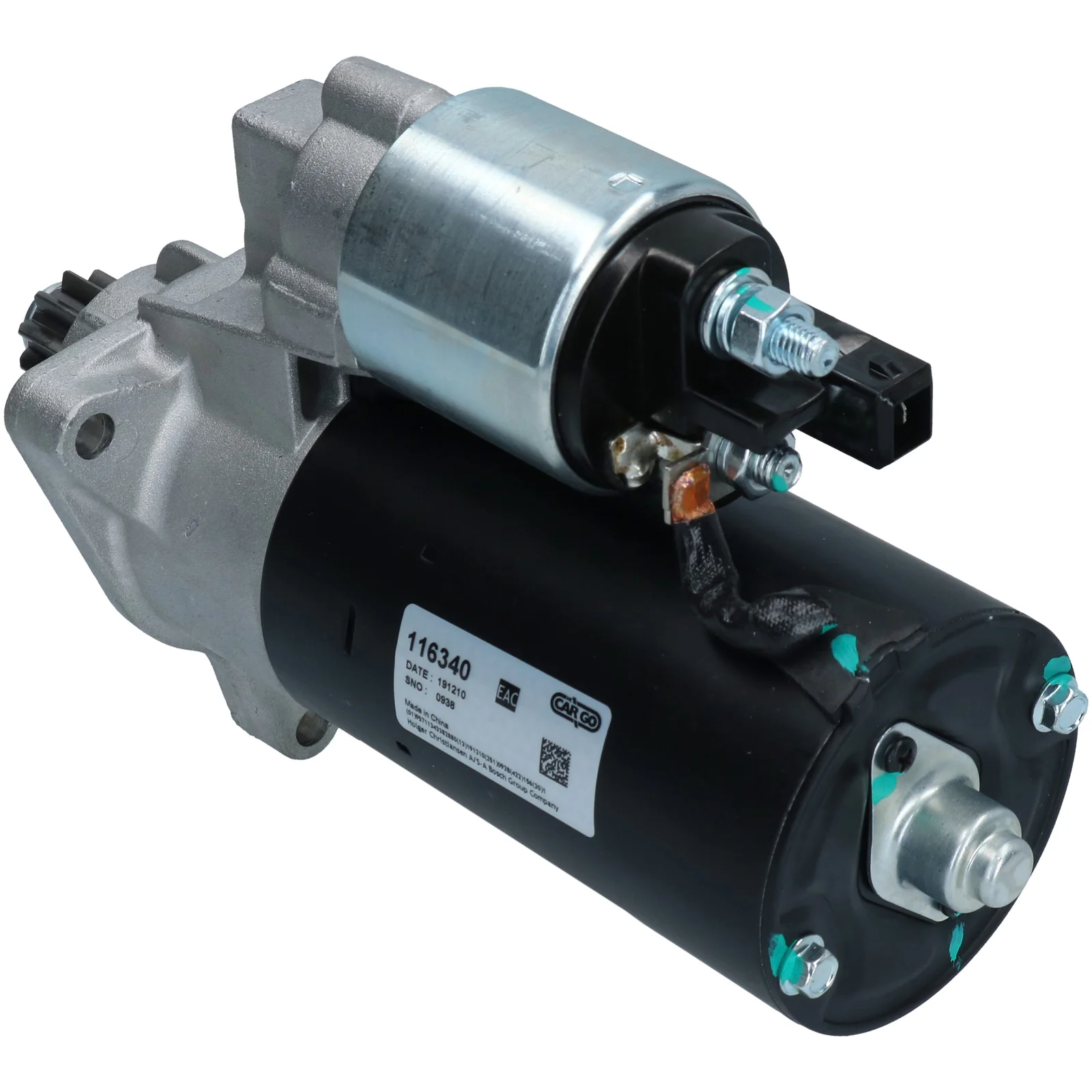

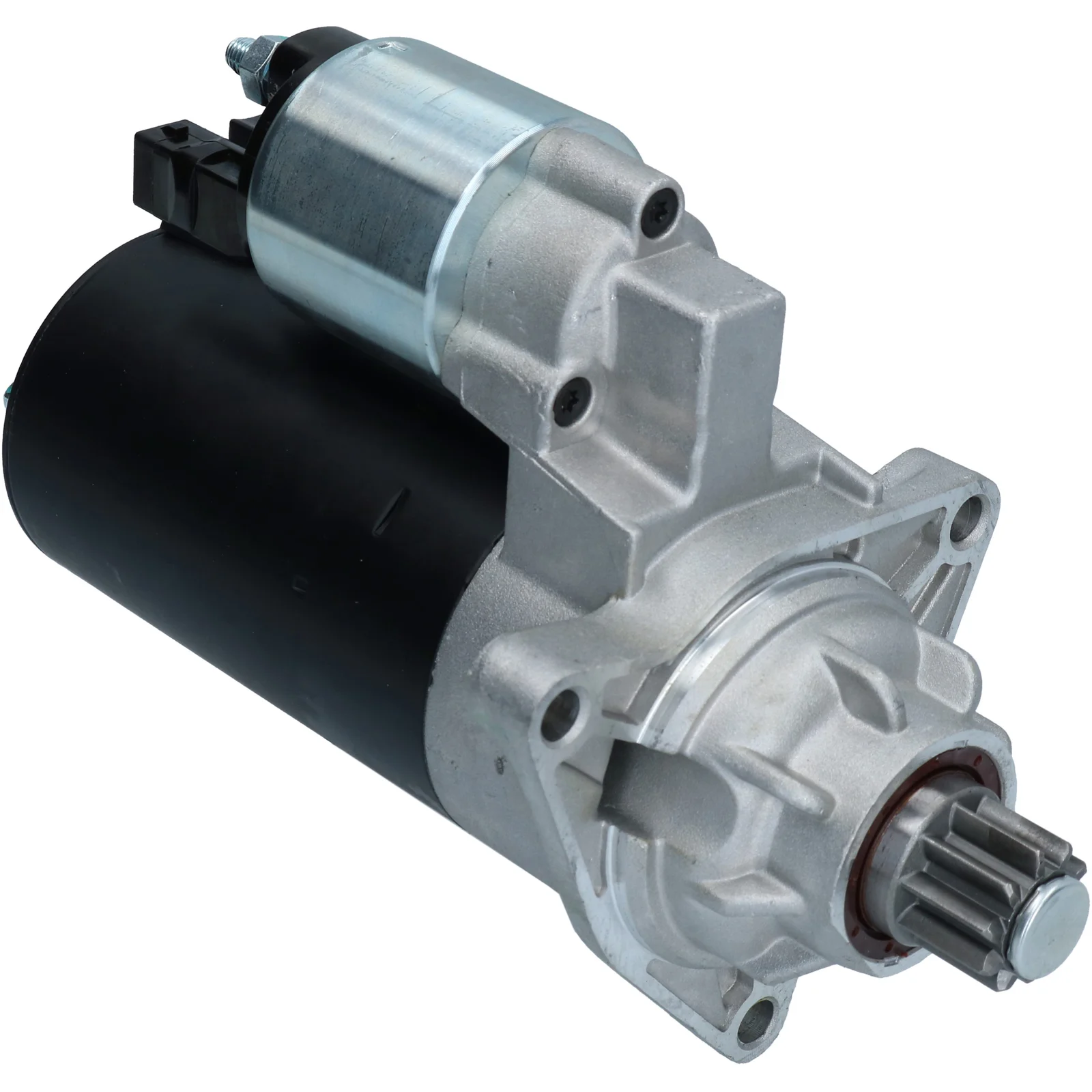

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116340

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 2.0, Nr./tenner: 10, Rotasjon: VNDūras klokkeretningen

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 2.0
Festebraktning: 76,20
Dreiing avstand: 62,00
Festebore 3 mm: 9,00
Festebore 2 mm: 9,00
Festebore 1 mm: 9,00
Avstand/bak: 179,00
Avstand/fram: 66,00
Nummer/tannhjul: 10
B+: M8
Posisjon/B+: 60
Posisjon/50: 20
Terminal 50: Plugg
Girtype: GR
Avstand 2: 106,00
Avstand 3: 101,50
Avstand mm: 101,50
Rotasjon: VCC
Total lengde mm: 255,00
Nummer/festeboringer: 3 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 76.20
No./mount. holes 3 (0)
Position/50 20
Position/B+ 60
Dist. 2 106.00
Dist. 3 101.50
Rotation CCW
Dist./back 179.00
Dist./front 66.00
Drive dist. 62.00
Gear type GR
kW 2.0
Terminal 50 Plug
Voltage 12
Total length 255.00 mm
Dist. 101.50 mm
Mount. hole 3 9.00 mm
Mount. hole 2 9.00 mm
Mount. hole 1 9.00 mm

  • OEM
    F032116340, 02b911023e, 02B911023EX, 02B911023M, 02B911023MX, 1986S00811, 0001125016, 0001125017, 0001125046, 0001125047, 1516691R

  • Konkurrentreferens
    CST10286, DRS3823, LRS01564, S0212, 8EA737892-001, 25-3063, 311.070.102, 3112, 32564N, 101209, 104785, 460223, 8080205, 8212530, 11090032, 42021870, 0986021870

  • NormaliseratArtNr
    cst10286, drs3823, f032116340, lrs01564, s0212, 02b911023e, 02b911023ex, 02b911023m, 02b911023mx, 8ea737892001, 1986s00811, 3112, 32564n, 101209, 104785, 253063, 460223, 0001125016, 0001125017, 0001125046, 0001125047, 1516691r, 8080205, 8212530, 11090032, 42021870, 311070102, 0986021870

  • Passar modeller
    VW Model: California Model series: California T4 Camper Model type: VR6 Size of motor: 2.8 Brand of engine: AMV Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-05-2000 To date: 01-04-2001 Fuel: Petrol Approved: Yes
    VW Model: California Model series: California T4 Camper Type of engine: TDI Size of motor: 2.5 Brand of engine: AXG, AHY Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-07-1999 To date: 01-04-2003 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHY Body: Bus From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AXG Body: Bus From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AXG Type description: 70XA Body: Van From date: 01-09-2000 To date: 01-04-2003 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: V6 Size of motor: 2.8 Brand of engine: AMV Type description: 70XB,70XC,7DB,7DW Body: Bus From date: 01-04-2000 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 12
    kW: 2.0
    Festebraktning: 76,20
    Dreiing avstand: 62,00
    Festebore 3 mm: 9,00
    Festebore 2 mm: 9,00
    Festebore 1 mm: 9,00
    Avstand/bak: 179,00
    Avstand/fram: 66,00
    Nummer/tannhjul: 10
    B+: M8
    Posisjon/B+: 60
    Posisjon/50: 20
    Terminal 50: Plugg
    Girtype: GR
    Avstand 2: 106,00
    Avstand 3: 101,50
    Avstand mm: 101,50
    Rotasjon: VCC
    Total lengde mm: 255,00
    Nummer/festeboringer: 3 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 10
    Mount. flange 76.20
    No./mount. holes 3 (0)
    Position/50 20
    Position/B+ 60
    Dist. 2 106.00
    Dist. 3 101.50
    Rotation CCW
    Dist./back 179.00
    Dist./front 66.00
    Drive dist. 62.00
    Gear type GR
    kW 2.0
    Terminal 50 Plug
    Voltage 12
    Total length 255.00 mm
    Dist. 101.50 mm
    Mount. hole 3 9.00 mm
    Mount. hole 2 9.00 mm
    Mount. hole 1 9.00 mm
  • Kjøretøymatching

    • OEM
      F032116340, 02b911023e, 02B911023EX, 02B911023M, 02B911023MX, 1986S00811, 0001125016, 0001125017, 0001125046, 0001125047, 1516691R

    • Konkurrentreferens
      CST10286, DRS3823, LRS01564, S0212, 8EA737892-001, 25-3063, 311.070.102, 3112, 32564N, 101209, 104785, 460223, 8080205, 8212530, 11090032, 42021870, 0986021870

    • NormaliseratArtNr
      cst10286, drs3823, f032116340, lrs01564, s0212, 02b911023e, 02b911023ex, 02b911023m, 02b911023mx, 8ea737892001, 1986s00811, 3112, 32564n, 101209, 104785, 253063, 460223, 0001125016, 0001125017, 0001125046, 0001125047, 1516691r, 8080205, 8212530, 11090032, 42021870, 311070102, 0986021870

    • Passar modeller
      VW Model: California Model series: California T4 Camper Model type: VR6 Size of motor: 2.8 Brand of engine: AMV Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-05-2000 To date: 01-04-2001 Fuel: Petrol Approved: Yes
      VW Model: California Model series: California T4 Camper Type of engine: TDI Size of motor: 2.5 Brand of engine: AXG, AHY Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-07-1999 To date: 01-04-2003 Fuel: Diesel Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHY Body: Bus From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AXG Body: Bus From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AXG Type description: 70XA Body: Van From date: 01-09-2000 To date: 01-04-2003 Fuel: Diesel Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: V6 Size of motor: 2.8 Brand of engine: AMV Type description: 70XB,70XC,7DB,7DW Body: Bus From date: 01-04-2000 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
      1 / 2
