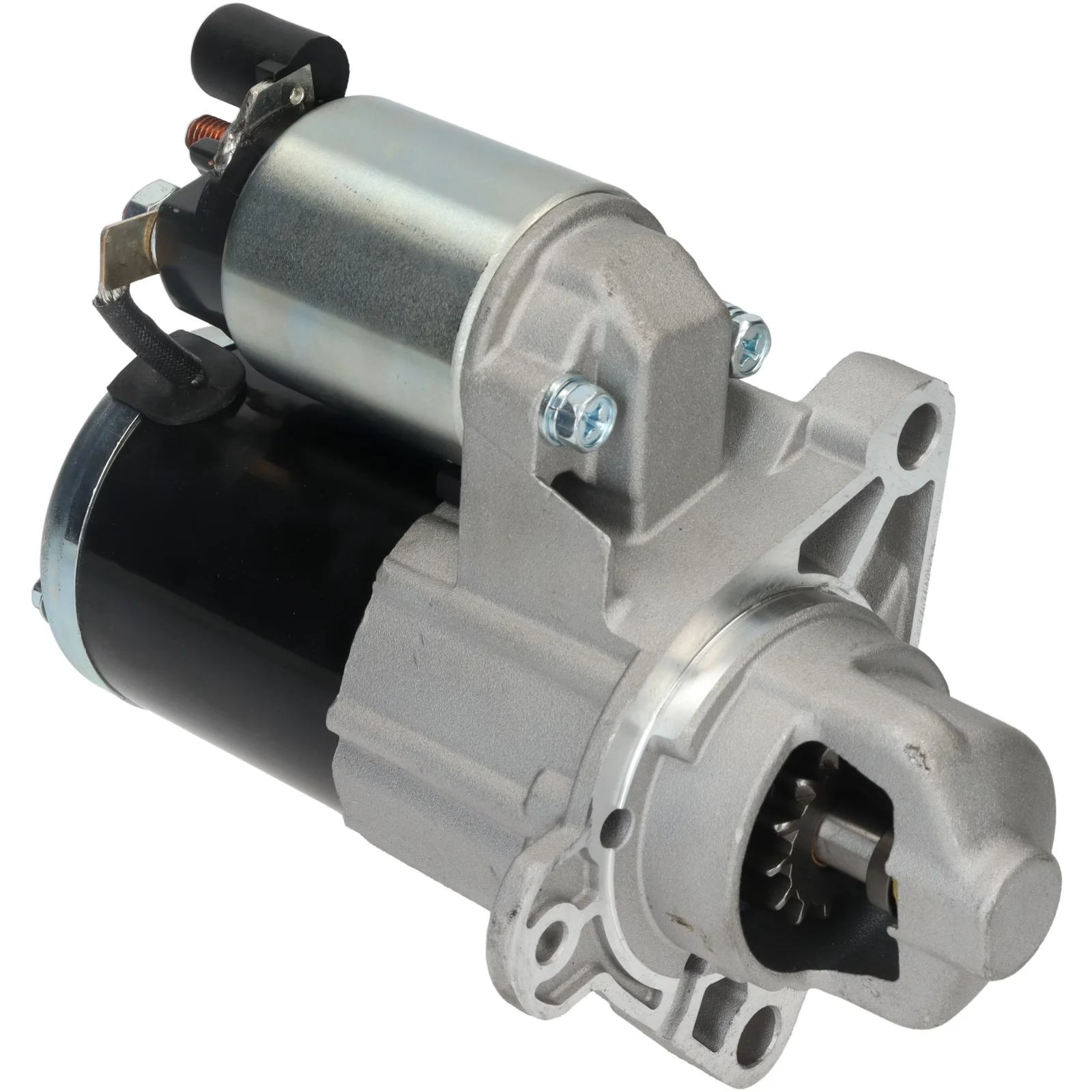

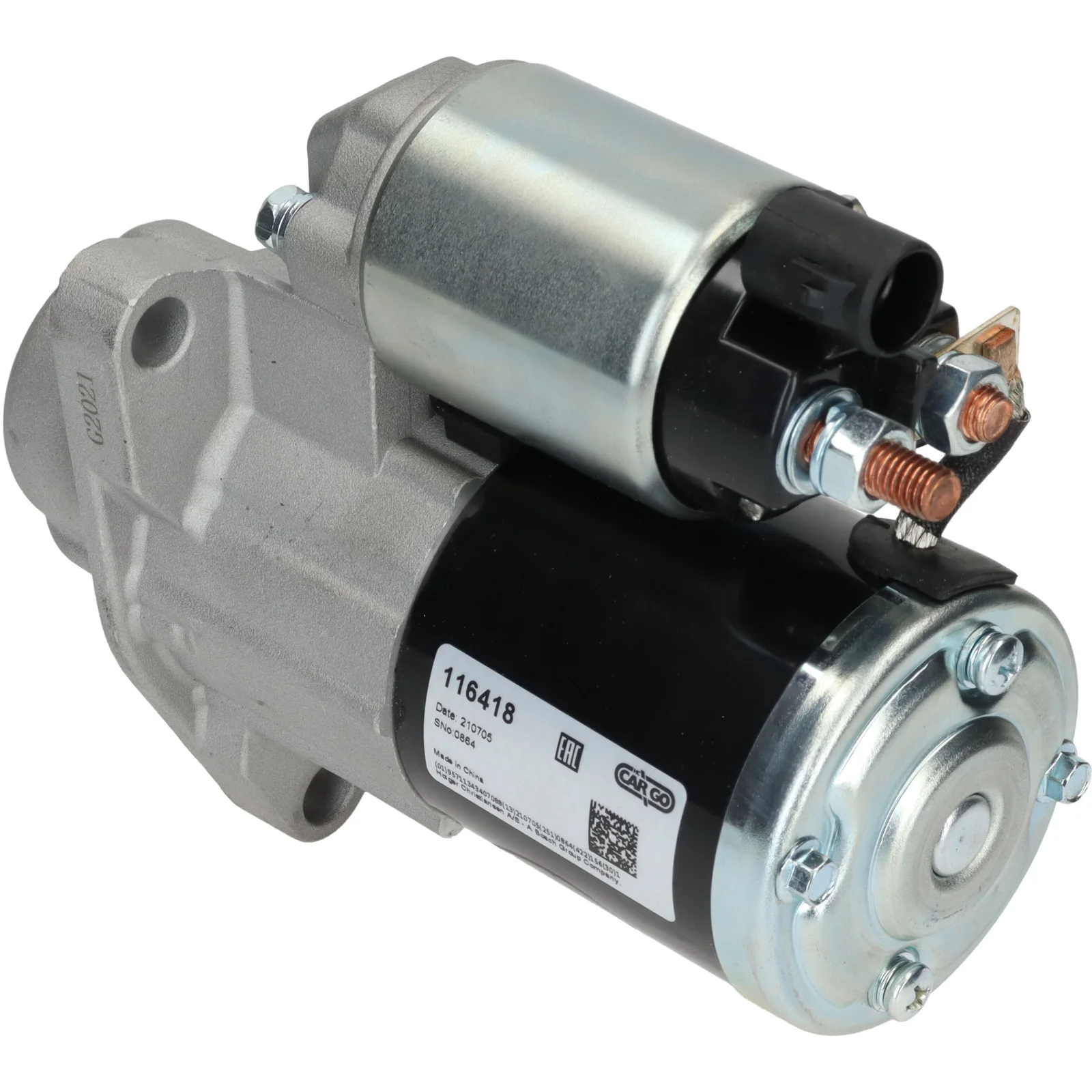

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116418

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 1.4, Antall/tann: 13, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsverdi: 12
kW: 1.4
Monteringsflens: 68.00
Drevet avstand: 21.00
Monteringshull 2 mm: 10.50
Monteringshull 1 mm: 10.50
Antall/tænder: 13
B+: M8
Posisjon/B+: 45
Posisjon/50: 60
Terminal 50: Kontakt
Girtype: GR
Drevet avstand mm: 107.50
Rotasjon: medur (CW)
Total lengde mm: 195.00
Antall/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 13
Mount. flange 68.00
No./mount. holes 2 (0)
Position/50 60
Position/B+ 45
Rotation CW
Drive dist. 21.00
Gear type GR
kW 1.4
Terminal 50 Plug
Voltage 12
Total length 195.00 mm
Dist. 107.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    F032116418, M000T39971, M000T39971ZC, M0T39971, M0T39971ZC, 1986S01056, 0001170656, 0001170657, 0001170674, 0001170675, 1202371, 1202526, 12638692, 12686197, 55491603, 55496055, 55502420, 55503728, 55503729, 55506642, 95520362, 95521367, 95523406, 95526714, 95527121, 183117860

  • Konkurrentreferens
    CST35352, S0886S, S5439S, 25-5076, 130.571.132, 130.591.132, 220770, 220770A, 438550, 11090350, 42004000, 0986026820

  • NormaliseratArtNr
    cst35352, f032116418, m000t39971, m000t39971zc, m0t39971, m0t39971zc, s0886s, s5439s, 1986s01056, 220770, 220770a, 255076, 438550, 0001170656, 0001170657, 0001170674, 0001170675, 1202371, 1202526, 11090350, 12638692, 12686197, 42004000, 55491603, 55496055, 55502420, 55503728, 55503729, 55506642, 95520362, 95521367, 95523406, 95526714, 95527121, 130571132, 130591132, 183117860, 0986026820

  • Passar modeller
    Opel Model: Astra Model series: Astra K Size of motor: 1.0 Brand of engine: D10XFL Body: Van From date: 01-05-2018 Fuel: Petrol Approved: Yes Manufacture type: Estate
    Opel Model: Astra Model series: Astra K Sports Tourer Type of engine: Turbo Size of motor: 1.0 Brand of engine: D10XFL Type description: B16 Body: Estate From date: 01-06-2018 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
    Opel Model: Astra Model series: Astra K Type of engine: Turbo Size of motor: 1.0 Brand of engine: D10XFL Type description: B16 Body: Hatchback From date: 01-06-2018 Fuel: Gasoline Approved: Yes
    Opel Model: Karl Model series: Karl Size of motor: 1.0 Brand of engine: D10XE Type description: C16 Body: Hatchback From date: 01-01-2018 To date: 01-03-2019 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Viva Model series: Viva Model type: C16 Size of motor: 1.0 Brand of engine: D10XE Type description: C16 Body: Hatchback From date: 01-01-2018 To date: 01-03-2019 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Viva Model series: Viva Type of engine: LPG Size of motor: 1.0 Brand of engine: B10XE Type description: C16 Body: Hatchback From date: 01-06-2015 To date: 01-03-2018 Fuel: Electric/Gasoline Approved: Yes
    Vauxhall Model: Viva Model series: Viva Type of engine: LPG Size of motor: 1.0 Brand of engine: B10XL Type description: C16 Body: Hatchback From date: 01-06-2015 To date: 01-03-2018 Fuel: Electric/Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsverdi: 12
    kW: 1.4
    Monteringsflens: 68.00
    Drevet avstand: 21.00
    Monteringshull 2 mm: 10.50
    Monteringshull 1 mm: 10.50
    Antall/tænder: 13
    B+: M8
    Posisjon/B+: 45
    Posisjon/50: 60
    Terminal 50: Kontakt
    Girtype: GR
    Drevet avstand mm: 107.50
    Rotasjon: medur (CW)
    Total lengde mm: 195.00
    Antall/monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 13
    Mount. flange 68.00
    No./mount. holes 2 (0)
    Position/50 60
    Position/B+ 45
    Rotation CW
    Drive dist. 21.00
    Gear type GR
    kW 1.4
    Terminal 50 Plug
    Voltage 12
    Total length 195.00 mm
    Dist. 107.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Kjøretøymatching

    • OEM
      F032116418, M000T39971, M000T39971ZC, M0T39971, M0T39971ZC, 1986S01056, 0001170656, 0001170657, 0001170674, 0001170675, 1202371, 1202526, 12638692, 12686197, 55491603, 55496055, 55502420, 55503728, 55503729, 55506642, 95520362, 95521367, 95523406, 95526714, 95527121, 183117860

    • Konkurrentreferens
      CST35352, S0886S, S5439S, 25-5076, 130.571.132, 130.591.132, 220770, 220770A, 438550, 11090350, 42004000, 0986026820

    • NormaliseratArtNr
      cst35352, f032116418, m000t39971, m000t39971zc, m0t39971, m0t39971zc, s0886s, s5439s, 1986s01056, 220770, 220770a, 255076, 438550, 0001170656, 0001170657, 0001170674, 0001170675, 1202371, 1202526, 11090350, 12638692, 12686197, 42004000, 55491603, 55496055, 55502420, 55503728, 55503729, 55506642, 95520362, 95521367, 95523406, 95526714, 95527121, 130571132, 130591132, 183117860, 0986026820

    • Passar modeller
      Opel Model: Astra Model series: Astra K Size of motor: 1.0 Brand of engine: D10XFL Body: Van From date: 01-05-2018 Fuel: Petrol Approved: Yes Manufacture type: Estate
      Opel Model: Astra Model series: Astra K Sports Tourer Type of engine: Turbo Size of motor: 1.0 Brand of engine: D10XFL Type description: B16 Body: Estate From date: 01-06-2018 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
      Opel Model: Astra Model series: Astra K Type of engine: Turbo Size of motor: 1.0 Brand of engine: D10XFL Type description: B16 Body: Hatchback From date: 01-06-2018 Fuel: Gasoline Approved: Yes
      Opel Model: Karl Model series: Karl Size of motor: 1.0 Brand of engine: D10XE Type description: C16 Body: Hatchback From date: 01-01-2018 To date: 01-03-2019 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Viva Model series: Viva Model type: C16 Size of motor: 1.0 Brand of engine: D10XE Type description: C16 Body: Hatchback From date: 01-01-2018 To date: 01-03-2019 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Viva Model series: Viva Type of engine: LPG Size of motor: 1.0 Brand of engine: B10XE Type description: C16 Body: Hatchback From date: 01-06-2015 To date: 01-03-2018 Fuel: Electric/Gasoline Approved: Yes
      Vauxhall Model: Viva Model series: Viva Type of engine: LPG Size of motor: 1.0 Brand of engine: B10XL Type description: C16 Body: Hatchback From date: 01-06-2015 To date: 01-03-2018 Fuel: Electric/Gasoline Approved: Yes
      1 / 2
