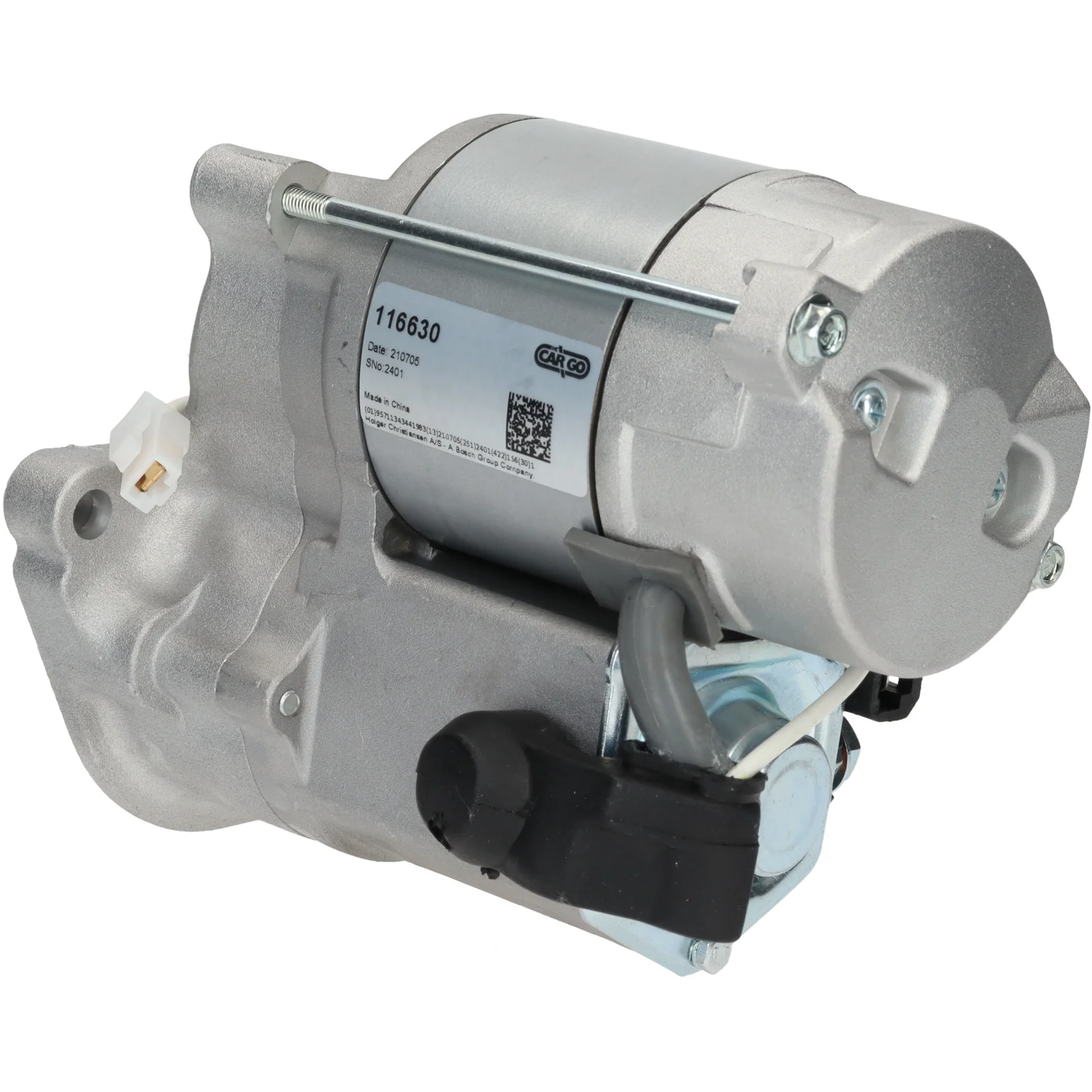

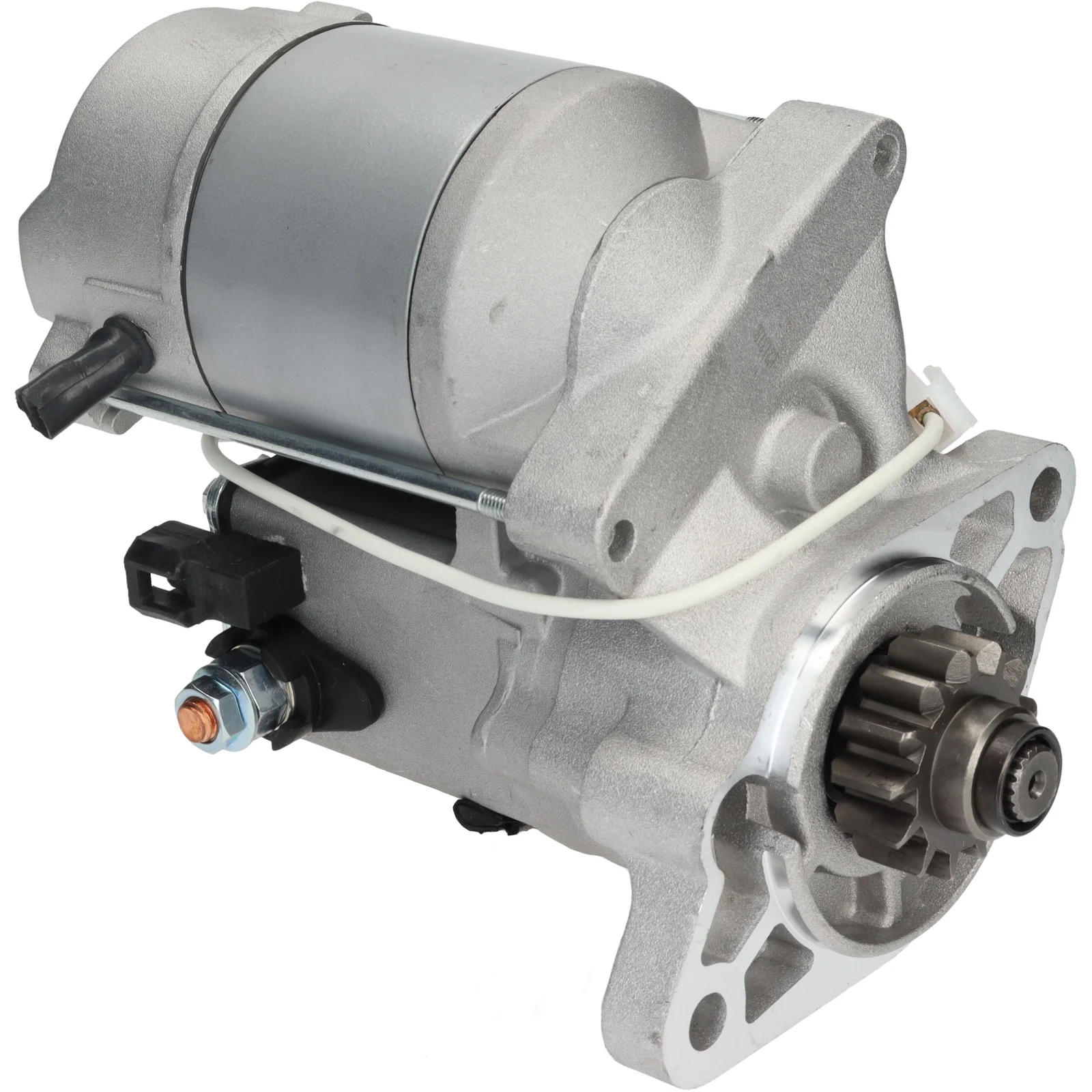

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116630

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 1.4, Antall/tann: 13, Rotasjon: CW

Beskrivelse

Kubota Startmotor 12V-1.4kW, 13k 12V - 1.4kW, 13k Alternativ: 91-293-8320 = (9 tannhjul) For Yourex produktordre 91-293-6320

Spenningsnivå: 12
kW: 1.4
Festebrakt: 66,00
Drivingsavstand: 18,00
Festeborhull 2 mm: 9,00
Festeborhull 1 mm: 9,00
Avstand/bak: 158,00
Avstand/frem: 31,00
Antall/tenner: 13
B+: M8
Posisjon/B+: 15
Posisjon/50: 10
Terminal 50: Plugg
Geværtype: GR
Avstand mm: 110,00
Rotasjon: medur → klokkegående
Total lengde mm: 189,00
Terminal 30h: Plugg
Posisjon/30h: 45
Antall/festeborhull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 13
Mount. flange 66.00
No./mount. holes 2 (0)
Position/30h 45
Position/50 10
Position/B+ 15
Rotation CW
Dist./back 158.00
Dist./front 31.00
Drive dist. 18.00
Gear type GR
kW 1.4
Terminal 50 Plug
Voltage 12
Total length 189.00 mm
Dist. 110.00 mm
Terminal 30H Plug mm
Mount. hole 2 9.00 mm
Mount. hole 1 9.00 mm

  • OEM
    F032116630, 16235-63010, 16235-63011, 16235-63012, 16235-63013, 16235-63014, 16235-63015, 17423-63010, 17423-63012, 228000-6320, 228000-6321, 228000-7610, 228000-7611

  • Konkurrentreferens
    CST40185, CST40506, DSN2087, LRS02308, S6277(DENSO), S6277S, 8EA015642-161, 25-3480, 254151, 11090220

  • Bilmärken
    Holder, Kramer, Kubota, Schäffer

  • NormaliseratArtNr
    cst40185, cst40506, dsn2087, f032116630, lrs02308, s6277denso, s6277s, 8ea015642161, 253480, 254151, 11090220, 1623563010, 1623563011, 1623563012, 1623563013, 1623563014, 1623563015, 1742363010, 1742363012, 2280006320, 2280006321, 2280007610, 2280007611

  • Passar modeller
    Holder Series: C Model: 2.34, 2.42, 3.42 Engine type: V-1505...
    Holder Series: C Model: 200, 230, 240 Engine type: V-1505...
    Holder Series: C Model: 330, 340 Engine type: V-1505 T Year: 01.97-
    Kramer Series: 118 Engine type: Kubota
    Kramer Series: 120 Engine type: Kubota
    Kubota Model: Engine Model series: Engine Brand of engine: D1105BH Approved: Yes
    Kubota Model: KX41-2 Model series: KX41-2 Model type: Minibagger Brand of engine: D1105BH From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
    Kubota Model: KX61-2 Model series: KX61-2 Model type: Minibagger Brand of engine: D1105BH From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
    Kubota Model: KX91-2 Model series: KX91-2 Model type: Excavators Brand of engine: V1505-E Approved: Yes
    Kubota Series: Excavator Model: KX 61-2
    Kubota Series: Motor Model: V 1505 BH
    Kubota Series: Motor Model: V 1505 KA
    Kubota Series: Traktor Model: BX 22
    Kubota Series: Traktor Model: BX 2200
    Schäffer Series: Lastare Model: 2336 Engine type: V-1505...
    Schäffer Series: Lastare Model: 2345 Engine type: V-1505...
    1 / 4
  • Beskrivelse
    Kubota Startmotor 12V-1.4kW, 13k 12V - 1.4kW, 13k Alternativ: 91-293-8320 = (9 tannhjul) For Yourex produktordre 91-293-6320

    Spenningsnivå: 12
    kW: 1.4
    Festebrakt: 66,00
    Drivingsavstand: 18,00
    Festeborhull 2 mm: 9,00
    Festeborhull 1 mm: 9,00
    Avstand/bak: 158,00
    Avstand/frem: 31,00
    Antall/tenner: 13
    B+: M8
    Posisjon/B+: 15
    Posisjon/50: 10
    Terminal 50: Plugg
    Geværtype: GR
    Avstand mm: 110,00
    Rotasjon: medur → klokkegående
    Total lengde mm: 189,00
    Terminal 30h: Plugg
    Posisjon/30h: 45
    Antall/festeborhull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 13
    Mount. flange 66.00
    No./mount. holes 2 (0)
    Position/30h 45
    Position/50 10
    Position/B+ 15
    Rotation CW
    Dist./back 158.00
    Dist./front 31.00
    Drive dist. 18.00
    Gear type GR
    kW 1.4
    Terminal 50 Plug
    Voltage 12
    Total length 189.00 mm
    Dist. 110.00 mm
    Terminal 30H Plug mm
    Mount. hole 2 9.00 mm
    Mount. hole 1 9.00 mm
  • Kjøretøymatching

    • OEM
      F032116630, 16235-63010, 16235-63011, 16235-63012, 16235-63013, 16235-63014, 16235-63015, 17423-63010, 17423-63012, 228000-6320, 228000-6321, 228000-7610, 228000-7611

    • Konkurrentreferens
      CST40185, CST40506, DSN2087, LRS02308, S6277(DENSO), S6277S, 8EA015642-161, 25-3480, 254151, 11090220

    • Bilmärken
      Holder, Kramer, Kubota, Schäffer

    • NormaliseratArtNr
      cst40185, cst40506, dsn2087, f032116630, lrs02308, s6277denso, s6277s, 8ea015642161, 253480, 254151, 11090220, 1623563010, 1623563011, 1623563012, 1623563013, 1623563014, 1623563015, 1742363010, 1742363012, 2280006320, 2280006321, 2280007610, 2280007611

    • Passar modeller
      Holder Series: C Model: 2.34, 2.42, 3.42 Engine type: V-1505...
      Holder Series: C Model: 200, 230, 240 Engine type: V-1505...
      Holder Series: C Model: 330, 340 Engine type: V-1505 T Year: 01.97-
      Kramer Series: 118 Engine type: Kubota
      Kramer Series: 120 Engine type: Kubota
      Kubota Model: Engine Model series: Engine Brand of engine: D1105BH Approved: Yes
      Kubota Model: KX41-2 Model series: KX41-2 Model type: Minibagger Brand of engine: D1105BH From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
      Kubota Model: KX61-2 Model series: KX61-2 Model type: Minibagger Brand of engine: D1105BH From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
      Kubota Model: KX91-2 Model series: KX91-2 Model type: Excavators Brand of engine: V1505-E Approved: Yes
      Kubota Series: Excavator Model: KX 61-2
      Kubota Series: Motor Model: V 1505 BH
      Kubota Series: Motor Model: V 1505 KA
      Kubota Series: Traktor Model: BX 22
      Kubota Series: Traktor Model: BX 2200
      Schäffer Series: Lastare Model: 2336 Engine type: V-1505...
      Schäffer Series: Lastare Model: 2345 Engine type: V-1505...
      1 / 4
