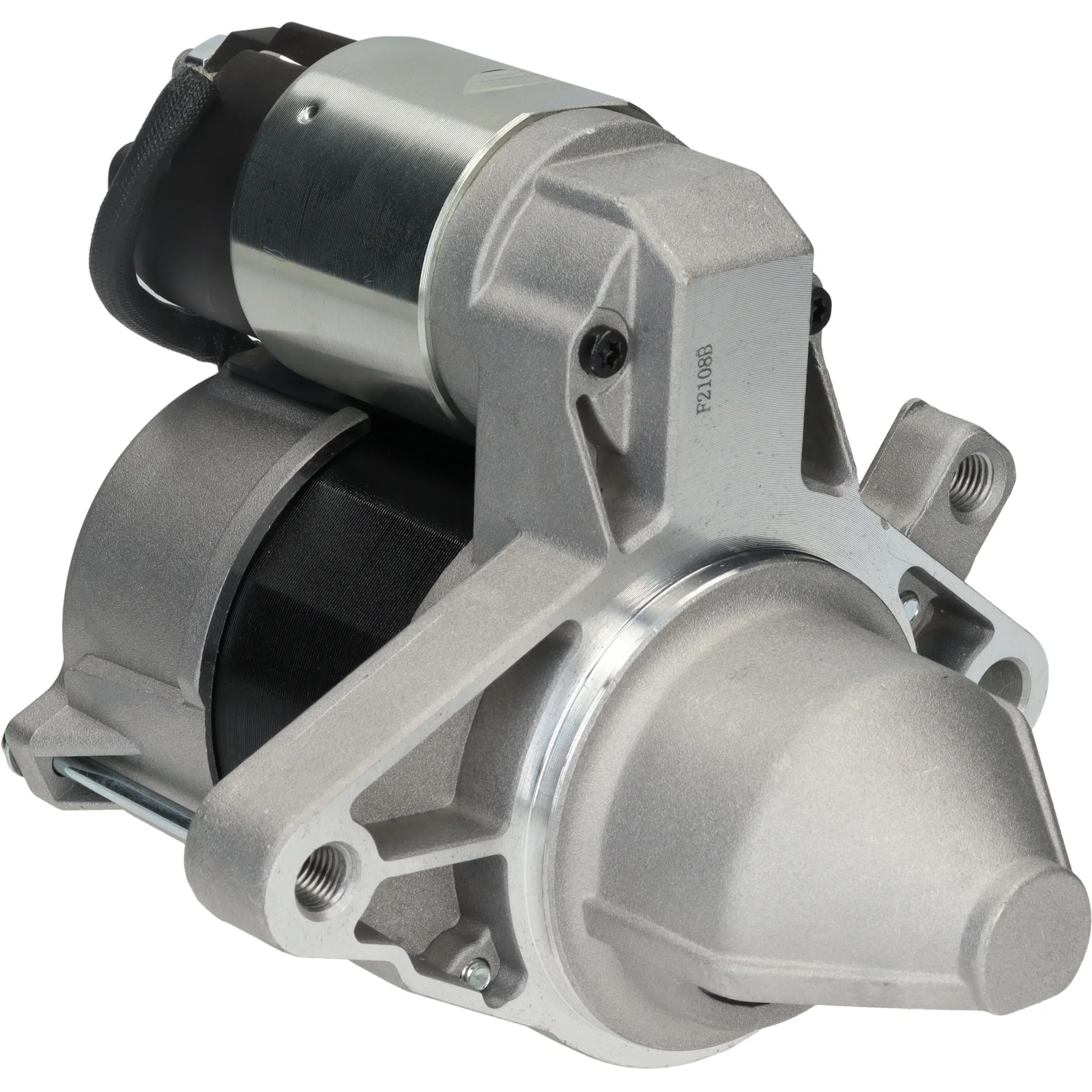

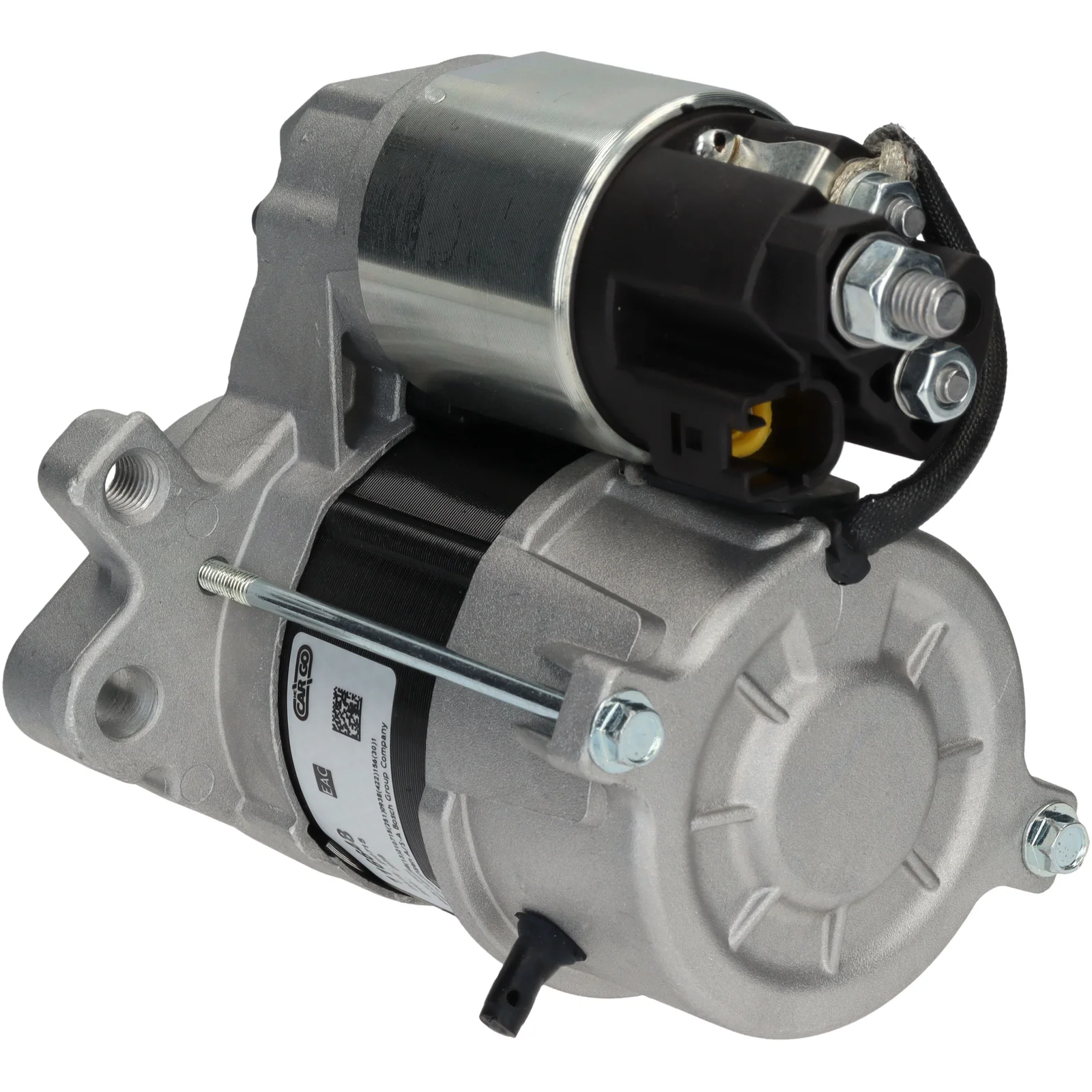

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116648

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, Kumulert effekt: 1,0 kW, Antall tennplugger/tenner: 9, Rotasjon: medur

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 1.0
Monteringsflens: 74.00
Driveavstand: 25.00
Monteringshull 1 mm: 11.00
Avstand/bak: 142.00
Avstand/frem: 61.50
Nummer/tänder: 9
B+: M8
Posisjon/B+: 53
Posisjon/50: 38
Terminal 50: Plugg
Girtype: DD
Avstand mm: 129.50
Rotasjon: med klokken
Total lengde mm: 204.00
Nummer/monteringshull: 2 (1)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 74.00
No./mount. holes 2 (1)
Position/50 38
Position/B+ 53
Rotation CW
Dist./back 142.00
Dist./front 61.50
Drive dist. 25.00
Gear type DD
kW 1.0
Terminal 50 Plug
Voltage 12
Total length 204.00 mm
Dist. 129.50 mm
Mount. hole 1 11.00 mm

  • OEM
    ESW10E1, F032116648, 28100-0Q090, 1612092880, 1637179880

  • Konkurrentreferens
    CST15305, S3222S, 25-5066, 220.537.102, 438313, 458736, 11090402, 0986026480

  • NormaliseratArtNr
    cst15305, esw10e1, f032116648, s3222s, 255066, 281000q090, 438313, 458736, 11090402, 220537102, 0986026480, 1612092880, 1637179880

  • Passar modeller
    Citroen Model: C1 Model series: C1 Model type: 68 Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes
    Citroen Model: C1 Model series: C1 Model type: 72 Type of engine: VTI Size of motor: 1.0 Brand of engine: CFB (1KR) Type description: PA_, PS_ Body: Hatchback From date: 01-06-2018 Fuel: Gasoline Approved: Yes
    Peugeot Model: 108 Model series: 108 Model type: 72 Type of engine: VTI Size of motor: 1.0 Brand of engine: CFB (1KR) Body: Hatchback From date: 01-05-2018 Fuel: Gasoline Approved: Yes
    Peugeot Model: 108 Model series: 108 Type of engine: VTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
    Toyota Model: Aygo Model series: Aygo Size of motor: 1.0 Brand of engine: 1KR-FE Type description: PAB4_, KGB4_ Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
    Toyota Model: Aygo Model series: Aygo Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _B4_ Body: Hatchback From date: 01-03-2018 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 12
    kW: 1.0
    Monteringsflens: 74.00
    Driveavstand: 25.00
    Monteringshull 1 mm: 11.00
    Avstand/bak: 142.00
    Avstand/frem: 61.50
    Nummer/tänder: 9
    B+: M8
    Posisjon/B+: 53
    Posisjon/50: 38
    Terminal 50: Plugg
    Girtype: DD
    Avstand mm: 129.50
    Rotasjon: med klokken
    Total lengde mm: 204.00
    Nummer/monteringshull: 2 (1)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    No./mount. holes 2 (1)
    Position/50 38
    Position/B+ 53
    Rotation CW
    Dist./back 142.00
    Dist./front 61.50
    Drive dist. 25.00
    Gear type DD
    kW 1.0
    Terminal 50 Plug
    Voltage 12
    Total length 204.00 mm
    Dist. 129.50 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      ESW10E1, F032116648, 28100-0Q090, 1612092880, 1637179880

    • Konkurrentreferens
      CST15305, S3222S, 25-5066, 220.537.102, 438313, 458736, 11090402, 0986026480

    • NormaliseratArtNr
      cst15305, esw10e1, f032116648, s3222s, 255066, 281000q090, 438313, 458736, 11090402, 220537102, 0986026480, 1612092880, 1637179880

    • Passar modeller
      Citroen Model: C1 Model series: C1 Model type: 68 Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes
      Citroen Model: C1 Model series: C1 Model type: 72 Type of engine: VTI Size of motor: 1.0 Brand of engine: CFB (1KR) Type description: PA_, PS_ Body: Hatchback From date: 01-06-2018 Fuel: Gasoline Approved: Yes
      Peugeot Model: 108 Model series: 108 Model type: 72 Type of engine: VTI Size of motor: 1.0 Brand of engine: CFB (1KR) Body: Hatchback From date: 01-05-2018 Fuel: Gasoline Approved: Yes
      Peugeot Model: 108 Model series: 108 Type of engine: VTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
      Toyota Model: Aygo Model series: Aygo Size of motor: 1.0 Brand of engine: 1KR-FE Type description: PAB4_, KGB4_ Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
      Toyota Model: Aygo Model series: Aygo Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _B4_ Body: Hatchback From date: 01-03-2018 Fuel: Gasoline Approved: Yes
