HC-Cargo Startmotor

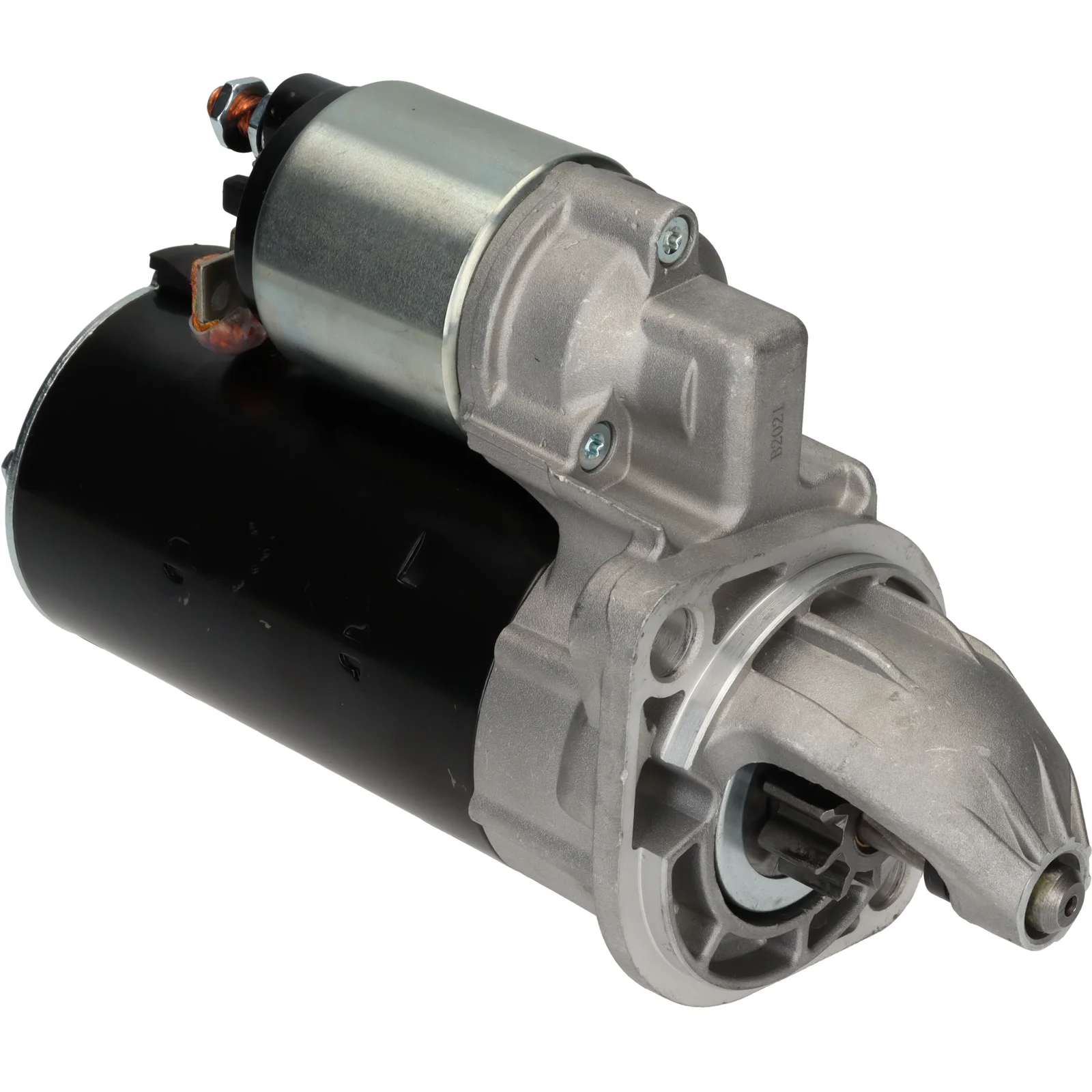

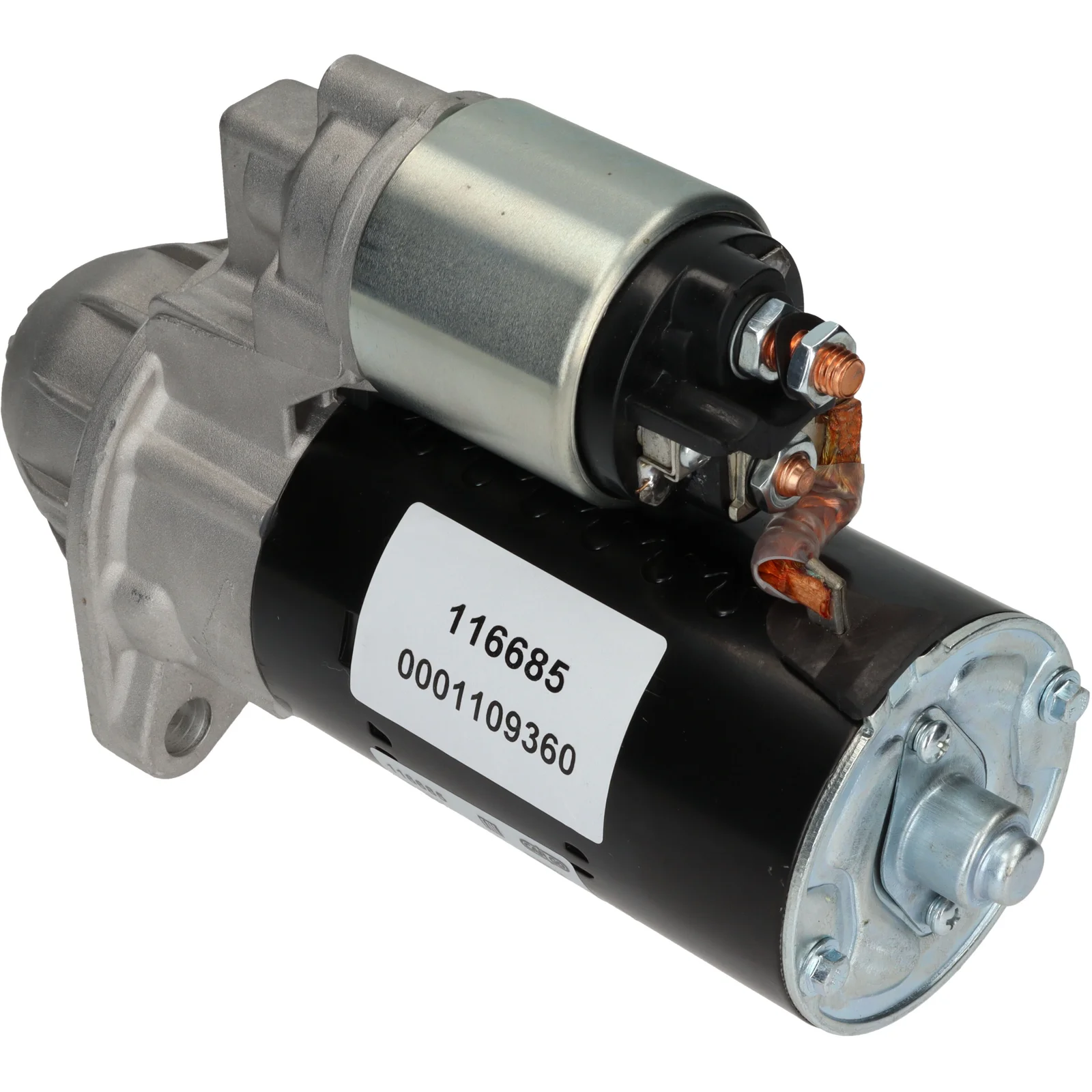

HC-Cargo Startmotor
Varenr.: F032116685

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, Katt/vermogen: 2,3, Antall/tenner: 9, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsmengde: 12
kW: 2.3
Festeplatelager: 82.50
Dreven avstand: 21.00
Festehull 2 mm: 12.50
Festehull 1 mm: 12.50
Avstand/bak: 186.00
Avstand/frem: 61.00
Antall/tenner: 9
B+: M8
Posisjon/B+: 60
Posisjon/50: 45
Terminal 50: M4
Gavl type: GR
Drev mm: 105.00
Rotasjon: med klokka
Total lengde mm: 247.00
Antall/festehull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 82.50
No./mount. holes 2 (0)
Position/50 45
Position/B+ 60
Rotation CW
Dist./back 186.00
Dist./front 61.00
Drive dist. 21.00
Gear type GR
kW 2.3
Terminal 50 M4
Voltage 12
Total length 247.00 mm
Dist. 105.00 mm
Mount. hole 2 12.50 mm
Mount. hole 1 12.50 mm

  • OEM
    A0021519501, F032116685, F231903060010, X830100008, 1986S00741, 0001109359, 0001109360, 0001362017, 0001362018, 0001362040, 0001362076, 12153841, 0021519501, 58400670, 58402610, 63217158, 296195100, 30800090004, 116760503000, 605720100072, 605720100093

  • Konkurrentreferens
    CST10166, drs3319, is0432, LRS00956, S0510, S0657S, S9196(LETRIKA), 8EA015642-511, 25-1415, 520.501.092, 600.048.092, 16008N, 16562N, 33415, 33442, 107334, 220912, 220912A, 254007, 8817310, 11018340, 11090284, 42018340, 063217158, 063296843, 063523620, 0986011017, 063217158010, 063296843010, 063523620760

  • NormaliseratArtNr
    a0021519501, cst10166, drs3319, f032116685, f231903060010, is0432, lrs00956, s0510, s0657s, s9196letrika, x830100008, 8ea015642511, 1986s00741, 16008n, 16562n, 33415, 33442, 107334, 220912, 220912a, 251415, 254007, 0001109359, 0001109360, 0001362017, 0001362018, 0001362040, 0001362076, 8817310, 11018340, 11090284, 12153841, 0021519501, 42018340, 58400670, 58402610, 063217158, 63217158, 063296843, 063523620, 296195100, 520501092, 600048092, 0986011017, 30800090004, 063217158010, 063296843010, 063523620760, 116760503000, 605720100072, 605720100093

  • Passar modeller
    Arona Model: Engine Model series: AD 295 M Approved: Yes
    Arona Model: Engine Model series: AD 395 M Approved: Yes
    Arona Model: Engine Model series: AD 4100 M Approved: Yes
    Arona Model: Engine Model series: AD 495 M Approved: Yes
    Arona Model: Engine Model series: AD 952 PM Approved: Yes
    Arona Model: Engine Model series: AD 953 PM Approved: Yes
    Arona Model: Engine Model series: AD 954 PM Approved: Yes
    Arona Model: Engine Model series: Various Models Brand of engine: AD... From date: 01-02-1978 Fuel: Diesel Approved: Yes
    Lombardini Model: Engine Model series: Various Models Approved: Yes
    Lombardini Model: LDAM-Serie Model series: LDAM 673 Approved: Yes
    Lombardini Model: LDAM-Serie Model series: LDAM 674 Approved: Yes
    Lombardini Model: LDAM-Serie Model series: LDAM 832 Approved: Yes
    Lombardini Model: LDAM-Serie Model series: LDAM 833 Approved: Yes
    1 / 3
  • Beskrivelse
    Spenningsmengde: 12
    kW: 2.3
    Festeplatelager: 82.50
    Dreven avstand: 21.00
    Festehull 2 mm: 12.50
    Festehull 1 mm: 12.50
    Avstand/bak: 186.00
    Avstand/frem: 61.00
    Antall/tenner: 9
    B+: M8
    Posisjon/B+: 60
    Posisjon/50: 45
    Terminal 50: M4
    Gavl type: GR
    Drev mm: 105.00
    Rotasjon: med klokka
    Total lengde mm: 247.00
    Antall/festehull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    No./mount. holes 2 (0)
    Position/50 45
    Position/B+ 60
    Rotation CW
    Dist./back 186.00
    Dist./front 61.00
    Drive dist. 21.00
    Gear type GR
    kW 2.3
    Terminal 50 M4
    Voltage 12
    Total length 247.00 mm
    Dist. 105.00 mm
    Mount. hole 2 12.50 mm
    Mount. hole 1 12.50 mm
  • Kjøretøymatching

    • OEM
      A0021519501, F032116685, F231903060010, X830100008, 1986S00741, 0001109359, 0001109360, 0001362017, 0001362018, 0001362040, 0001362076, 12153841, 0021519501, 58400670, 58402610, 63217158, 296195100, 30800090004, 116760503000, 605720100072, 605720100093

    • Konkurrentreferens
      CST10166, drs3319, is0432, LRS00956, S0510, S0657S, S9196(LETRIKA), 8EA015642-511, 25-1415, 520.501.092, 600.048.092, 16008N, 16562N, 33415, 33442, 107334, 220912, 220912A, 254007, 8817310, 11018340, 11090284, 42018340, 063217158, 063296843, 063523620, 0986011017, 063217158010, 063296843010, 063523620760

    • NormaliseratArtNr
      a0021519501, cst10166, drs3319, f032116685, f231903060010, is0432, lrs00956, s0510, s0657s, s9196letrika, x830100008, 8ea015642511, 1986s00741, 16008n, 16562n, 33415, 33442, 107334, 220912, 220912a, 251415, 254007, 0001109359, 0001109360, 0001362017, 0001362018, 0001362040, 0001362076, 8817310, 11018340, 11090284, 12153841, 0021519501, 42018340, 58400670, 58402610, 063217158, 63217158, 063296843, 063523620, 296195100, 520501092, 600048092, 0986011017, 30800090004, 063217158010, 063296843010, 063523620760, 116760503000, 605720100072, 605720100093

    • Passar modeller
      Arona Model: Engine Model series: AD 295 M Approved: Yes
      Arona Model: Engine Model series: AD 395 M Approved: Yes
      Arona Model: Engine Model series: AD 4100 M Approved: Yes
      Arona Model: Engine Model series: AD 495 M Approved: Yes
      Arona Model: Engine Model series: AD 952 PM Approved: Yes
      Arona Model: Engine Model series: AD 953 PM Approved: Yes
      Arona Model: Engine Model series: AD 954 PM Approved: Yes
      Arona Model: Engine Model series: Various Models Brand of engine: AD... From date: 01-02-1978 Fuel: Diesel Approved: Yes
      Lombardini Model: Engine Model series: Various Models Approved: Yes
      Lombardini Model: LDAM-Serie Model series: LDAM 673 Approved: Yes
      Lombardini Model: LDAM-Serie Model series: LDAM 674 Approved: Yes
      Lombardini Model: LDAM-Serie Model series: LDAM 832 Approved: Yes
      Lombardini Model: LDAM-Serie Model series: LDAM 833 Approved: Yes
      1 / 3
