HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032110535

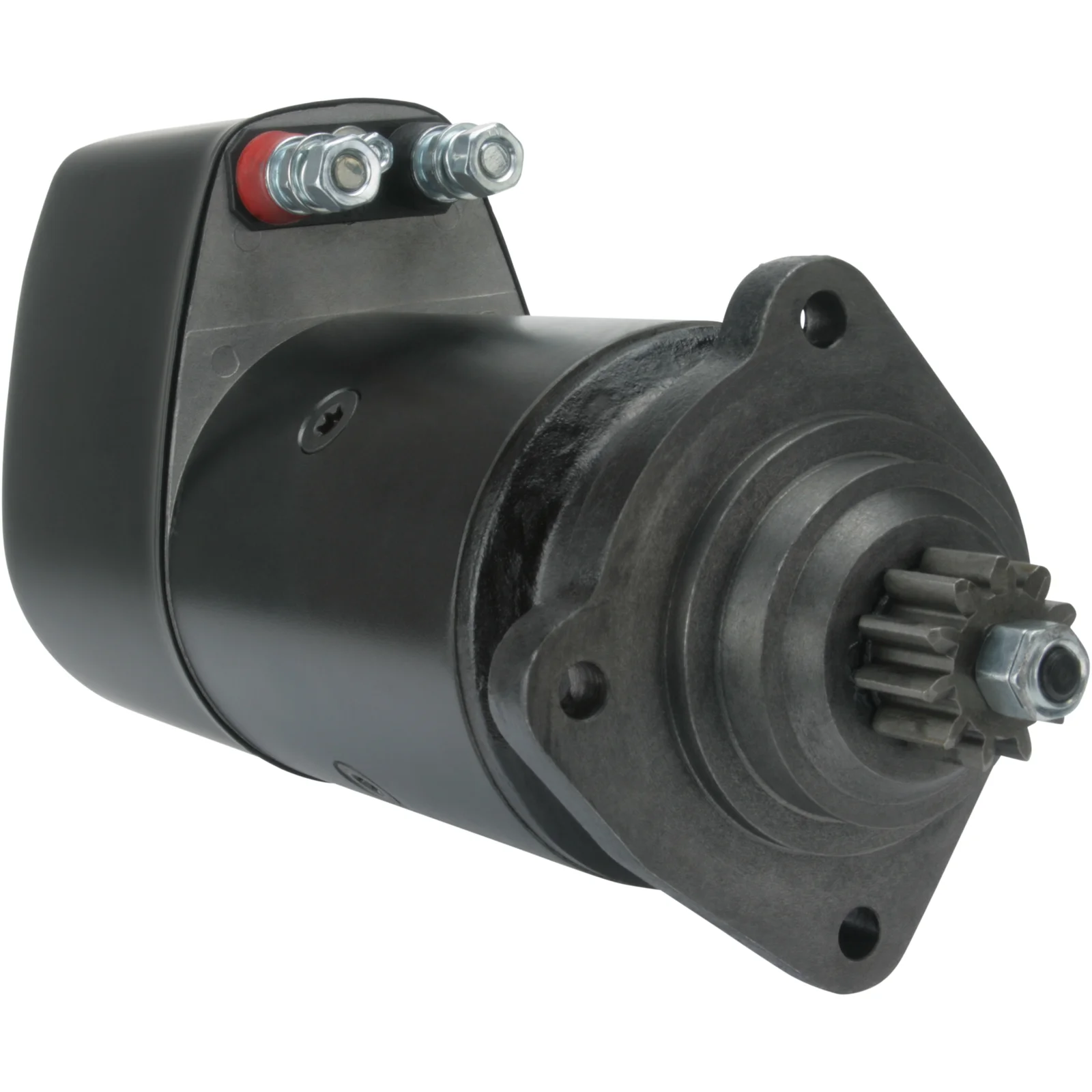

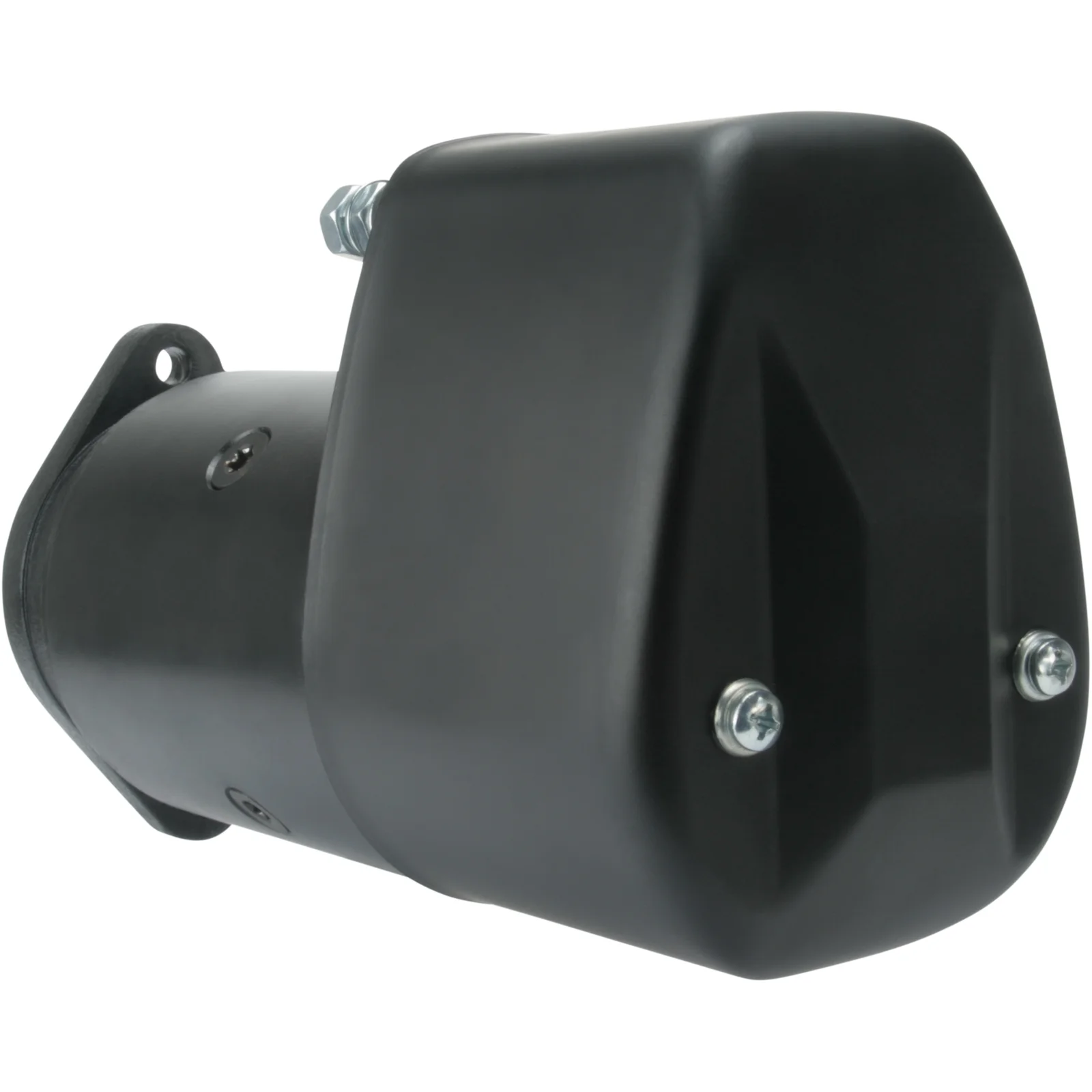

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 24, kW: 5.4, Antall/tenner: 11, Rotasjon: CW

Beskrivelse

Spenningsverdi: 24
kW: 5,4
Festerflens: 89,00
Drivingsavstand: 47,00
Festerhull 3 mm: 11,00
Festerhull 2 mm: 11,00
Festerhull 1 mm: 11,00
Avstand/bak: 324,50
Avstand/forside: 62,00
Antall./kroner: 11
B+: M10
Posisjon/50: 60
Terminall 50: M6
Girtype: DD
Avstand 2: 90,00
Avstand 3: 90,00
Avstand mm: 127,00
Rotasjon: CW
Posisjon/b-: 60
B-: M10
Total lengde mm: 384,00
Drevtype: Stål
Produsentinfo: BN
Vanntett: Nei
Oljetett: Nei
Antall./festerhull: 3 (0)

Filer

Spesifikasjon

B+ M10
B- M10
No./teeth 11
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 60
Position/b- 60
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 324.50
Dist./front 62.00
Drive dist. 47.00
Drive type Steel
Gear type DD
kW 5.4
Terminal 50 M6
Voltage 24
Total length 384.00 mm
Waterproof No
Dist. 127.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZK5173, C9JF11350A, cs384, D6PZ11350C, F032110535, R23.21, 11.139.013, 328, 536, 22620, 860115, 860655, 01171955, 1171955, 01174645, 1174645, 0001410111, 0001416036, 1516756R, 1701063, 03040680, 6210000, 9125400, 19024035, 42498250, 0000042522680, 42522680, 81466036, 2913103700, 2913121300

  • Konkurrentreferens
    CST10628, drs2730, F042002107, F042S02107, is0429, IS9013, lrs00960, LRS01862, MS566, MS701, S0011, STR-23804, STR22018, 8ea726132-001, 45-1370, 88-12.730, 688.008.114, 1572, 10384, 18379, 33631, 33633, 103473, 220318, 220318A, 220322, 220322A, 455616, 11012730, 943252220, 0986012730, 943252220010

  • NormaliseratArtNr
    azk5173, c9jf11350a, cs384, cst10628, d6pz11350c, drs2730, f032110535, f042002107, f042s02107, is0429, is9013, lrs00960, lrs01862, ms566, ms701, r2321, s0011, str22018, str23804, 8ea726132001, 328, 536, 1572, 10384, 18379, 22620, 33631, 33633, 103473, 220318, 220318a, 220322, 220322a, 451370, 455616, 860115, 860655, 01171955, 1171955, 01174645, 1174645, 0001410111, 0001416036, 1516756r, 1701063, 03040680, 6210000, 8812730, 9125400, 11012730, 11139013, 19024035, 42498250, 0000042522680, 42522680, 81466036, 688008114, 943252220, 0986012730, 2913103700, 2913121300, 943252220010

  • Passar modeller
    Fiat Model: Series 190 Model series: 190.29 Size of motor: 12.8 Brand of engine: BF8L413F Body: Platform / Chassis From date: 01-08-1976 To date: 01-12-1986 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 170-23 Size of motor: 13.4 Brand of engine: F8L513 Body: Dump Truck From date: 01-01-1991 To date: 01-12-1993 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 170-23 Size of motor: 13.4 Brand of engine: F8L513 Body: Dump Truck From date: 01-04-1988 To date: 01-12-1990 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 170-25 Size of motor: 13.4 Brand of engine: F8L513 Body: Dump Truck From date: 01-01-1991 To date: 01-12-1993 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 170-25 Size of motor: 13.4 Brand of engine: F8L513 Body: Dump Truck From date: 01-03-1989 To date: 01-12-1990 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 170-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Dump Truck From date: 01-01-1991 To date: 01-12-1993 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 170-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Dump Truck From date: 01-04-1989 To date: 01-12-1990 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 170-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Platform / Chassis From date: 01-01-1991 To date: 01-12-1993 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 170-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Platform / Chassis From date: 01-04-1989 To date: 01-12-1990 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 180-23 Size of motor: 13.4 Brand of engine: F8L513 Body: Dump Truck From date: 01-01-1991 To date: 01-12-1993 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 180-25 Size of motor: 13.4 Brand of engine: F8L513 Body: Dump Truck From date: 01-01-1991 To date: 01-12-1993 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 180-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Dump Truck From date: 01-01-1991 To date: 01-12-1993 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 190-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Dump Truck From date: 01-01-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 190-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Dump Truck From date: 01-07-1983 To date: 01-06-1986 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 190-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Dump Truck From date: 01-07-1983 To date: 01-12-1986 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 190-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Dump Truck From date: 01-07-1983 To date: 01-12-1987 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 190-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Platform / Chassis From date: 01-07-1983 To date: 01-06-1986 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 190-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Semi-Trailer From date: 01-07-1983 To date: 01-06-1986 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 190-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Semi-Trailer From date: 01-07-1986 To date: 01-12-1987 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 260-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Dump Truck From date: 01-07-1983 To date: 01-06-1986 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 260-25 Size of motor: 13.4 Brand of engine: F8L513 Body: General Purpose Vehicle From date: 01-04-1989 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 260-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Dump Truck From date: 01-01-1991 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 260-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Dump Truck From date: 01-04-1989 To date: 01-12-1990 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 260-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Platform / Chassis From date: 01-01-1991 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 260-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Platform / Chassis From date: 01-04-1989 To date: 01-12-1990 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 260-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Semi-Trailer From date: 01-01-1991 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 260-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Semi-Trailer From date: 01-04-1989 To date: 01-12-1990 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 330-30 Size of motor: 12.8 Brand of engine: BF8L513 Body: Dump Truck From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 340-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Dump Truck From date: 01-03-1989 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    1 / 6
  • Beskrivelse
    Spenningsverdi: 24
    kW: 5,4
    Festerflens: 89,00
    Drivingsavstand: 47,00
    Festerhull 3 mm: 11,00
    Festerhull 2 mm: 11,00
    Festerhull 1 mm: 11,00
    Avstand/bak: 324,50
    Avstand/forside: 62,00
    Antall./kroner: 11
    B+: M10
    Posisjon/50: 60
    Terminall 50: M6
    Girtype: DD
    Avstand 2: 90,00
    Avstand 3: 90,00
    Avstand mm: 127,00
    Rotasjon: CW
    Posisjon/b-: 60
    B-: M10
    Total lengde mm: 384,00
    Drevtype: Stål
    Produsentinfo: BN
    Vanntett: Nei
    Oljetett: Nei
    Antall./festerhull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    B- M10
    No./teeth 11
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 60
    Position/b- 60
    Prod. info BN
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 324.50
    Dist./front 62.00
    Drive dist. 47.00
    Drive type Steel
    Gear type DD
    kW 5.4
    Terminal 50 M6
    Voltage 24
    Total length 384.00 mm
    Waterproof No
    Dist. 127.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      AZK5173, C9JF11350A, cs384, D6PZ11350C, F032110535, R23.21, 11.139.013, 328, 536, 22620, 860115, 860655, 01171955, 1171955, 01174645, 1174645, 0001410111, 0001416036, 1516756R, 1701063, 03040680, 6210000, 9125400, 19024035, 42498250, 0000042522680, 42522680, 81466036, 2913103700, 2913121300

    • Konkurrentreferens
      CST10628, drs2730, F042002107, F042S02107, is0429, IS9013, lrs00960, LRS01862, MS566, MS701, S0011, STR-23804, STR22018, 8ea726132-001, 45-1370, 88-12.730, 688.008.114, 1572, 10384, 18379, 33631, 33633, 103473, 220318, 220318A, 220322, 220322A, 455616, 11012730, 943252220, 0986012730, 943252220010

    • NormaliseratArtNr
      azk5173, c9jf11350a, cs384, cst10628, d6pz11350c, drs2730, f032110535, f042002107, f042s02107, is0429, is9013, lrs00960, lrs01862, ms566, ms701, r2321, s0011, str22018, str23804, 8ea726132001, 328, 536, 1572, 10384, 18379, 22620, 33631, 33633, 103473, 220318, 220318a, 220322, 220322a, 451370, 455616, 860115, 860655, 01171955, 1171955, 01174645, 1174645, 0001410111, 0001416036, 1516756r, 1701063, 03040680, 6210000, 8812730, 9125400, 11012730, 11139013, 19024035, 42498250, 0000042522680, 42522680, 81466036, 688008114, 943252220, 0986012730, 2913103700, 2913121300, 943252220010

    • Passar modeller
      Fiat Model: Series 190 Model series: 190.29 Size of motor: 12.8 Brand of engine: BF8L413F Body: Platform / Chassis From date: 01-08-1976 To date: 01-12-1986 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 170-23 Size of motor: 13.4 Brand of engine: F8L513 Body: Dump Truck From date: 01-01-1991 To date: 01-12-1993 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 170-23 Size of motor: 13.4 Brand of engine: F8L513 Body: Dump Truck From date: 01-04-1988 To date: 01-12-1990 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 170-25 Size of motor: 13.4 Brand of engine: F8L513 Body: Dump Truck From date: 01-01-1991 To date: 01-12-1993 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 170-25 Size of motor: 13.4 Brand of engine: F8L513 Body: Dump Truck From date: 01-03-1989 To date: 01-12-1990 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 170-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Dump Truck From date: 01-01-1991 To date: 01-12-1993 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 170-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Dump Truck From date: 01-04-1989 To date: 01-12-1990 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 170-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Platform / Chassis From date: 01-01-1991 To date: 01-12-1993 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 170-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Platform / Chassis From date: 01-04-1989 To date: 01-12-1990 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 180-23 Size of motor: 13.4 Brand of engine: F8L513 Body: Dump Truck From date: 01-01-1991 To date: 01-12-1993 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 180-25 Size of motor: 13.4 Brand of engine: F8L513 Body: Dump Truck From date: 01-01-1991 To date: 01-12-1993 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 180-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Dump Truck From date: 01-01-1991 To date: 01-12-1993 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 190-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Dump Truck From date: 01-01-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 190-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Dump Truck From date: 01-07-1983 To date: 01-06-1986 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 190-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Dump Truck From date: 01-07-1983 To date: 01-12-1986 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 190-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Dump Truck From date: 01-07-1983 To date: 01-12-1987 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 190-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Platform / Chassis From date: 01-07-1983 To date: 01-06-1986 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 190-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Semi-Trailer From date: 01-07-1983 To date: 01-06-1986 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 190-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Semi-Trailer From date: 01-07-1986 To date: 01-12-1987 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 260-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Dump Truck From date: 01-07-1983 To date: 01-06-1986 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 260-25 Size of motor: 13.4 Brand of engine: F8L513 Body: General Purpose Vehicle From date: 01-04-1989 To date: 01-12-1992 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 260-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Dump Truck From date: 01-01-1991 To date: 01-12-1992 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 260-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Dump Truck From date: 01-04-1989 To date: 01-12-1990 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 260-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Platform / Chassis From date: 01-01-1991 To date: 01-12-1992 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 260-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Platform / Chassis From date: 01-04-1989 To date: 01-12-1990 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 260-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Semi-Trailer From date: 01-01-1991 To date: 01-12-1992 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 260-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Semi-Trailer From date: 01-04-1989 To date: 01-12-1990 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 330-30 Size of motor: 12.8 Brand of engine: BF8L513 Body: Dump Truck From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 340-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Dump Truck From date: 01-03-1989 To date: 01-12-1992 Fuel: Diesel Approved: Yes
