Varenr.: F032110932

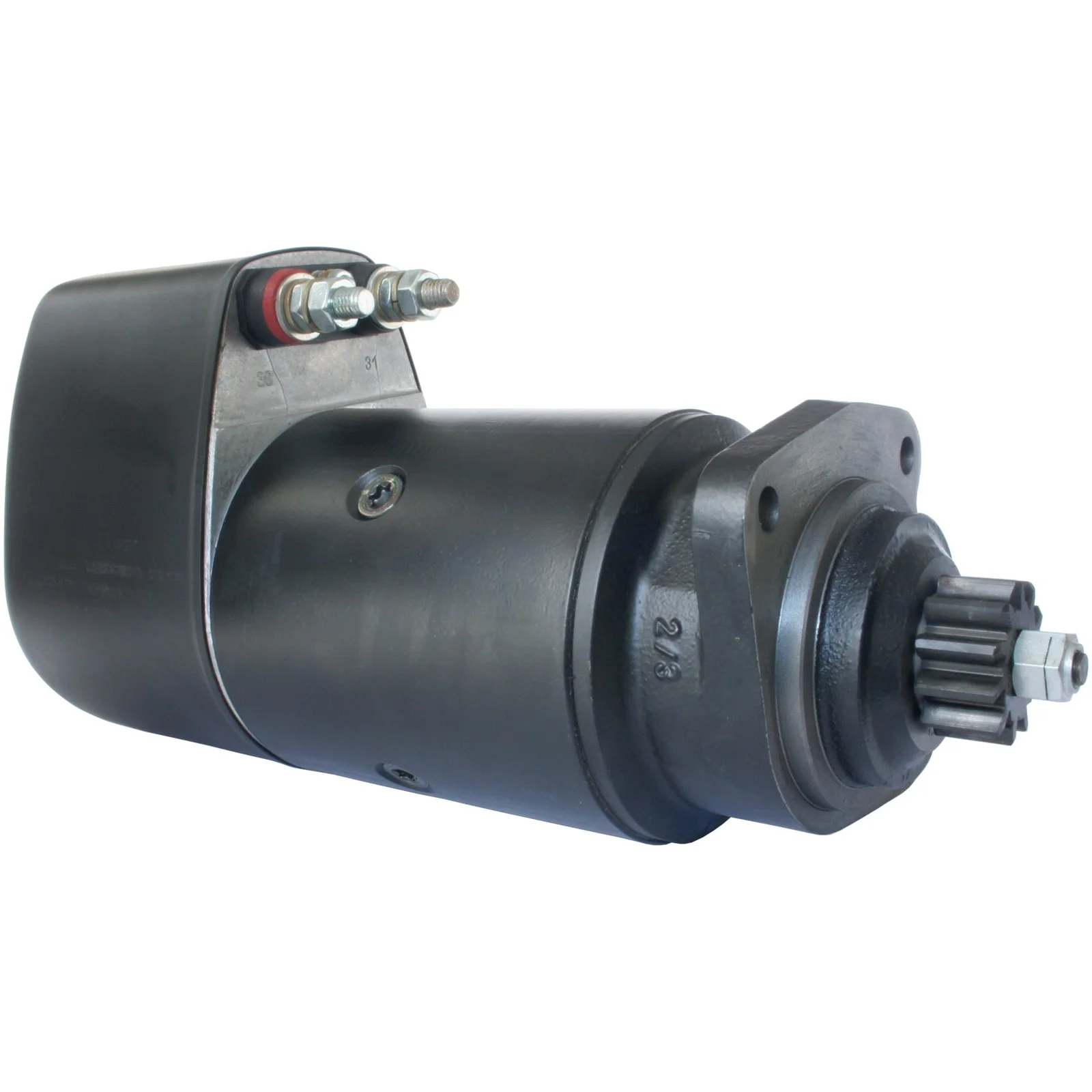

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 24, kW: 5.4, Antall/tenner: 11, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 24
kW: 5.4
Isolert retur: Ja
Monteringsflens: 89.00
Driveavstand: 47.00
Montering hull 3 mm: 11.00
Montering hull 2 mm: 11.00
Montering hull 1 mm: 11.00
Avstand/bak: 320.00
Avstand/frem: 62.00
Ant./tenner: 11
B+: M10
Posisjon/50: 60
Terminal 50: M6
Geværtype: DD
Avstand 2: 91.50
Avstand 3: 91.50
Avstand mm: 128.50
Rotasjon: CW
B-: M10
Total lengde mm: 384.50
Drevtype: Stål
Prod. info: BN
Vanntett: Nei
Oljetett: Nei
Ant./monteringshull: 3 (0)

Spesifikasjon

B+ M10
B- M10
No./teeth 11
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 60
Prod. info BN
Dist. 2 91.50
Dist. 3 91.50
Rotation CW
Dist./back 320.00
Dist./front 62.00
Drive dist. 47.00
Drive type Steel
Gear type DD
Insulated return Yes
kW 5.4
Terminal 50 M6
Voltage 24
Total length 384.50 mm
Waterproof No
Dist. 128.50 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm
  • OEM

    F032110932, R23.24, 322, 332, 544, 22623, 241789, 243482, 293889, 0001410057, 0001410068, 0001416044, 9125430, 19024040, 81466044
  • Konkurrentreferens

    CST10630, drs1450, DRS3766, F042002110, F042S02110, IS9056, MS527, S0347, STR-23807, 8ea737251-001, 45-0180, 45-1430, 4459, 33507, 33667, 101034, 103992, 11014870
  • NormaliseratArtNr

    cst10630, drs1450, drs3766, f032110932, f042002110, f042s02110, is9056, ms527, r2324, s0347, str23807, 8ea737251001, 322, 332, 544, 4459, 22623, 33507, 33667, 101034, 103992, 241789, 243482, 293889, 450180, 451430, 0001410057, 0001410068, 0001416044, 9125430, 11014870, 19024040, 81466044
  • Passar modeller

    DAF Model: F Model series: F 2825 Size of motor: 11.6 Brand of engine: DKTD1160 Body: Concrete Mixer From date: 01-01-1974 To date: 01-09-1986 Fuel: Diesel Approved: Yes
    DAF Model: SB Model series: SB 201 Size of motor: 11.6 Brand of engine: DKD1160 Body: Bus From date: 01-01-1974 Fuel: Diesel Approved: Yes
    DAF Model: SB Model series: SB 201 Size of motor: 11.6 Brand of engine: DKDL1160 Body: Bus From date: 01-01-1974 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenning: 24
    kW: 5.4
    Isolert retur: Ja
    Monteringsflens: 89.00
    Driveavstand: 47.00
    Montering hull 3 mm: 11.00
    Montering hull 2 mm: 11.00
    Montering hull 1 mm: 11.00
    Avstand/bak: 320.00
    Avstand/frem: 62.00
    Ant./tenner: 11
    B+: M10
    Posisjon/50: 60
    Terminal 50: M6
    Geværtype: DD
    Avstand 2: 91.50
    Avstand 3: 91.50
    Avstand mm: 128.50
    Rotasjon: CW
    B-: M10
    Total lengde mm: 384.50
    Drevtype: Stål
    Prod. info: BN
    Vanntett: Nei
    Oljetett: Nei
    Ant./monteringshull: 3 (0)
  • Spesifikasjon
    B+ M10
    B- M10
    No./teeth 11
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 60
    Prod. info BN
    Dist. 2 91.50
    Dist. 3 91.50
    Rotation CW
    Dist./back 320.00
    Dist./front 62.00
    Drive dist. 47.00
    Drive type Steel
    Gear type DD
    Insulated return Yes
    kW 5.4
    Terminal 50 M6
    Voltage 24
    Total length 384.50 mm
    Waterproof No
    Dist. 128.50 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching
    • OEM

      F032110932, R23.24, 322, 332, 544, 22623, 241789, 243482, 293889, 0001410057, 0001410068, 0001416044, 9125430, 19024040, 81466044
    • Konkurrentreferens

      CST10630, drs1450, DRS3766, F042002110, F042S02110, IS9056, MS527, S0347, STR-23807, 8ea737251-001, 45-0180, 45-1430, 4459, 33507, 33667, 101034, 103992, 11014870
    • NormaliseratArtNr

      cst10630, drs1450, drs3766, f032110932, f042002110, f042s02110, is9056, ms527, r2324, s0347, str23807, 8ea737251001, 322, 332, 544, 4459, 22623, 33507, 33667, 101034, 103992, 241789, 243482, 293889, 450180, 451430, 0001410057, 0001410068, 0001416044, 9125430, 11014870, 19024040, 81466044
    • Passar modeller

      DAF Model: F Model series: F 2825 Size of motor: 11.6 Brand of engine: DKTD1160 Body: Concrete Mixer From date: 01-01-1974 To date: 01-09-1986 Fuel: Diesel Approved: Yes
      DAF Model: SB Model series: SB 201 Size of motor: 11.6 Brand of engine: DKD1160 Body: Bus From date: 01-01-1974 Fuel: Diesel Approved: Yes
      DAF Model: SB Model series: SB 201 Size of motor: 11.6 Brand of engine: DKDL1160 Body: Bus From date: 01-01-1974 Fuel: Diesel Approved: Yes
