Varenr.: F032111003

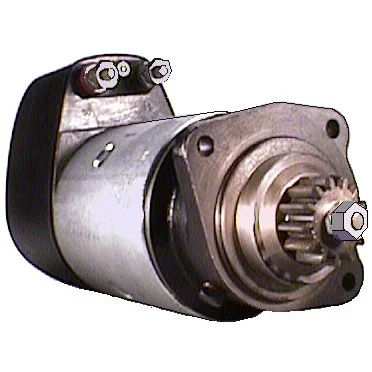

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 24, kW: 5.4, Antall/tenner: 13, Rotasjon: Med urviseren

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsspenning: 24
kW: 5.4
Festerflens: 89.00
Drevet avstand: 47.50
Festet hull 3 mm: 11.00
Festet hull 2 mm: 11.00
Festet hull 1 mm: 11.00
Avstand/bak: 327.00
Avstand/fram: 62.50
Nummer/tannhjul: 13
B+: M10
Posisjon/50: 60
Relé 50: M6
Gavl-type: DD
Avstand 2: 90.00
Avstand 3: 90.00
Avstand mm: 126.50
Rotasjon: medur ←→ medur
Posisjon/b-: 58
B-: M10
Total lengde mm: 387.50
Drevtype: Stål
Prod. info: BN
Vanntett: Ja
Oljesealed: Nei
Nummer/fester hull: 3 (0)

Filer

Spesifikasjon

B+ M10
B- M10
No./teeth 13
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 60
Position/b- 58
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 327.00
Dist./front 62.50
Drive dist. 47.50
Drive type Steel
Gear type DD
kW 5.4
Terminal 50 M6
Voltage 24
Total length 387.50 mm
Waterproof Yes
Dist. 126.50 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    cs805, D1R24X6H7622, F032111003, 504, 253307, 01170389, 1170389, 0001410052, 0001410094, 0001415007, 0001416004, 1516813R, 2871840M91, 2871840M92, 02917538, 2917538, 3095297M91, 19024012, 194939707

  • Konkurrentreferens
    CST10715, drs3324, IS9061, LRS01859, LRS01953, MS511, S0134, 8ea732892-001, 45-1300, 45-3198, 600.059.134, 600.069.134, 601.201.133, 625.033.134, 4139, 10805, 104012, 220320, 220320A, 11090168

  • NormaliseratArtNr
    cs805, cst10715, d1r24x6h7622, drs3324, f032111003, is9061, lrs01859, lrs01953, ms511, s0134, 8ea732892001, 504, 4139, 10805, 104012, 220320, 220320a, 253307, 451300, 453198, 01170389, 1170389, 0001410052, 0001410094, 0001415007, 0001416004, 1516813r, 2871840m91, 2871840m92, 02917538, 2917538, 3095297m91, 11090168, 19024012, 194939707, 600059134, 600069134, 601201133, 625033134

  • Passar modeller
    Hanomag Model: 40 Series Model series: 44 C Size of motor: 7.2 Brand of engine: D943.. From date: 01-02-1980 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    Hanomag Model: 50 Series Model series: 55C Size of motor: 10.8 Brand of engine: D963B From date: 01-01-1981 To date: 01-03-1996 Fuel: Diesel Approved: Yes
    Hanomag Model: 50 Series Model series: 55C Size of motor: 9.5 Brand of engine: D962B From date: 01-02-1980 To date: 01-03-1996 Fuel: Diesel Approved: Yes
    Hanomag Model: 60 Series Model series: 66 C Size of motor: 10.8 Brand of engine: D963A.. From date: 01-02-1980 To date: 01-03-1996 Fuel: Diesel Approved: Yes
    Hanomag Model: 600 Series Model series: 600 D Size of motor: 9.5 Brand of engine: D962K From date: 01-02-1980 To date: 01-03-1996 Fuel: Diesel Approved: Yes
    Hanomag Model: 70 Series Model series: 77 C Size of motor: 10.8 Brand of engine: D963A.. From date: 01-02-1980 To date: 01-03-1996 Fuel: Diesel Approved: Yes
    Hanomag Model: 700 Series Model series: 700 D Size of motor: 10.8 Brand of engine: D963A.. From date: 01-04-1980 To date: 01-03-1996 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsspenning: 24
    kW: 5.4
    Festerflens: 89.00
    Drevet avstand: 47.50
    Festet hull 3 mm: 11.00
    Festet hull 2 mm: 11.00
    Festet hull 1 mm: 11.00
    Avstand/bak: 327.00
    Avstand/fram: 62.50
    Nummer/tannhjul: 13
    B+: M10
    Posisjon/50: 60
    Relé 50: M6
    Gavl-type: DD
    Avstand 2: 90.00
    Avstand 3: 90.00
    Avstand mm: 126.50
    Rotasjon: medur ←→ medur
    Posisjon/b-: 58
    B-: M10
    Total lengde mm: 387.50
    Drevtype: Stål
    Prod. info: BN
    Vanntett: Ja
    Oljesealed: Nei
    Nummer/fester hull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    B- M10
    No./teeth 13
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 60
    Position/b- 58
    Prod. info BN
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 327.00
    Dist./front 62.50
    Drive dist. 47.50
    Drive type Steel
    Gear type DD
    kW 5.4
    Terminal 50 M6
    Voltage 24
    Total length 387.50 mm
    Waterproof Yes
    Dist. 126.50 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      cs805, D1R24X6H7622, F032111003, 504, 253307, 01170389, 1170389, 0001410052, 0001410094, 0001415007, 0001416004, 1516813R, 2871840M91, 2871840M92, 02917538, 2917538, 3095297M91, 19024012, 194939707

    • Konkurrentreferens
      CST10715, drs3324, IS9061, LRS01859, LRS01953, MS511, S0134, 8ea732892-001, 45-1300, 45-3198, 600.059.134, 600.069.134, 601.201.133, 625.033.134, 4139, 10805, 104012, 220320, 220320A, 11090168

    • NormaliseratArtNr
      cs805, cst10715, d1r24x6h7622, drs3324, f032111003, is9061, lrs01859, lrs01953, ms511, s0134, 8ea732892001, 504, 4139, 10805, 104012, 220320, 220320a, 253307, 451300, 453198, 01170389, 1170389, 0001410052, 0001410094, 0001415007, 0001416004, 1516813r, 2871840m91, 2871840m92, 02917538, 2917538, 3095297m91, 11090168, 19024012, 194939707, 600059134, 600069134, 601201133, 625033134

    • Passar modeller
      Hanomag Model: 40 Series Model series: 44 C Size of motor: 7.2 Brand of engine: D943.. From date: 01-02-1980 To date: 01-07-1992 Fuel: Diesel Approved: Yes
      Hanomag Model: 50 Series Model series: 55C Size of motor: 10.8 Brand of engine: D963B From date: 01-01-1981 To date: 01-03-1996 Fuel: Diesel Approved: Yes
      Hanomag Model: 50 Series Model series: 55C Size of motor: 9.5 Brand of engine: D962B From date: 01-02-1980 To date: 01-03-1996 Fuel: Diesel Approved: Yes
      Hanomag Model: 60 Series Model series: 66 C Size of motor: 10.8 Brand of engine: D963A.. From date: 01-02-1980 To date: 01-03-1996 Fuel: Diesel Approved: Yes
      Hanomag Model: 600 Series Model series: 600 D Size of motor: 9.5 Brand of engine: D962K From date: 01-02-1980 To date: 01-03-1996 Fuel: Diesel Approved: Yes
      Hanomag Model: 70 Series Model series: 77 C Size of motor: 10.8 Brand of engine: D963A.. From date: 01-02-1980 To date: 01-03-1996 Fuel: Diesel Approved: Yes
      Hanomag Model: 700 Series Model series: 700 D Size of motor: 10.8 Brand of engine: D963A.. From date: 01-04-1980 To date: 01-03-1996 Fuel: Diesel Approved: Yes
      1 / 2
