Varenr.: F032111218

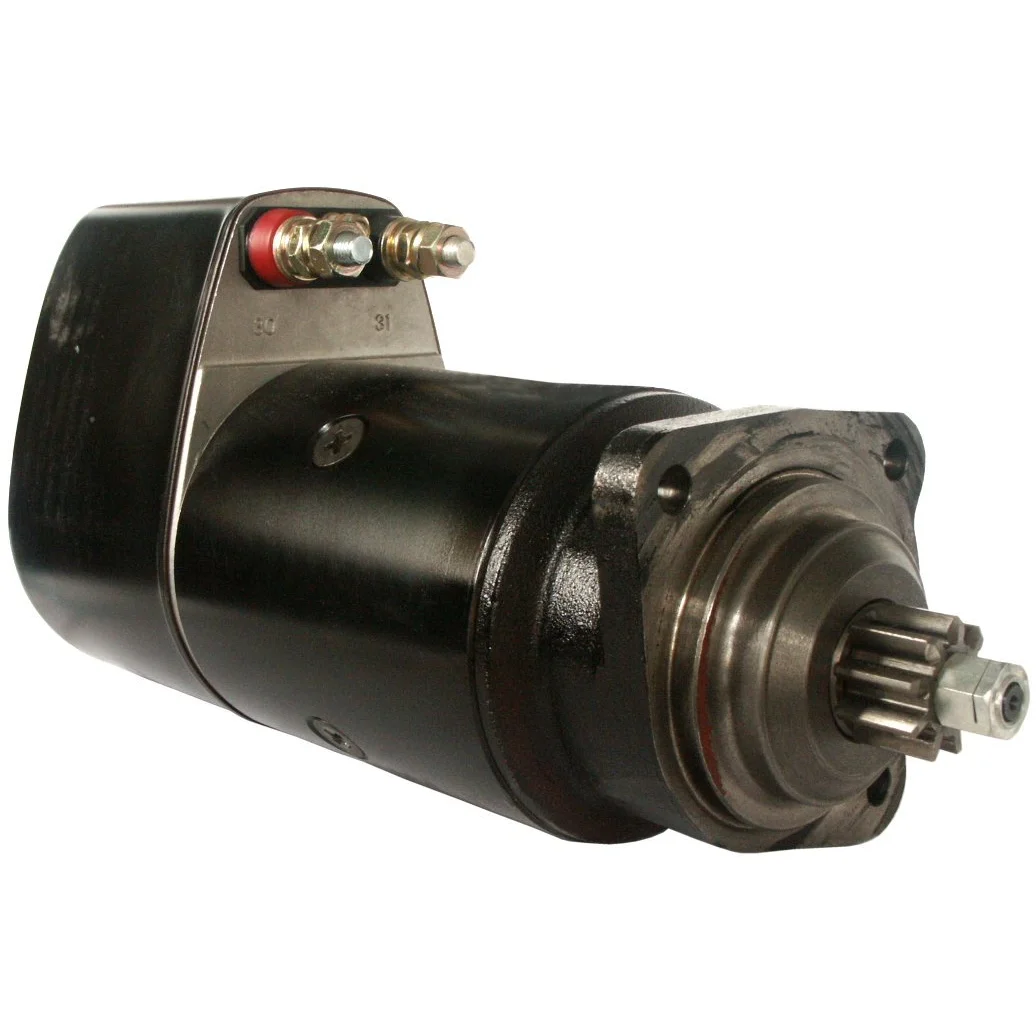

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 24, kW: 5.4, No./tenner: 9, Rotasjon: CW

Beskrivelse

Start 24V-5.4kW passer Penta 24V - 5.4kW, 9k, isolert retur A - 89mm, B - 48mm 12V-variant er 91-605-8009 For Yourex produkt bestilling 91-605-6028

Spenning: 24
kW: 5.4
Isolert retur: Ja
Festebrakt: 89,00
Drivingsavstand: 48,00
Festet hull 3 mm: 11,00
Festet hull 2 mm: 11,00
Festet hull 1 mm: 11,00
Avstand/bak: 326,50
Avstand/frem: 61,50
Ant./tenner: 9
B+: M10
Posisjon/50: 60
Terminal 50: M6
Girtype: DD
Avstand 2: 127,00
Avstand 3: 89,00
Avstand mm: 89,00
Rotasjon: med urviseren
B-: M10
Total lengde mm: 388,00
Drivningstype: Stål
Prod. info: BN
Vanntett: Nei
Oljeseald: Nei
Ant./festet hull: 3 (0)

Filer

Spesifikasjon

B+ M10
B- M10
No./teeth 9
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 60
Prod. info BN
Dist. 2 127.00
Dist. 3 89.00
Rotation CW
Dist./back 326.50
Dist./front 61.50
Drive dist. 48.00
Drive type Steel
Gear type DD
Insulated return Yes
kW 5.4
Terminal 50 M6
Voltage 24
Total length 388.00 mm
Waterproof No
Dist. 89.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZK 5431, AZK5431, cs955, F032111218, R23.33, 0001 402 079, 0001 414 011, 0001 416 028, 11.139.077, 528, 9068, 11139 077, 241011, 842774, 843510, 847307, 860543, 881683, 912006-05, 0001402079, 0001414011, 0001416028, 3803079, 6330000, 9125350, 19024028, 060520796, 9000847307, 605720100076, 623200700047

  • Konkurrentreferens
    BSO7294, CST10776, DRS3764, F042002119, F042S02119, IS9068, LRS01807, LRS01812, MS487, MS703, S0338, STR-2388, 8EA015642-441, 8ea737100-001, 45-0123, 45-0206, 638.011.094, 638.111.094, 4165, 10955, 18388, 33691, 220264, 220264A, 11090108, 943252046, 0986019653, 943252046010

  • Bilmärken
    Åkerman / AAkermans, Vammas / Veekmas, Volvo BM / Construction Equipment, Volvo Penta

  • NormaliseratArtNr
    azk5431, bso7294, cs955, cst10776, drs3764, f032111218, f042002119, f042s02119, is9068, lrs01807, lrs01812, ms487, ms703, r2333, s0338, str2388, 8ea015642441, 8ea737100001, 528, 4165, 9068, 10955, 18388, 33691, 220264, 220264a, 241011, 450123, 450206, 842774, 843510, 847307, 860543, 881683, 0001402079, 0001414011, 0001416028, 3803079, 6330000, 9125350, 11090108, 11139077, 19024028, 060520796, 91200605, 638011094, 638111094, 943252046, 0986019653, 9000847307, 605720100076, 623200700047, 943252046010

  • Passar modeller
    Åkerman / AAkermans Series: Grävmaskin Model: H 10 (TD 60 D) Engine type: ch.nr: 2047-2467
    Åkerman / AAkermans Series: Grävmaskin Model: H 10 (TD 61 ACE) Engine type: ch.nr: 2468-
    Åkerman / AAkermans Series: Grävmaskin Model: H 10 Engine type: TD60B, ch.nr: -2046
    Åkerman / AAkermans Series: Grävmaskin Model: H 12 B Engine type: TD 70 G
    Åkerman / AAkermans Series: Grävmaskin Model: H 12, B Engine type: TD 70 B
    Åkerman / AAkermans Series: Grävmaskin Model: H 7 B Engine type: TD60D,ch.nr: 619-900
    Åkerman / AAkermans Series: Grävmaskin Model: H 7 C Engine type: TD61ACE, ch.nr: 901-
    Åkerman / AAkermans Series: Grävmaskin Model: H 9 B Engine type: TD60B, ch.nr: 1106-
    Åkerman / AAkermans Series: Grävmaskin Model: H 9 Engine type: D 70 A; D 70 B
    Nordverk Series: Väghyvel Model: 130 Engine type: TD 70 B
    Ösa Series: Skogsmaskin Model: 280 Engine type: TD 71 A
    Vammas / Veekmas Series: Väghyvel Model: 161, 162
    Volvo BM / Construction Equipment Series: Dumper Model: DR A 25 C
    Volvo BM / Construction Equipment Series: Grävmaskin Model: EC 200
    Volvo BM / Construction Equipment Series: Grävmaskin Model: EC 230 B
    Volvo BM / Construction Equipment Series: Grävmaskin Model: EC 280
    Volvo BM / Construction Equipment Series: Grävmaskin Model: EC 300
    Volvo BM / Construction Equipment Series: Grävmaskin Model: EW 200
    Volvo BM / Construction Equipment Series: Grävmaskin Model: EW 230 B
    Volvo BM / Construction Equipment Series: Lastare Model: Parca 854 Engine type: D 70 A
    Volvo Penta Model: Engine Model series: Engine Size of motor: 5.5 Brand of engine: TD60. From date: 01-01-1982 To date: 01-06-1986 Fuel: Diesel Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 6.7 Brand of engine: AQD70 From date: 01-03-1971 Fuel: Diesel Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 6.7 Brand of engine: TMD70 From date: 01-12-1972 Fuel: Diesel Approved: Yes
    Volvo Penta Series: Industri Model: D 42 A, A-PP (24V)
    Volvo Penta Series: Industri Model: D 50 A
    Volvo Penta Series: Industri Model: D 70 A, B
    Volvo Penta Series: Industri Model: D 70 B / PP Engine volume: 6.7 Year: 06.82-04.83
    Volvo Penta Series: Industri Model: TD 60 B (24V-5.4kW, 2-pol)
    Volvo Penta Series: Industri Model: TD 60 B, 70 B
    Volvo Penta Series: Industri Model: TD 60 D (24V-5.4kW, 2-pol)
    Volvo Penta Series: Industri Model: TD 61 A / ACE / AW (24V)
    Volvo Penta Series: Industri Model: TD 610 G / M / V (24V)
    Volvo Penta Series: Industri Model: TD 630 ME / VE (24V)
    Volvo Penta Series: Industri Model: TD 71 A / ACE / AW (24V)
    Volvo Penta Series: Industri Model: TD 710 G (24V)
    Volvo Penta Series: Industri Model: TD 73 ES Engine type: 24V
    Volvo Penta Series: Industri Model: TD 730 VE (24V)
    Volvo Penta Series: Industri Model: TID 61 (24V)
    Volvo Penta Series: Industri Model: TID 71 (24V)
    Volvo Penta Series: Industri Model: TWD 61 P (24V)
    Volvo Penta Series: Industri Model: TWD 610 G / M / V (24V)
    Volvo Penta Series: Industri Model: TWD 630 ME / VE (24V)
    Volvo Penta Series: Industri Model: TWD 710 P / V (24V)
    Volvo Penta Series: Industri Model: TWD 730 ME (24V)
    Volvo Penta Series: Industri Model: TWD 731 VE (24V)
    Volvo Penta Series: Marin Model: AQD 70 B, D
    Volvo Penta Series: Marin Model: MD 42 A
    Volvo Penta Series: Marin Model: MD 50 A
    Volvo Penta Series: Marin Model: MD 70 A, B, C
    Volvo Penta Series: Marin Model: TAMD 60 A, B
    Volvo Penta Series: Marin Model: TAMD 61 A (24V)
    Volvo Penta Series: Marin Model: TAMD 63 L-A, P-A (24V)
    Volvo Penta Series: Marin Model: TAMD 70 B
    Volvo Penta Series: Marin Model: TAMD 70 C, D, E
    Volvo Penta Series: Marin Model: TAMD 71 B Engine type: 24V - 5.4kW
    Volvo Penta Series: Marin Model: TAMD 73 P-A, WJ-A Engine type: 24V - 5.4kW
    Volvo Penta Series: Marin Model: TAMD 74..., 75... 24V
    Volvo Penta Series: Marin Model: THAMD 70 B, C
    Volvo Penta Series: Marin Model: TM 70 B
    Volvo Penta Series: Marin Model: TMD 50 A
    Volvo Penta Series: Marin Model: TMD 70 A, B, C
    Volvo Penta Series: Marin Model: TMD 70C-C Engine volume: 6.7 Year: 06.82-
