Varenr.: F032111219

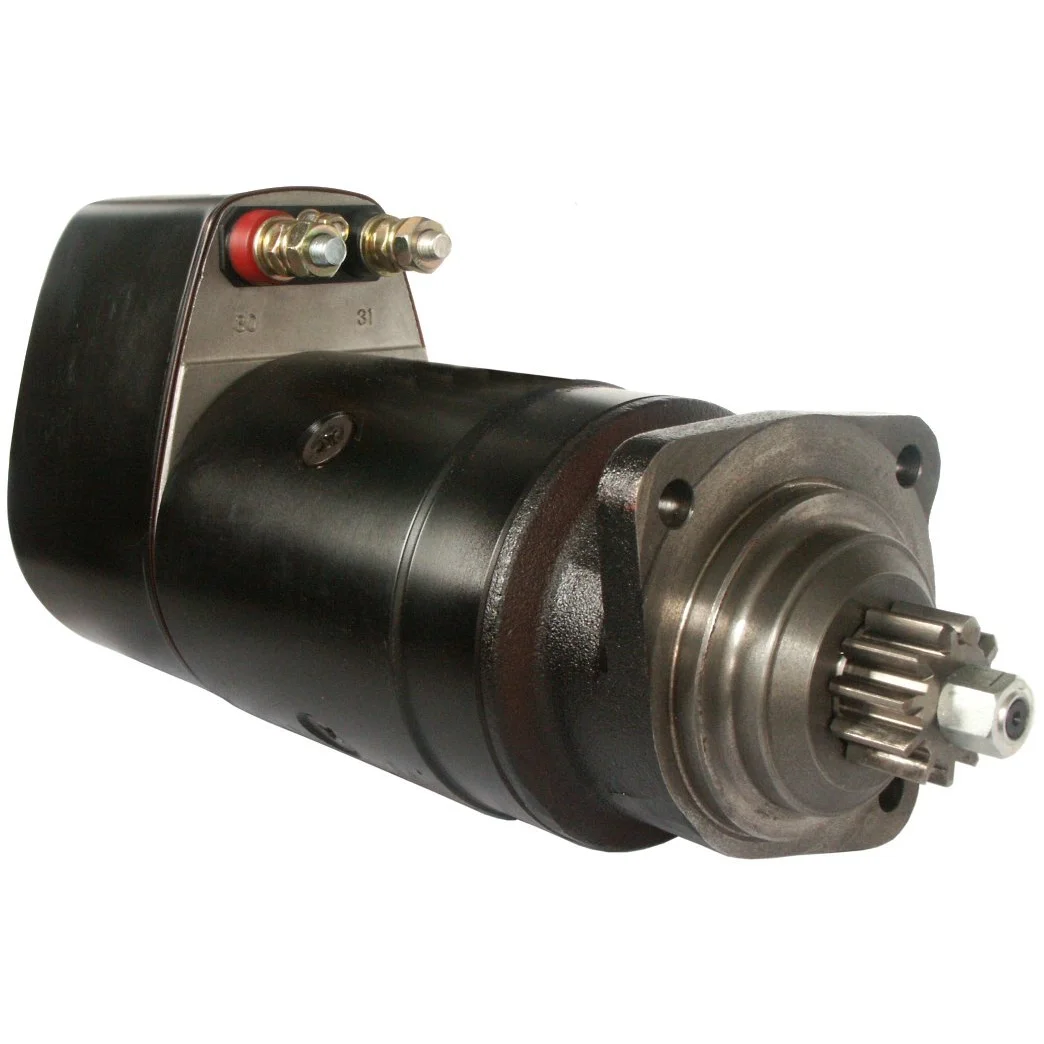

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 24, kW: 6.6, No./tenner: 11, Rotasjon: medur (CW)

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 24
kW: 6.6
Isolert retur: Ja
Festebolt: 89.00
Drivingsavstand: 47.50
Festeboring 3 mm: 11.00
Festeboring 2 mm: 11.00
Festeboring 1 mm: 11.00
Avstand/bak: 323.00
Avstand/framp: 62.00
Antall/tanner: 11
B+: M10
Posisjon/B+: 55
Posisjon/50: 60
Terminal 50: M6
Girtype: DD
Avstand 2: 127.00
Avstand 3: 90.00
Avstand mm: 90.00
Rotasjon: CW
Posisjon/b-: 5
B-: M10
Total lengde mm: 385.00
Drivningstype: Stål
Prod. info: BN
Vanntett: Nei
Oljeisolert: Nei
Antall/festeboringer: 3 (0)

Filer

Spesifikasjon

B+ M10
B- M10
No./teeth 11
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 60
Position/b- 5
Position/B+ 55
Prod. info BN
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 323.00
Dist./front 62.00
Drive dist. 47.50
Drive type Steel
Gear type DD
Insulated return Yes
kW 6.6
Terminal 50 M6
Voltage 24
Total length 385.00 mm
Waterproof No
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032111219, R23.27, 335, 553, 623, 10800, 240347, 298386, 847308, 847330, 860541, 870870, 870998, 881682, 881684, 0001410010, 0001410050, 0001411010, 0001415021, 0001416053, 0001417023, 3803598, 6240000, 6270000, 9125490, 19024047, 19024063, 81467023, 9000847308, 9000847330

  • Konkurrentreferens
    CST10635, CST10698, drs1440, DRS3763, F042002114, F042002133, F042S02114, F042S02133, IS9054, IS9078, MS543, MS565, MS712, S0009, STR-2396, STR50256, 8EA012586-161, 45-1271, 638.003.114, 638.018.114, 4164, 10954, 18220, 33670, 104008, 220246, 220246A, 220294, 220294A, 220319, 220319A, 11090077

  • NormaliseratArtNr
    cst10635, cst10698, drs1440, drs3763, f032111219, f042002114, f042002133, f042s02114, f042s02133, is9054, is9078, ms543, ms565, ms712, r2327, s0009, str2396, str50256, 8ea012586161, 335, 553, 623, 4164, 10800, 10954, 18220, 33670, 104008, 220246, 220246a, 220294, 220294a, 220319, 220319a, 240347, 298386, 451271, 847308, 847330, 860541, 870870, 870998, 881682, 881684, 0001410010, 0001410050, 0001411010, 0001415021, 0001416053, 0001417023, 3803598, 6240000, 6270000, 9125490, 11090077, 19024047, 19024063, 81467023, 638003114, 638018114, 9000847308, 9000847330

  • Passar modeller
    Volvo Model: F 10 Model series: F 10/270 Size of motor: 9.6 Brand of engine: TD100GA Body: Dump Truck From date: 01-01-1976 To date: 01-12-1983 Fuel: Diesel Approved: Yes
    Volvo Model: F 10 Model series: F 10/270 Size of motor: 9.6 Brand of engine: TD100GA Body: Platform / Chassis From date: 01-01-1976 To date: 01-12-1983 Fuel: Diesel Approved: Yes
    Volvo Model: F 10 Model series: F 10/270 Size of motor: 9.6 Brand of engine: TD101GA Body: Dump Truck From date: 01-01-1984 To date: 01-12-1986 Fuel: Diesel Approved: Yes
    Volvo Model: F 10 Model series: F 10/270 Size of motor: 9.6 Brand of engine: TD101GA Body: Platform / Chassis From date: 01-01-1984 To date: 01-12-1986 Fuel: Diesel Approved: Yes
    Volvo Model: F 10 Model series: F 10/270 Size of motor: 9.6 Brand of engine: TD101GA Body: Truck Tractor From date: 01-01-1984 To date: 01-12-1986 Fuel: Diesel Approved: Yes
    Volvo Model: F 10 Model series: F 10/300 Size of motor: 9.6 Brand of engine: TD101FA Body: Dump Truck From date: 01-01-1984 To date: 01-12-1986 Fuel: Diesel Approved: Yes
    Volvo Model: F 10 Model series: F 10/300 Size of motor: 9.6 Brand of engine: TD101FA Body: Platform / Chassis From date: 01-01-1984 To date: 01-12-1986 Fuel: Diesel Approved: Yes
    Volvo Model: F 10 Model series: F 10/300 Size of motor: 9.6 Brand of engine: TD101FA Body: Truck Tractor From date: 01-01-1984 To date: 01-12-1986 Fuel: Diesel Approved: Yes
    Volvo Model: F 10 Model series: F 10/310 Size of motor: 9.6 Brand of engine: TD102F Body: Dump Truck From date: 01-01-1987 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    Volvo Model: F 10 Model series: F 10/310 Size of motor: 9.6 Brand of engine: TD102F Body: Platform / Chassis From date: 01-01-1987 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    Volvo Model: F 10 Model series: F 10/310 Size of motor: 9.6 Brand of engine: TD102F Body: Truck Tractor From date: 01-01-1987 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    Volvo Model: F 10 Model series: F 10/310 Size of motor: 9.6 Brand of engine: TD102FM Body: Dump Truck From date: 01-01-1987 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    Volvo Model: F 10 Model series: F 10/310 Size of motor: 9.6 Brand of engine: TD102FM Body: Platform / Chassis From date: 01-01-1987 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    Volvo Model: F 10 Model series: F 10/310 Size of motor: 9.6 Brand of engine: TD102FM Body: Truck Tractor From date: 01-01-1987 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    Volvo Model: F 10 Model series: F 10/320 Size of motor: 9.6 Brand of engine: TD102FD Body: Platform / Chassis From date: 01-01-1987 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    Volvo Model: F 10 Model series: F 10/320 Size of motor: 9.6 Brand of engine: TD102FD Body: Truck Tractor From date: 01-01-1987 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    Volvo Model: F 10 Model series: F 10/320 Size of motor: 9.6 Brand of engine: TD102FF Body: Platform / Chassis From date: 01-01-1987 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    Volvo Model: F 10 Model series: F 10/320 Size of motor: 9.6 Brand of engine: TD102FF Body: Truck Tractor From date: 01-01-1987 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    Volvo Model: F 10 Model series: F 10/320 Size of motor: 9.6 Brand of engine: TD102FL Body: Platform / Chassis From date: 01-01-1987 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    Volvo Model: F 10 Model series: F 10/320 Size of motor: 9.6 Brand of engine: TD102FL Body: Truck Tractor From date: 01-01-1987 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    Volvo Model: F 10 Model series: F 10/320 Size of motor: 9.6 Brand of engine: TD103ES Body: Platform / Chassis From date: 01-01-1987 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    Volvo Model: F 10 Model series: F 10/320 Size of motor: 9.6 Brand of engine: TD103ES Body: Truck Tractor From date: 01-01-1987 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    Volvo Model: FL 10 Series Model series: FL 10/320 Size of motor: 9.6 Brand of engine: D10A320 Body: Platform / Chassis From date: 01-12-1995 To date: 01-09-1998 Fuel: Diesel Approved: Yes
    Volvo Model: FL 10 Series Model series: FL 10/360 Size of motor: 9.6 Brand of engine: D10A360 Body: Platform / Chassis From date: 01-12-1995 To date: 01-09-1998 Fuel: Diesel Approved: Yes
    Volvo Penta Model: Engine Model series: Various Models Approved: Yes
