Varenr.: F032113353

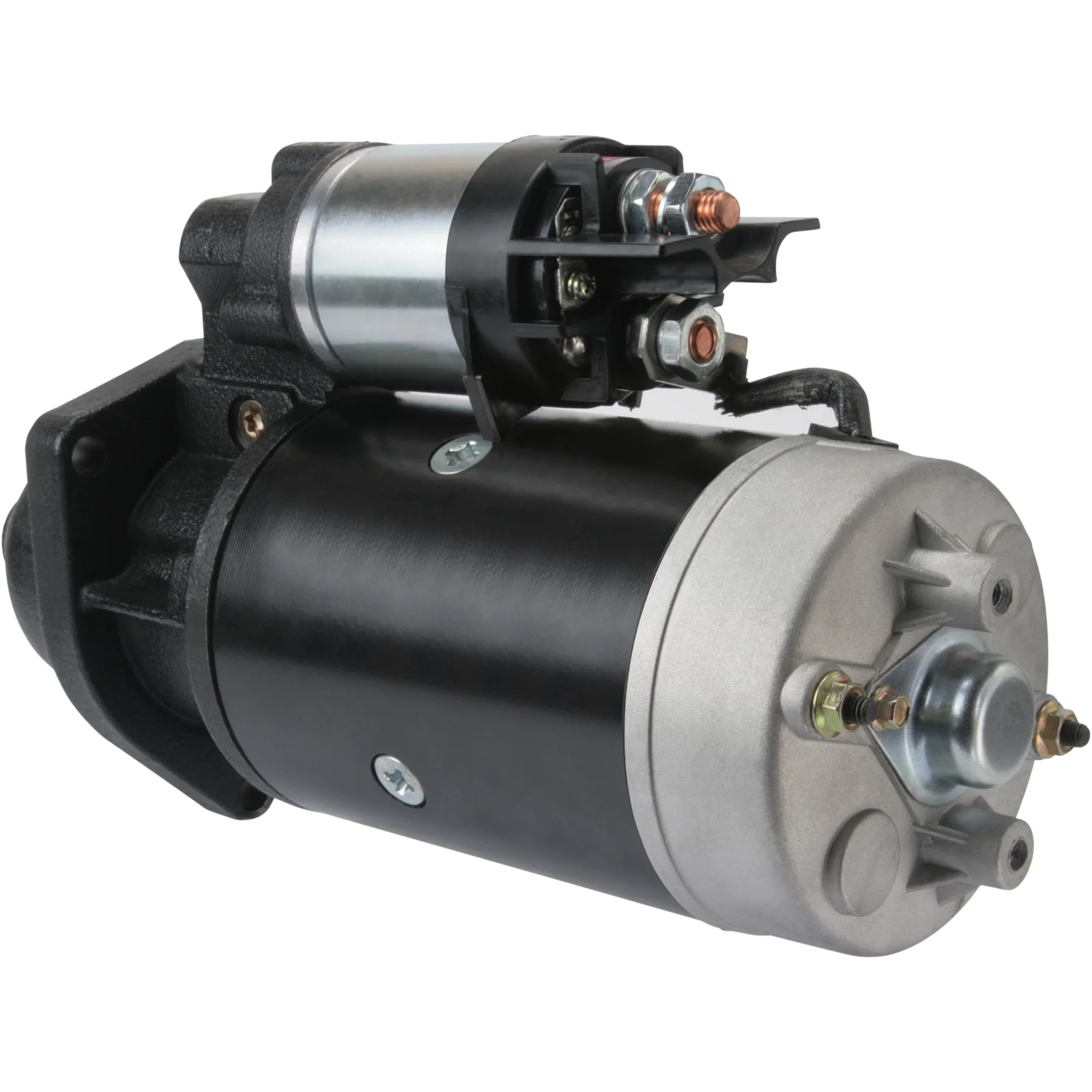

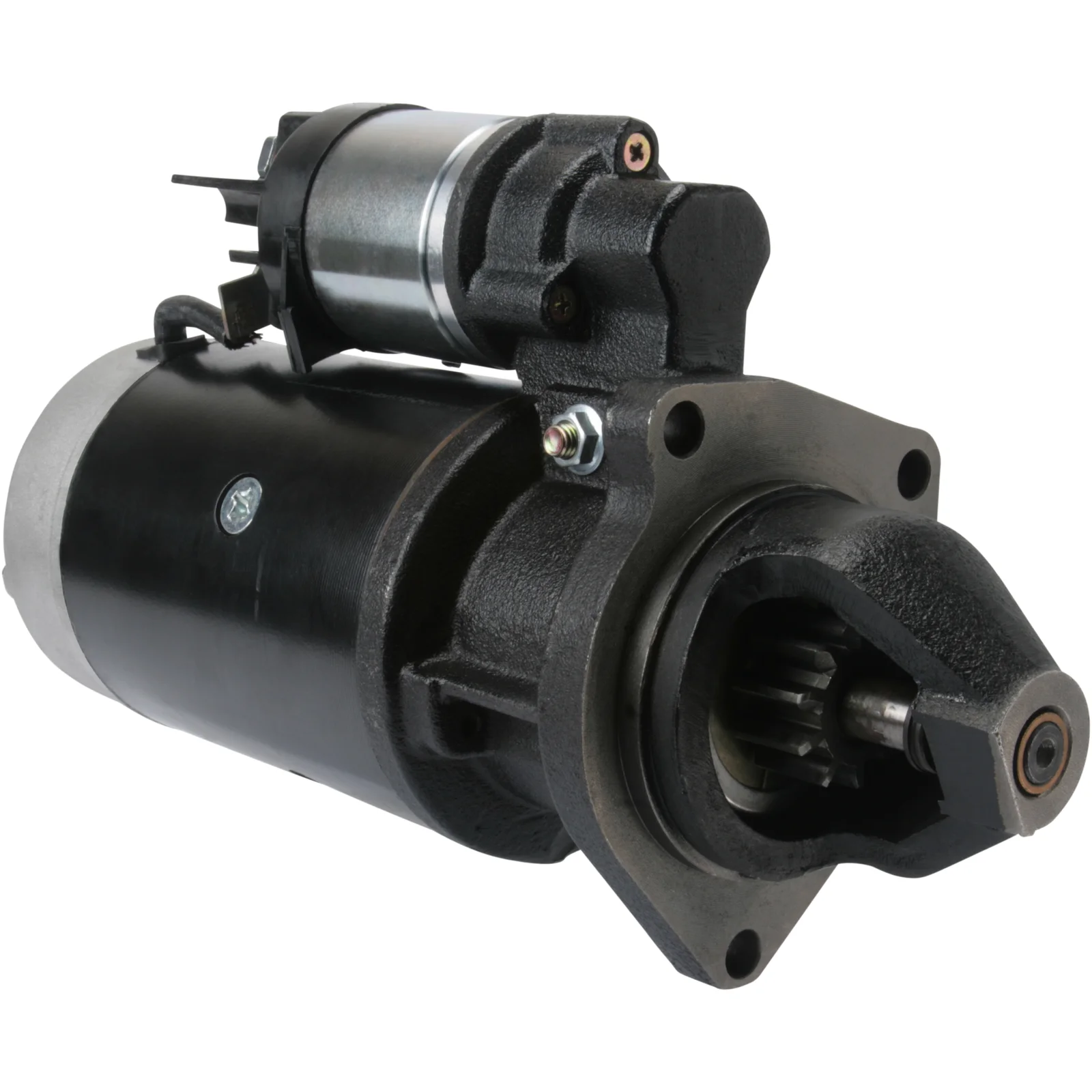

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 24, kW: 4.0, Antall/tenner: 10, Rotasjon: Medurs

Beskrivelse

Spenning: 24
kW: 4,0
Monteringsflens: 89,00
Drivningsavstand: 27,50
Monteringshull 3 mm: 11,00
Monteringshull 2 mm: 11,00
Monteringshull 1 mm: 11,00
Avstand / bak: 265,00
Avstand / foran: 75,00
Antall / tenner: 10
B+: M10
Posisjon / 50: 45
Terminal 50: M4
Gavl type: DD
Avstand 2: 124,00
Avstand 3: 78,00
Avstand mm: 117,00
Rotasjon: CW
Total lengde mm: 340,00
Drevtype: Stål
Prod. info: BN/OE
Vannmotstandig: Nei
Olje-isolert: Nei
Antall / monteringshull: 3 (0)

Spesifikasjon

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 45
Prod. info BN/OE
Dist. 2 124.00
Dist. 3 78.00
Rotation CW
Dist./back 265.00
Dist./front 75.00
Drive dist. 27.50
Drive type Steel
Gear type DD
kW 4.0
Terminal 50 M4
Voltage 24
Total length 340.00 mm
Waterproof No
Dist. 117.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm
  • OEM

    cs1280, F032113353, 51.26201-7146, 0001368311
  • Konkurrentreferens

    LRS02653, 45-4325, 600.240.104, 101280, 104373, 11090052
  • NormaliseratArtNr

    cs1280, f032113353, lrs02653, 101280, 104373, 454325, 0001368311, 11090052, 600240104, 51262017146
  • Passar modeller

    Fendt Model: 800 Model series: 800 Series Size of motor: 6.9 Brand of engine: D286.. From date: 01-06-1993 Fuel: Diesel Approved: Yes
    Fendt Model: 900 Model series: 900 Series Approved: Yes
  • Beskrivelse
    Spenning: 24
    kW: 4,0
    Monteringsflens: 89,00
    Drivningsavstand: 27,50
    Monteringshull 3 mm: 11,00
    Monteringshull 2 mm: 11,00
    Monteringshull 1 mm: 11,00
    Avstand / bak: 265,00
    Avstand / foran: 75,00
    Antall / tenner: 10
    B+: M10
    Posisjon / 50: 45
    Terminal 50: M4
    Gavl type: DD
    Avstand 2: 124,00
    Avstand 3: 78,00
    Avstand mm: 117,00
    Rotasjon: CW
    Total lengde mm: 340,00
    Drevtype: Stål
    Prod. info: BN/OE
    Vannmotstandig: Nei
    Olje-isolert: Nei
    Antall / monteringshull: 3 (0)
  • Spesifikasjon
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 45
    Prod. info BN/OE
    Dist. 2 124.00
    Dist. 3 78.00
    Rotation CW
    Dist./back 265.00
    Dist./front 75.00
    Drive dist. 27.50
    Drive type Steel
    Gear type DD
    kW 4.0
    Terminal 50 M4
    Voltage 24
    Total length 340.00 mm
    Waterproof No
    Dist. 117.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching
    • OEM

      cs1280, F032113353, 51.26201-7146, 0001368311
    • Konkurrentreferens

      LRS02653, 45-4325, 600.240.104, 101280, 104373, 11090052
    • NormaliseratArtNr

      cs1280, f032113353, lrs02653, 101280, 104373, 454325, 0001368311, 11090052, 600240104, 51262017146
    • Passar modeller

      Fendt Model: 800 Model series: 800 Series Size of motor: 6.9 Brand of engine: D286.. From date: 01-06-1993 Fuel: Diesel Approved: Yes
      Fendt Model: 900 Model series: 900 Series Approved: Yes
