Varenr.: F032113859

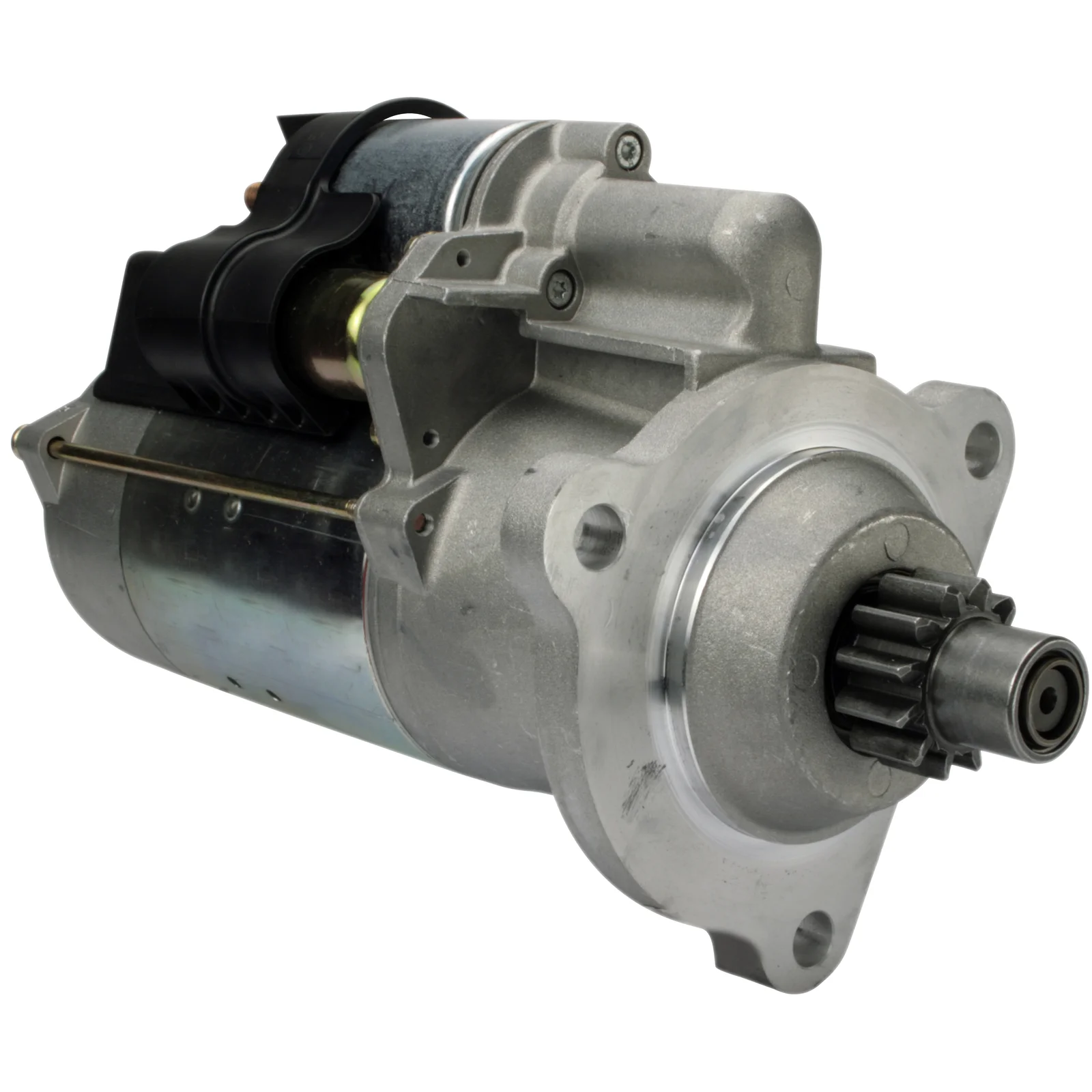

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 24, kW: 6.0, Antall/tannhjul: 12, Rotasjon: HØYRE (CW)

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 24
kW: 6.0
Monteringsflens: 92.00
Drivingsavstand: 48.00
Monteringshull 3 mm: 13.50
Monteringshull 2 mm: 13.50
Monteringshull 1 mm: 13.50
Avstand/bak: 272.50
Avstand/frem: 71.50
Nummer/tænder: 12
B+: M10
Posisjon/B+: 10
Posisjon/50: 55
Terminal 50: M6
Girtype: GR
Avstand 2: 126.50
Avstand 3: 126.50
Avstand mm: 126.50
Rotasjon: medurrett
Total lengde mm: 361.00
Koplingstype: Tørr
Dre-typ: Stål
Prod. info: BN
Vanntett: Nei
Oljeforseglet: Nei
Nummer/monteringshull: 3 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 12
Mount. flange 92.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 55
Clutch type Dry
Position/B+ 10
Prod. info BN
Dist. 2 126.50
Dist. 3 126.50
Rotation CW
Dist./back 272.50
Dist./front 71.50
Drive dist. 48.00
Drive type Steel
Gear type GR
kW 6.0
Terminal 50 M6
Voltage 24
Total length 361.00 mm
Waterproof No
Dist. 126.50 mm
Mount. hole 3 13.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    AZG4862, cs1400, F032113859, 11.139.607, 1986S10087, 571468, 0001330008, 1447912, 72442835

  • Konkurrentreferens
    CST10724, DRT2250, lrs02273, MS765, S0173, 45-3444, 332.011.124, 101400, 220860, 220860A

  • NormaliseratArtNr
    azg4862, cs1400, cst10724, drt2250, f032113859, lrs02273, ms765, s0173, 1986s10087, 101400, 220860, 220860a, 453444, 571468, 0001330008, 1447912, 11139607, 72442835, 332011124

  • Passar modeller
    Scania Model: L,P,G,R,S - series Model series: R520 Size of motor: 16.4 Brand of engine: DC16.101 Body: Municipal Vehicle From date: 01-09-2016 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: R520 Size of motor: 16.4 Brand of engine: DC16.101 Body: Platform/Chassis From date: 01-09-2016 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: R520 Size of motor: 16.4 Brand of engine: DC16.101 Body: Truck Tractor From date: 01-09-2016 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: R530 Size of motor: 16.4 Brand of engine: DC16.120 Body: Platform/Chassis From date: 01-10-2020 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: R530 Size of motor: 16.4 Brand of engine: DC16.120 Body: Truck Tractor From date: 01-10-2020 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: R580 Size of motor: 16.4 Brand of engine: DC16.102 Body: Municipal Vehicle From date: 01-09-2016 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: R580 Size of motor: 16.4 Brand of engine: DC16.102 Body: Platform/Chassis From date: 01-09-2016 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: R580 Size of motor: 16.4 Brand of engine: DC16.102 Body: Truck Tractor From date: 01-09-2016 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: R590 Size of motor: 16.4 Brand of engine: DC16.121 Body: Platform/Chassis From date: 01-10-2020 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: R590 Size of motor: 16.4 Brand of engine: DC16.121 Body: Truck Tractor From date: 01-10-2020 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: R620 Size of motor: 16.4 Brand of engine: DC16.115 Body: Platform/Chassis From date: 01-10-2020 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: R620 Size of motor: 16.4 Brand of engine: DC16.115 Body: Truck Tractor From date: 01-10-2020 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: R650 Size of motor: 16.4 Brand of engine: DC16.118 Body: Truck Tractor From date: 01-01-2019 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: R660 Size of motor: 16.4 Brand of engine: DC16.122 Body: Platform/Chassis From date: 01-10-2020 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: R660 Size of motor: 16.4 Brand of engine: DC16.122 Body: Truck Tractor From date: 01-10-2020 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: R770 Size of motor: 16.4 Brand of engine: DC16.123 Body: Platform/Chassis From date: 01-10-2020 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: R770 Size of motor: 16.4 Brand of engine: DC16.123 Body: Truck Tractor From date: 01-10-2020 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: S530 Size of motor: 16.4 Brand of engine: DC16.120 Body: Platform/Chassis From date: 01-10-2020 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: S530 Size of motor: 16.4 Brand of engine: DC16.120 Body: Truck Tractor From date: 01-10-2020 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: S590 Size of motor: 16.4 Brand of engine: DC16.121 Body: Platform/Chassis From date: 01-10-2020 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: S590 Size of motor: 16.4 Brand of engine: DC16.121 Body: Truck Tractor From date: 01-10-2020 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: S620 Size of motor: 16.4 Brand of engine: DC16.115 Body: Platform/Chassis From date: 01-10-2020 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: S620 Size of motor: 16.4 Brand of engine: DC16.115 Body: Truck Tractor From date: 01-10-2020 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: S660 Size of motor: 16.4 Brand of engine: DC16.122 Body: Platform/Chassis From date: 01-10-2020 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: S660 Size of motor: 16.4 Brand of engine: DC16.122 Body: Truck Tractor From date: 01-10-2020 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: S730 Size of motor: 16.4 Brand of engine: DC16.108, DC16.107 Body: Truck Tractor From date: 01-09-2016 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: S770 Size of motor: 16.4 Brand of engine: DC16.123 Body: Platform/Chassis From date: 01-10-2020 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: S770 Size of motor: 16.4 Brand of engine: DC16.123 Body: Truck Tractor From date: 01-10-2020 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.04 Body: Platform / Chassis From date: 01-01-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.04 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.04 Body: Platform / Chassis From date: 01-04-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.04 Body: Semi-Trailer From date: 01-01-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.04 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.04 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.06 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.06 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.06 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.09 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.09 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.09 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.19 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Platform / Chassis From date: 01-09-2006 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Semi-Trailer From date: 01-03-2008 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Semi-Trailer From date: 01-09-2006 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Semi-Trailer From date: 01-11-2006 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Semi-Trailer Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.18 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.18 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.18 Body: Semi-Trailer From date: 01-03-2008 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.18 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.18 Body: Semi-Trailer From date: 01-11-2006 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 580 Size of motor: 15.6 Brand of engine: DC16.03 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 580 Size of motor: 15.6 Brand of engine: DC16.03 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 580 Size of motor: 15.6 Brand of engine: DC16.03 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Platform / Chassis From date: 01-10-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-03-2008 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-08-2006 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-09-2005 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-10-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-11-2006 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Semi-Trailer From date: 01-03-2008 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Semi-Trailer From date: 01-08-2006 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Semi-Trailer From date: 01-11-2006 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DT16.08 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Dump Truck From date: 01-10-2010 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Platform / Chassis From date: 01-04-2010 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Platform / Chassis From date: 01-10-2010 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Semi-Trailer From date: 01-04-2010 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Semi-Trailer From date: 01-10-2010 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: R 500 Size of motor: 15.6 Brand of engine: DC16.04 Body: Dump Truck From date: 01-01-2008 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: R 520 Size of motor: 16.4 Brand of engine: DC16.101 Body: Dump Truck From date: 01-07-2013 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: R 520 Size of motor: 16.4 Brand of engine: DC16.101 Body: Platform / Chassis From date: 01-07-2013 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: R 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Platform / Chassis From date: 01-09-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: R 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Dump Truck From date: 01-11-2006 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: R 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Platform / Chassis From date: 01-11-2006 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: R 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-09-2005 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: R 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Dump Truck From date: 01-11-2006 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: R 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Platform / Chassis From date: 01-11-2006 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: R 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Semi-Trailer From date: 01-11-2006 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: R 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Dump Truck From date: 01-04-2010 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: R 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Platform / Chassis From date: 01-04-2010 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: R 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Platform / Chassis From date: 01-10-2010 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: R 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Semi-Trailer From date: 01-10-2010 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: R580 Size of motor: 16.4 Brand of engine: DC16.102 Body: Dump Truck From date: 01-01-2014 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: R580 Size of motor: 16.4 Brand of engine: DC16.102 Body: Dump Truck From date: 01-09-2013 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: R580 Size of motor: 16.4 Brand of engine: DC16.102 Body: Platform / Chassis From date: 01-01-2014 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: R580 Size of motor: 16.4 Brand of engine: DC16.102 Body: Platform / Chassis From date: 01-09-2013 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: R580 Size of motor: 16.4 Brand of engine: DC16.102 Body: Semi-Trailer From date: 01-09-2013 Fuel: Diesel Approved: Yes
    Scania Model: S - Series Model series: 520 Size of motor: 16.4 Brand of engine: DC16.101 Body: Semi-Trailer From date: 01-08-2016 Fuel: Diesel Approved: Yes
    Scania Model: S - Series Model series: 580 Size of motor: 16.4 Brand of engine: DC16.102 Body: Semi-Trailer From date: 01-08-2016 Fuel: Diesel Approved: Yes
    Scania Model: S - Series Model series: 730 Size of motor: 16.4 Brand of engine: DC16.103 Body: Semi-Trailer From date: 01-08-2016 Fuel: Diesel Approved: Yes
    1 / 20
  • Beskrivelse
    Spenning: 24
    kW: 6.0
    Monteringsflens: 92.00
    Drivingsavstand: 48.00
    Monteringshull 3 mm: 13.50
    Monteringshull 2 mm: 13.50
    Monteringshull 1 mm: 13.50
    Avstand/bak: 272.50
    Avstand/frem: 71.50
    Nummer/tænder: 12
    B+: M10
    Posisjon/B+: 10
    Posisjon/50: 55
    Terminal 50: M6
    Girtype: GR
    Avstand 2: 126.50
    Avstand 3: 126.50
    Avstand mm: 126.50
    Rotasjon: medurrett
    Total lengde mm: 361.00
    Koplingstype: Tørr
    Dre-typ: Stål
    Prod. info: BN
    Vanntett: Nei
    Oljeforseglet: Nei
    Nummer/monteringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 12
    Mount. flange 92.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 55
    Clutch type Dry
    Position/B+ 10
    Prod. info BN
    Dist. 2 126.50
    Dist. 3 126.50
    Rotation CW
    Dist./back 272.50
    Dist./front 71.50
    Drive dist. 48.00
    Drive type Steel
    Gear type GR
    kW 6.0
    Terminal 50 M6
    Voltage 24
    Total length 361.00 mm
    Waterproof No
    Dist. 126.50 mm
    Mount. hole 3 13.50 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Kjøretøymatching

    • OEM
      AZG4862, cs1400, F032113859, 11.139.607, 1986S10087, 571468, 0001330008, 1447912, 72442835

    • Konkurrentreferens
      CST10724, DRT2250, lrs02273, MS765, S0173, 45-3444, 332.011.124, 101400, 220860, 220860A

    • NormaliseratArtNr
      azg4862, cs1400, cst10724, drt2250, f032113859, lrs02273, ms765, s0173, 1986s10087, 101400, 220860, 220860a, 453444, 571468, 0001330008, 1447912, 11139607, 72442835, 332011124

    • Passar modeller
      Scania Model: L,P,G,R,S - series Model series: R520 Size of motor: 16.4 Brand of engine: DC16.101 Body: Municipal Vehicle From date: 01-09-2016 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: R520 Size of motor: 16.4 Brand of engine: DC16.101 Body: Platform/Chassis From date: 01-09-2016 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: R520 Size of motor: 16.4 Brand of engine: DC16.101 Body: Truck Tractor From date: 01-09-2016 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: R530 Size of motor: 16.4 Brand of engine: DC16.120 Body: Platform/Chassis From date: 01-10-2020 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: R530 Size of motor: 16.4 Brand of engine: DC16.120 Body: Truck Tractor From date: 01-10-2020 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: R580 Size of motor: 16.4 Brand of engine: DC16.102 Body: Municipal Vehicle From date: 01-09-2016 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: R580 Size of motor: 16.4 Brand of engine: DC16.102 Body: Platform/Chassis From date: 01-09-2016 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: R580 Size of motor: 16.4 Brand of engine: DC16.102 Body: Truck Tractor From date: 01-09-2016 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: R590 Size of motor: 16.4 Brand of engine: DC16.121 Body: Platform/Chassis From date: 01-10-2020 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: R590 Size of motor: 16.4 Brand of engine: DC16.121 Body: Truck Tractor From date: 01-10-2020 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: R620 Size of motor: 16.4 Brand of engine: DC16.115 Body: Platform/Chassis From date: 01-10-2020 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: R620 Size of motor: 16.4 Brand of engine: DC16.115 Body: Truck Tractor From date: 01-10-2020 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: R650 Size of motor: 16.4 Brand of engine: DC16.118 Body: Truck Tractor From date: 01-01-2019 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: R660 Size of motor: 16.4 Brand of engine: DC16.122 Body: Platform/Chassis From date: 01-10-2020 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: R660 Size of motor: 16.4 Brand of engine: DC16.122 Body: Truck Tractor From date: 01-10-2020 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: R770 Size of motor: 16.4 Brand of engine: DC16.123 Body: Platform/Chassis From date: 01-10-2020 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: R770 Size of motor: 16.4 Brand of engine: DC16.123 Body: Truck Tractor From date: 01-10-2020 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: S530 Size of motor: 16.4 Brand of engine: DC16.120 Body: Platform/Chassis From date: 01-10-2020 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: S530 Size of motor: 16.4 Brand of engine: DC16.120 Body: Truck Tractor From date: 01-10-2020 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: S590 Size of motor: 16.4 Brand of engine: DC16.121 Body: Platform/Chassis From date: 01-10-2020 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: S590 Size of motor: 16.4 Brand of engine: DC16.121 Body: Truck Tractor From date: 01-10-2020 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: S620 Size of motor: 16.4 Brand of engine: DC16.115 Body: Platform/Chassis From date: 01-10-2020 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: S620 Size of motor: 16.4 Brand of engine: DC16.115 Body: Truck Tractor From date: 01-10-2020 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: S660 Size of motor: 16.4 Brand of engine: DC16.122 Body: Platform/Chassis From date: 01-10-2020 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: S660 Size of motor: 16.4 Brand of engine: DC16.122 Body: Truck Tractor From date: 01-10-2020 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: S730 Size of motor: 16.4 Brand of engine: DC16.108, DC16.107 Body: Truck Tractor From date: 01-09-2016 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: S770 Size of motor: 16.4 Brand of engine: DC16.123 Body: Platform/Chassis From date: 01-10-2020 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: S770 Size of motor: 16.4 Brand of engine: DC16.123 Body: Truck Tractor From date: 01-10-2020 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.04 Body: Platform / Chassis From date: 01-01-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.04 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.04 Body: Platform / Chassis From date: 01-04-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.04 Body: Semi-Trailer From date: 01-01-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.04 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.04 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.06 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.06 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.06 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.09 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.09 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.09 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.19 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Platform / Chassis From date: 01-09-2006 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Semi-Trailer From date: 01-03-2008 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Semi-Trailer From date: 01-09-2006 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Semi-Trailer From date: 01-11-2006 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Semi-Trailer Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.18 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.18 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.18 Body: Semi-Trailer From date: 01-03-2008 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.18 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.18 Body: Semi-Trailer From date: 01-11-2006 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 580 Size of motor: 15.6 Brand of engine: DC16.03 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 580 Size of motor: 15.6 Brand of engine: DC16.03 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 580 Size of motor: 15.6 Brand of engine: DC16.03 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Platform / Chassis From date: 01-10-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-03-2008 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-08-2006 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-09-2005 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-10-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-11-2006 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Semi-Trailer From date: 01-03-2008 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Semi-Trailer From date: 01-08-2006 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Semi-Trailer From date: 01-11-2006 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DT16.08 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Dump Truck From date: 01-10-2010 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Platform / Chassis From date: 01-04-2010 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Platform / Chassis From date: 01-10-2010 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Semi-Trailer From date: 01-04-2010 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Semi-Trailer From date: 01-10-2010 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: R 500 Size of motor: 15.6 Brand of engine: DC16.04 Body: Dump Truck From date: 01-01-2008 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: R 520 Size of motor: 16.4 Brand of engine: DC16.101 Body: Dump Truck From date: 01-07-2013 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: R 520 Size of motor: 16.4 Brand of engine: DC16.101 Body: Platform / Chassis From date: 01-07-2013 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: R 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Platform / Chassis From date: 01-09-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: R 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Dump Truck From date: 01-11-2006 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: R 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Platform / Chassis From date: 01-11-2006 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: R 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-09-2005 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: R 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Dump Truck From date: 01-11-2006 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: R 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Platform / Chassis From date: 01-11-2006 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: R 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Semi-Trailer From date: 01-11-2006 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: R 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Dump Truck From date: 01-04-2010 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: R 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Platform / Chassis From date: 01-04-2010 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: R 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Platform / Chassis From date: 01-10-2010 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: R 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Semi-Trailer From date: 01-10-2010 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: R580 Size of motor: 16.4 Brand of engine: DC16.102 Body: Dump Truck From date: 01-01-2014 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: R580 Size of motor: 16.4 Brand of engine: DC16.102 Body: Dump Truck From date: 01-09-2013 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: R580 Size of motor: 16.4 Brand of engine: DC16.102 Body: Platform / Chassis From date: 01-01-2014 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: R580 Size of motor: 16.4 Brand of engine: DC16.102 Body: Platform / Chassis From date: 01-09-2013 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: R580 Size of motor: 16.4 Brand of engine: DC16.102 Body: Semi-Trailer From date: 01-09-2013 Fuel: Diesel Approved: Yes
      Scania Model: S - Series Model series: 520 Size of motor: 16.4 Brand of engine: DC16.101 Body: Semi-Trailer From date: 01-08-2016 Fuel: Diesel Approved: Yes
      Scania Model: S - Series Model series: 580 Size of motor: 16.4 Brand of engine: DC16.102 Body: Semi-Trailer From date: 01-08-2016 Fuel: Diesel Approved: Yes
      Scania Model: S - Series Model series: 730 Size of motor: 16.4 Brand of engine: DC16.103 Body: Semi-Trailer From date: 01-08-2016 Fuel: Diesel Approved: Yes
      1 / 20

Vi bruker informasjonskapsler for å gi deg den beste opplevelsen på nettstedet vårt. Du godtar bruken av informasjonskapsler ved å trykke OK og fortsette å bla gjennom nettstedet.
