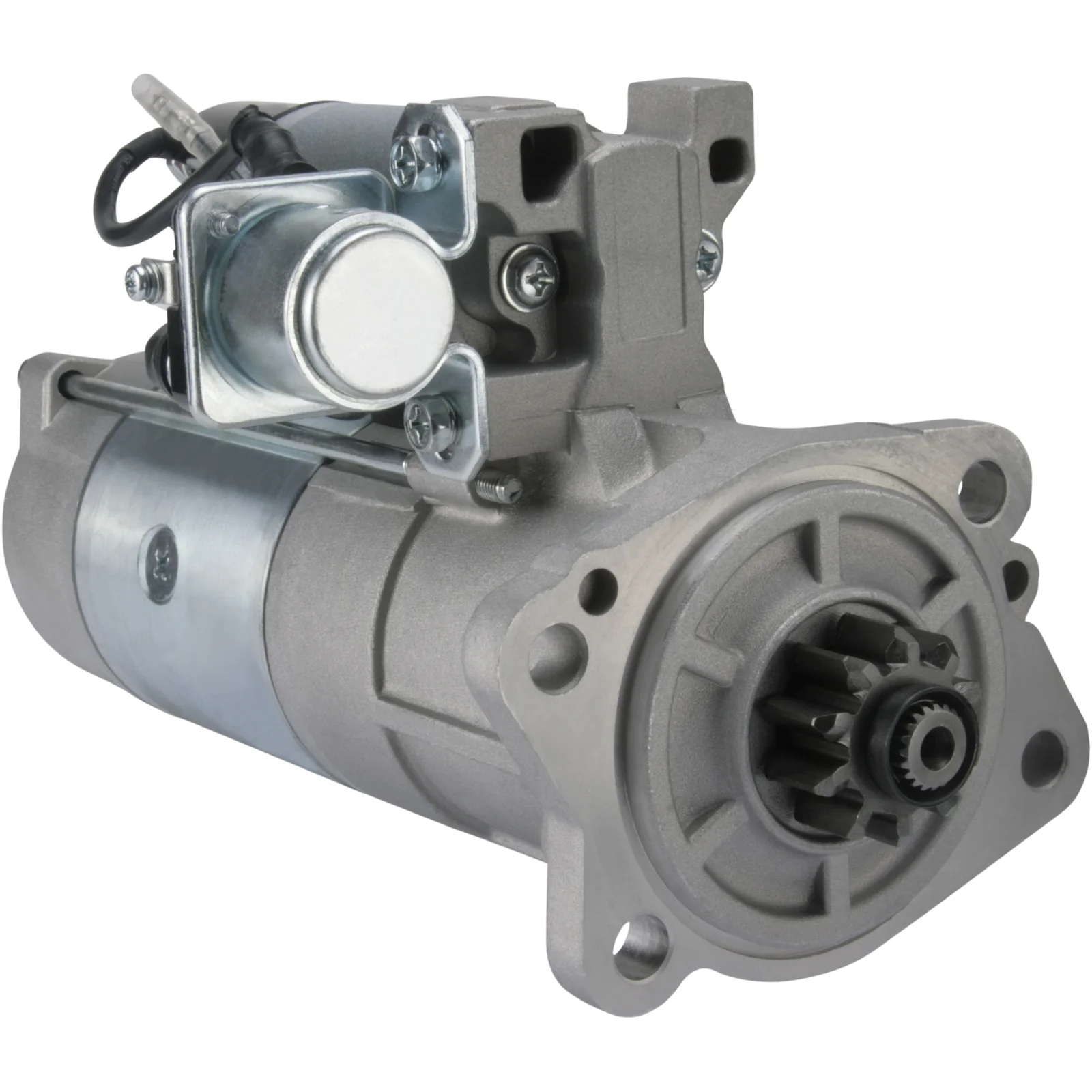

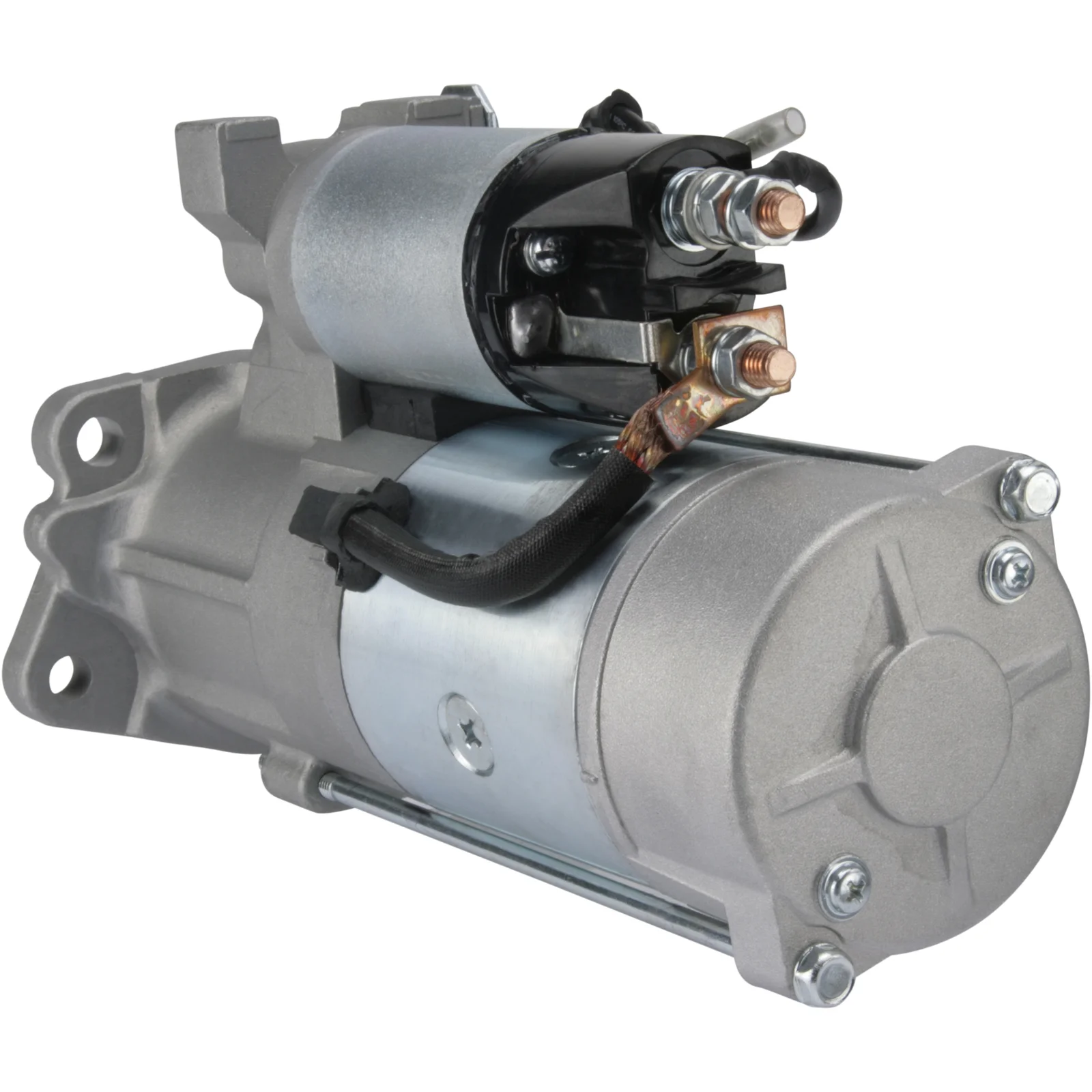

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114169

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 24, kW: 5.0, No./tenner: 10, Rotasjon: CW

Beskrivelse

Spenning: 24
kW: 5.0
Monteringsflens: 82.50
Drivingsavstand: 22.50
Monteringshull 4 mm: 10.50
Monteringshull 3 mm: 11.50
Monteringshull 2 mm: 10.50
Monteringshull 1 mm: 11.50
Avstand/tilbakeløp: 257.00
Avstand/frem: 31.00
Antall/tannter: 10
B+: M8
Posisjon/50: 15
Terminal 50: M4
Gavltype: GR
Avstand 2: 95.50
Avstand 3: 55.00
Avstand 4: 95.50
Avstand mm: 55.00
Rotasjon: medurrett
Total lengde mm: 287.50
Merknader: med startrelé
Antall/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 82.50
No./mount. holes 2 (0)
Position/50 15
Dist. 2 95.50
Remarks w/ start relay
Dist. 3 55.00
Dist. 4 95.50
Rotation CW
Dist./back 257.00
Dist./front 31.00
Drive dist. 22.50
Gear type GR
kW 5.0
Terminal 50 M4
Voltage 24
Total length 287.50 mm
Dist. 55.00 mm
Mount. hole 4 10.50 mm
Mount. hole 3 11.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 11.50 mm

  • OEM
    F032114169, M008T60371, M008T60372, M008T60373, m8t60371, m8t60372, m8t60373, m8t60374, 32B66-00200, 32b66-00202, 32b66-00204, 32B66-20100

  • Konkurrentreferens
    CST35613, DRS0077, F042001189, F042S01189, LRS02199, S5108, S5189, S5217, S9185, STR-7108, 45-3370, 151.538.102, 151.538.104, 18246N, 254090

  • NormaliseratArtNr
    cst35613, drs0077, f032114169, f042001189, f042s01189, lrs02199, m008t60371, m008t60372, m008t60373, m8t60371, m8t60372, m8t60373, m8t60374, s5108, s5189, s5217, s9185, str7108, 32b6600200, 32b6600202, 32b6600204, 32b6620100, 18246n, 254090, 453370, 151538102, 151538104

  • Passar modeller
    Caterpillar Model: DP40 Model series: DP40 Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD35D Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD35D2 Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD35DS Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD38 Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD40D Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD45D Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD50C Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD50D Brand of engine: S6E/S6S Approved: Yes
