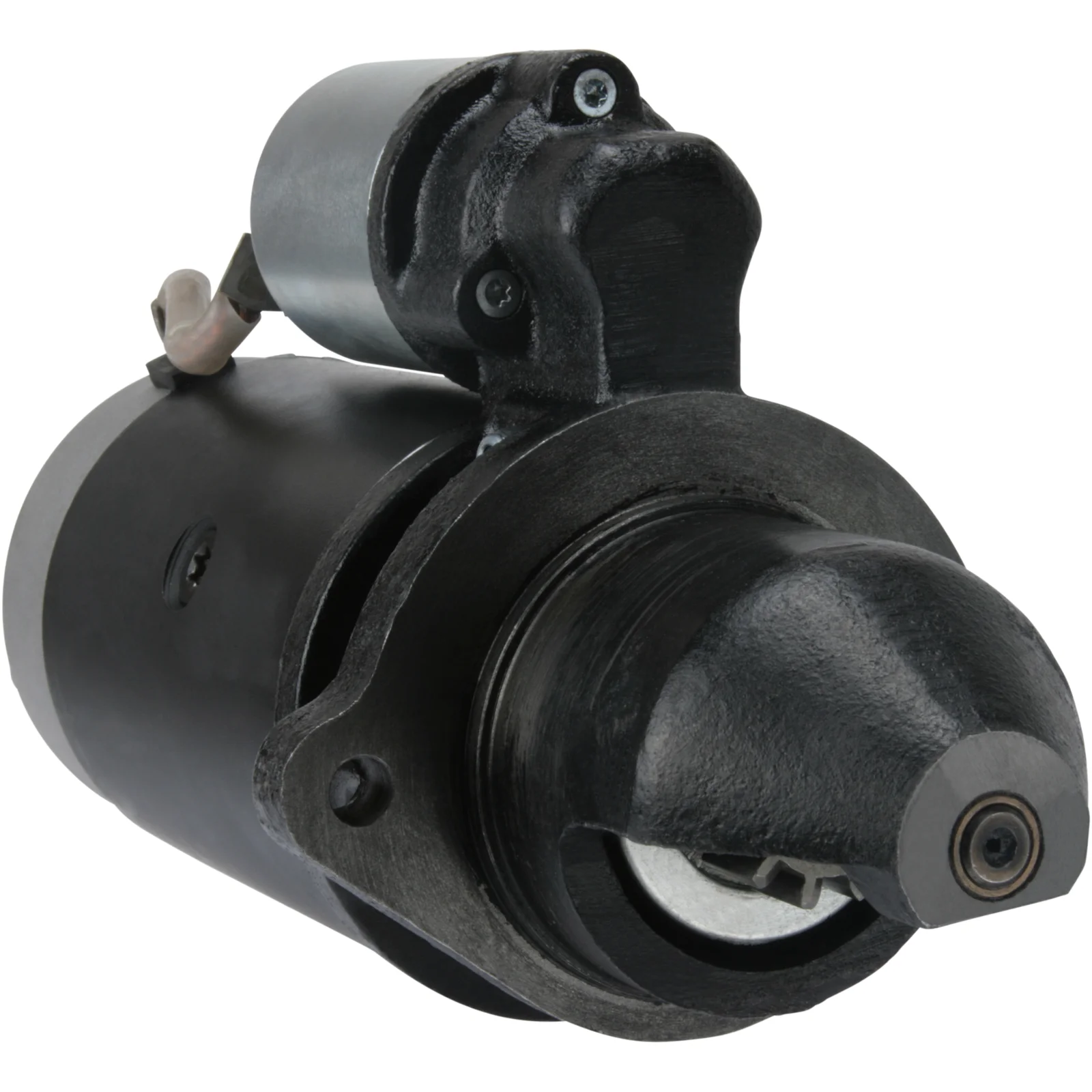

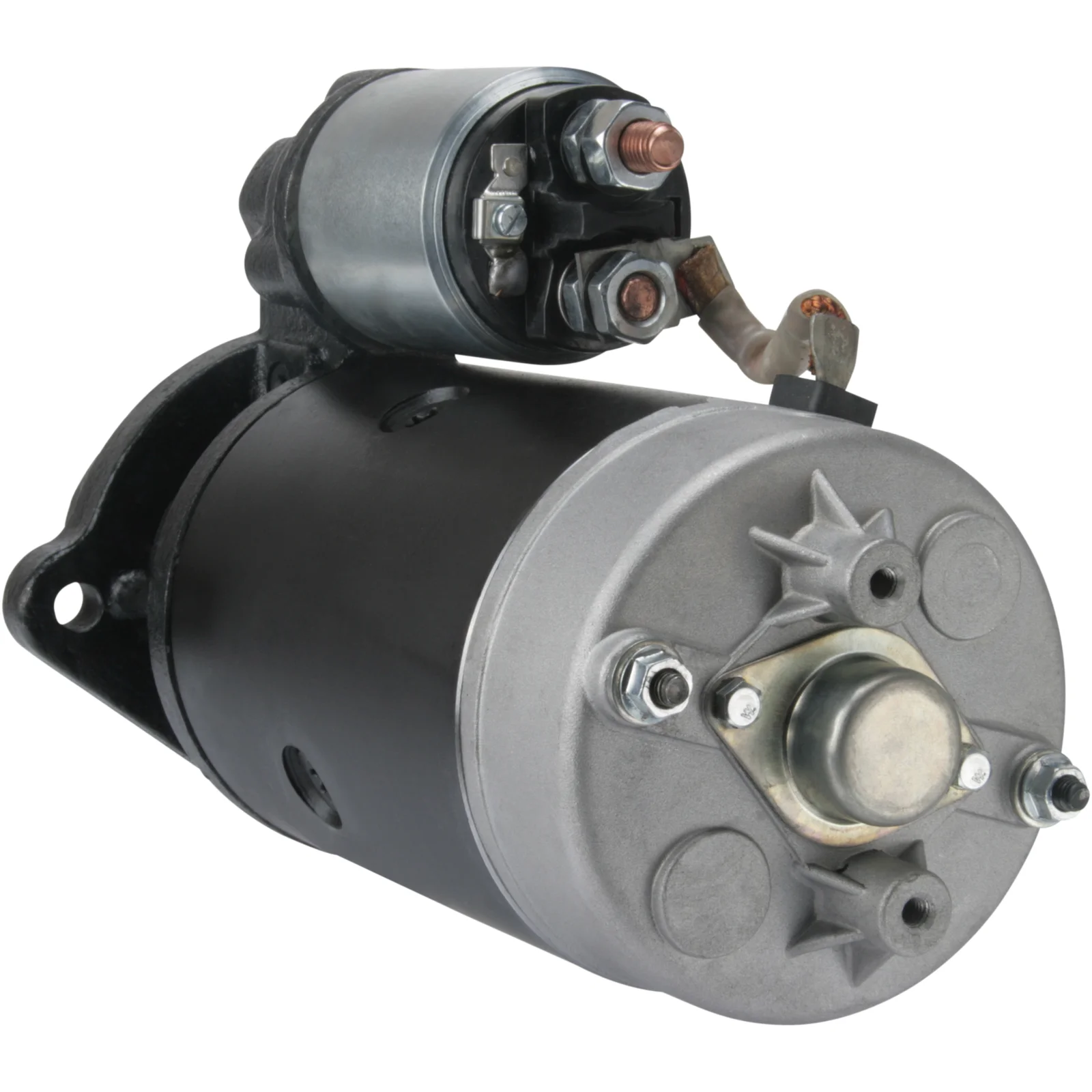

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114170

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 24, kW: 4.0, Ant./tenner: 11, Roter.: CW

Beskrivelse

Spenning: 24
kW: 4.0
Monteringsflens: 89.00
Drevavstand: 48.00
Monteringshull 2 mm: 11.00
Monteringshull 1 mm: 11.00
Avstand/bak: 237.00
Avstand/frem: 94.50
Nummer/tannhjul: 11
B+: M10
Posisjon/50: 45
Terminal 50: M4
Girtype: DD
Avstand mm: 127.00
Rotasjon: CW
Total lengde mm: 340.00
Service: Volvo
Antall monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 11
Mount. flange 89.00
No./mount. holes 2 (0)
Position/50 45
Rotation CW
Dist./back 237.00
Dist./front 94.50
Servicing Volvo
Drive dist. 48.00
Gear type DD
kW 4.0
Terminal 50 M4
Voltage 24
Total length 340.00 mm
Dist. 127.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032114170, 0001360004, 0001368004, 0001368014, 4785484, 605720100021

  • Konkurrentreferens
    CST10713, LRS02235, S0288, S0749S, 638.008.114, 811.011.112, 33693, 254536, 11090213

  • NormaliseratArtNr
    cst10713, f032114170, lrs02235, s0288, s0749s, 33693, 254536, 0001360004, 0001368004, 0001368014, 4785484, 11090213, 638008114, 811011112, 605720100021

  • Passar modeller
    Various Industrial applications Model: Various Industrial applications Approved: Yes
    Volvo Model: BM4200 Model series: BM4200 Model type: Wheel Loader Brand of engine: 4-236 Approved: Yes
    Volvo Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivelse
    Spenning: 24
    kW: 4.0
    Monteringsflens: 89.00
    Drevavstand: 48.00
    Monteringshull 2 mm: 11.00
    Monteringshull 1 mm: 11.00
    Avstand/bak: 237.00
    Avstand/frem: 94.50
    Nummer/tannhjul: 11
    B+: M10
    Posisjon/50: 45
    Terminal 50: M4
    Girtype: DD
    Avstand mm: 127.00
    Rotasjon: CW
    Total lengde mm: 340.00
    Service: Volvo
    Antall monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 11
    Mount. flange 89.00
    No./mount. holes 2 (0)
    Position/50 45
    Rotation CW
    Dist./back 237.00
    Dist./front 94.50
    Servicing Volvo
    Drive dist. 48.00
    Gear type DD
    kW 4.0
    Terminal 50 M4
    Voltage 24
    Total length 340.00 mm
    Dist. 127.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      F032114170, 0001360004, 0001368004, 0001368014, 4785484, 605720100021

    • Konkurrentreferens
      CST10713, LRS02235, S0288, S0749S, 638.008.114, 811.011.112, 33693, 254536, 11090213

    • NormaliseratArtNr
      cst10713, f032114170, lrs02235, s0288, s0749s, 33693, 254536, 0001360004, 0001368004, 0001368014, 4785484, 11090213, 638008114, 811011112, 605720100021

    • Passar modeller
      Various Industrial applications Model: Various Industrial applications Approved: Yes
      Volvo Model: BM4200 Model series: BM4200 Model type: Wheel Loader Brand of engine: 4-236 Approved: Yes
      Volvo Model: Various Models Model series: Various Models Approved: Yes
