HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114222

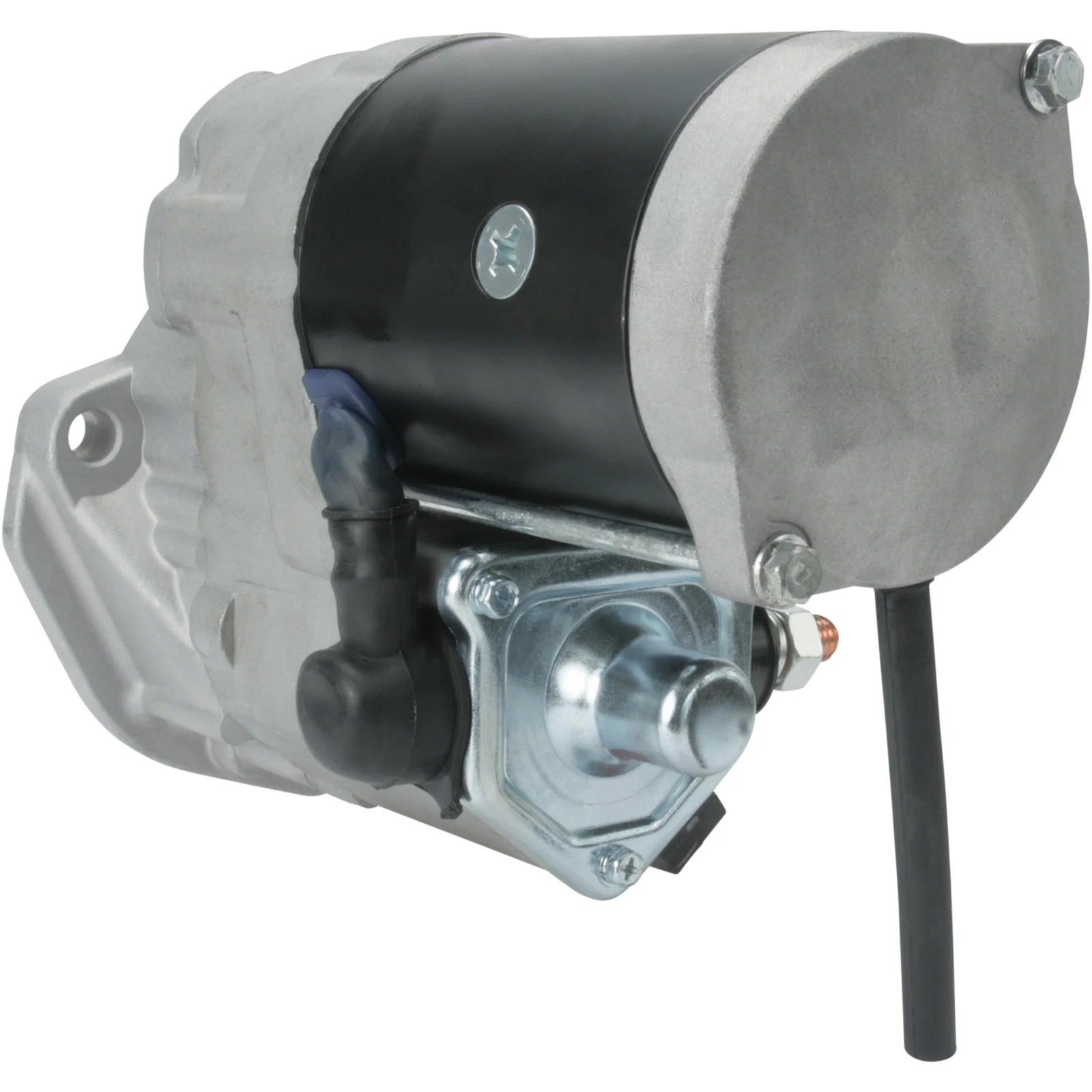

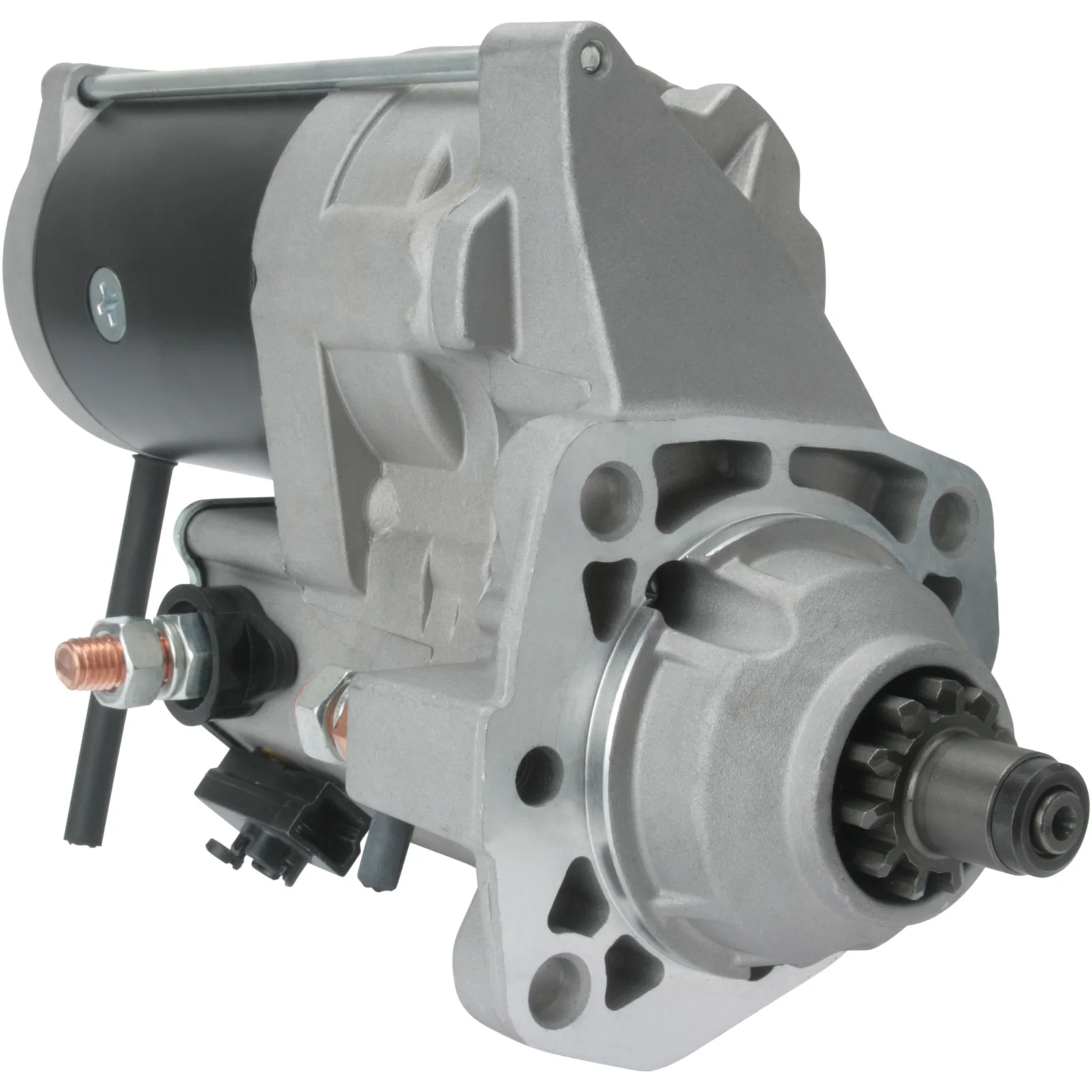

HC-Cargo Startmotor

Teknisk info:

Spenning: 24, kW: 7,5, Nr./tann: 11, Roteringsretning: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

John Deere Startmotor 24V-7,5kW 24V - 7,5kW, 11k For Yourex produktordre 91-270-7413

Spenning: 24
kW: 7,5
Festeblokke: 89,00
Drivingsavstand: 48,00
Festeborren 3 mm: 11,50
Festeborren 2 mm: 11,50
Festeborren 1 mm: 11,50
Avstand/bak: 160,50
Avstand/front: 74,50
Antall/tenner: 11
B+: M12
Posisjon/50: 22
Terminal 50: M5
Girtype: GR
Avstand 2: 90,00
Avstand 3: 90,00
Avstand mm: 127,00
Rotasjon: CW
Posisjon/b-: 15
B-: M12
Total lengde mm: 319,00
Koblingstype: Våt
Drevtype: Stål
Prod. info: BN
Vannbestandig: Ja
Oljetett: Ja
No./festeborren: 3 (0)

Filer

Spesifikasjon

B+ M12
B- M12
No./teeth 11
Mount. flange 89.00
Oil sealed Yes
No./mount. holes 3 (0)
Position/50 22
Clutch type Wet
Position/b- 15
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 160.50
Dist./front 74.50
Drive dist. 48.00
Drive type Steel
Gear type GR
kW 7.5
Terminal 50 M5
Voltage 24
Total length 319.00 mm
Waterproof Yes
Dist. 127.00 mm
Mount. hole 3 11.50 mm
Mount. hole 2 11.50 mm
Mount. hole 1 11.50 mm

  • OEM
    F032114222, RE 501050, RE 501060, RE 501150, RE 69705, RE 70958, RE501050, RE501060, RE501150, RE69705, RE70958, TY 24443, TY24443, 114222, 228000-6560, 228000-6561, 228000-7410, 228000-7411, 228000-7412, 228000-7413, 501406

  • Konkurrentreferens
    CST40612, DSN2027, DSN2147, S6118, 45-4279, 631.513.113, 686.016.114, 19847N, 19848, 19848N

  • Bilmärken
    John Deere - (USA)

  • NormaliseratArtNr
    cst40612, dsn2027, dsn2147, f032114222, re501050, re501060, re501150, re69705, re70958, s6118, ty24443, 19847n, 19848, 19848n, 114222, 454279, 501406, 631513113, 686016114, 2280006560, 2280006561, 2280007410, 2280007411, 2280007412, 2280007413

  • Passar modeller
    John Deere - (USA) Engine volume: 4.5 Engine type: Power Tech
    John Deere - (USA) Engine volume: 5.9 Engine type: Power Tech
    John Deere - (USA) Engine volume: 6.8 Engine type: Power Tech
    John Deere - (USA) Engine volume: 8.1 Engine type: Nature Gas
    John Deere - (USA) Series: Dozer Model: 750J
    John Deere - (USA) Series: Skogsmaskin Model: 1010 D, E
    John Deere - (USA) Series: Skogsmaskin Model: 1110 D
    John Deere - (USA) Series: Skogsmaskin Model: 1270 D -> s/n 0630
    John Deere - (USA) Series: Skogsmaskin Model: 1270 D s/n 0631 ->
    John Deere - (USA) Series: Skogsmaskin Model: 1510
    John Deere Model: Engine Brand of engine: 4045DFM50 Approved: Yes
    John Deere Model: Engine Brand of engine: 4045DFM70 Approved: Yes
    John Deere Model: Engine Brand of engine: 4045TFM50 Approved: Yes
    John Deere Model: Engine Brand of engine: 4045TFM75 Approved: Yes
    John Deere Model: Engine Brand of engine: 6068AFM75 Approved: Yes
    John Deere Model: Engine Brand of engine: 6068DFM Approved: Yes
    John Deere Model: Engine Brand of engine: 6068FM50 Approved: Yes
    John Deere Model: Engine Brand of engine: 6068SFM50 Approved: Yes
    John Deere Model: Engine Brand of engine: 6068TFM50 Approved: Yes
    John Deere Model: Engine Brand of engine: 6068TFM75 Approved: Yes
    John Deere Model: Engine Brand of engine: 6081AFM01 Approved: Yes
    John Deere Model: Engine Brand of engine: 6081AFM75 Approved: Yes
    John Deere Model: Various Models Model series: Various Models Approved: Yes
    John Deere Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    1 / 5
