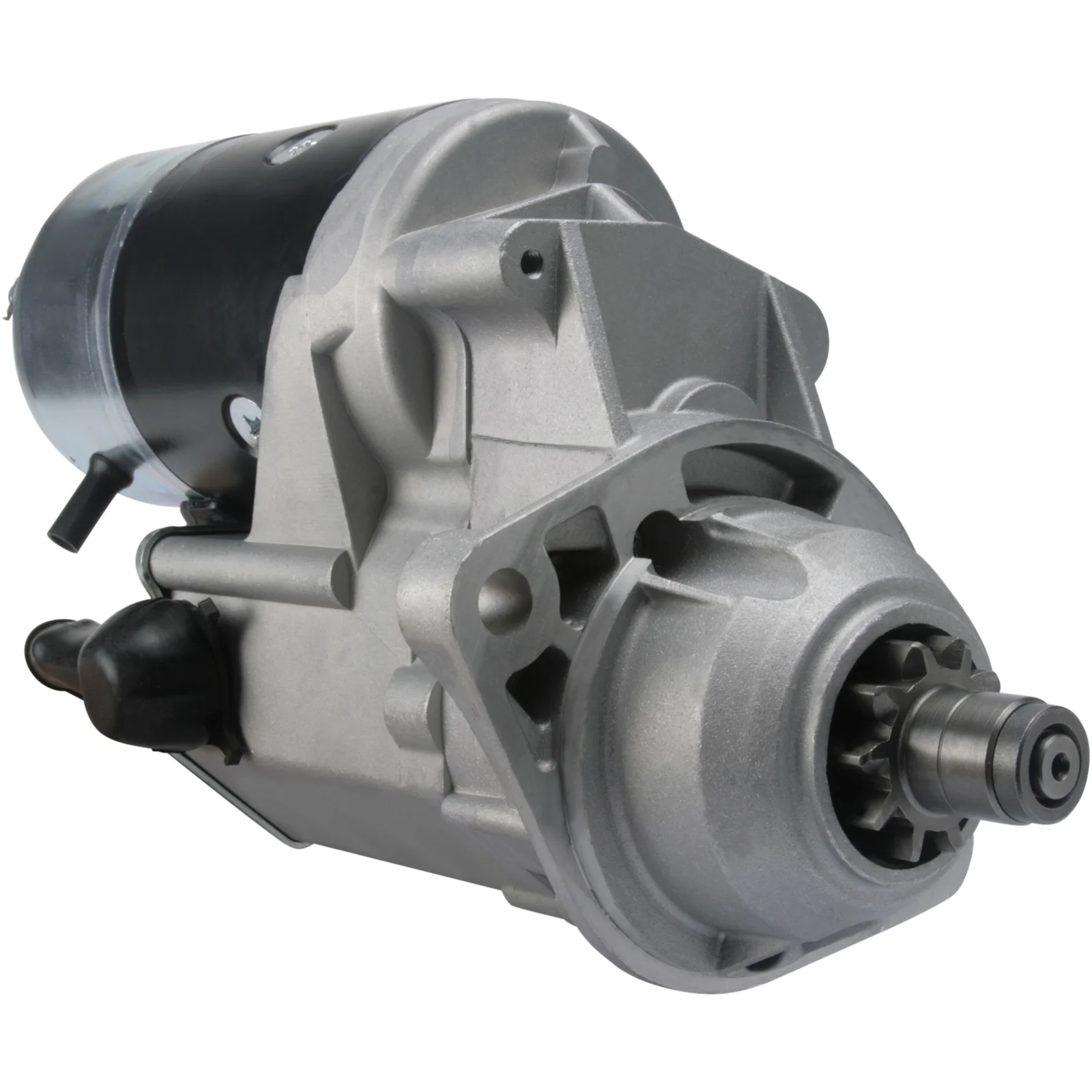

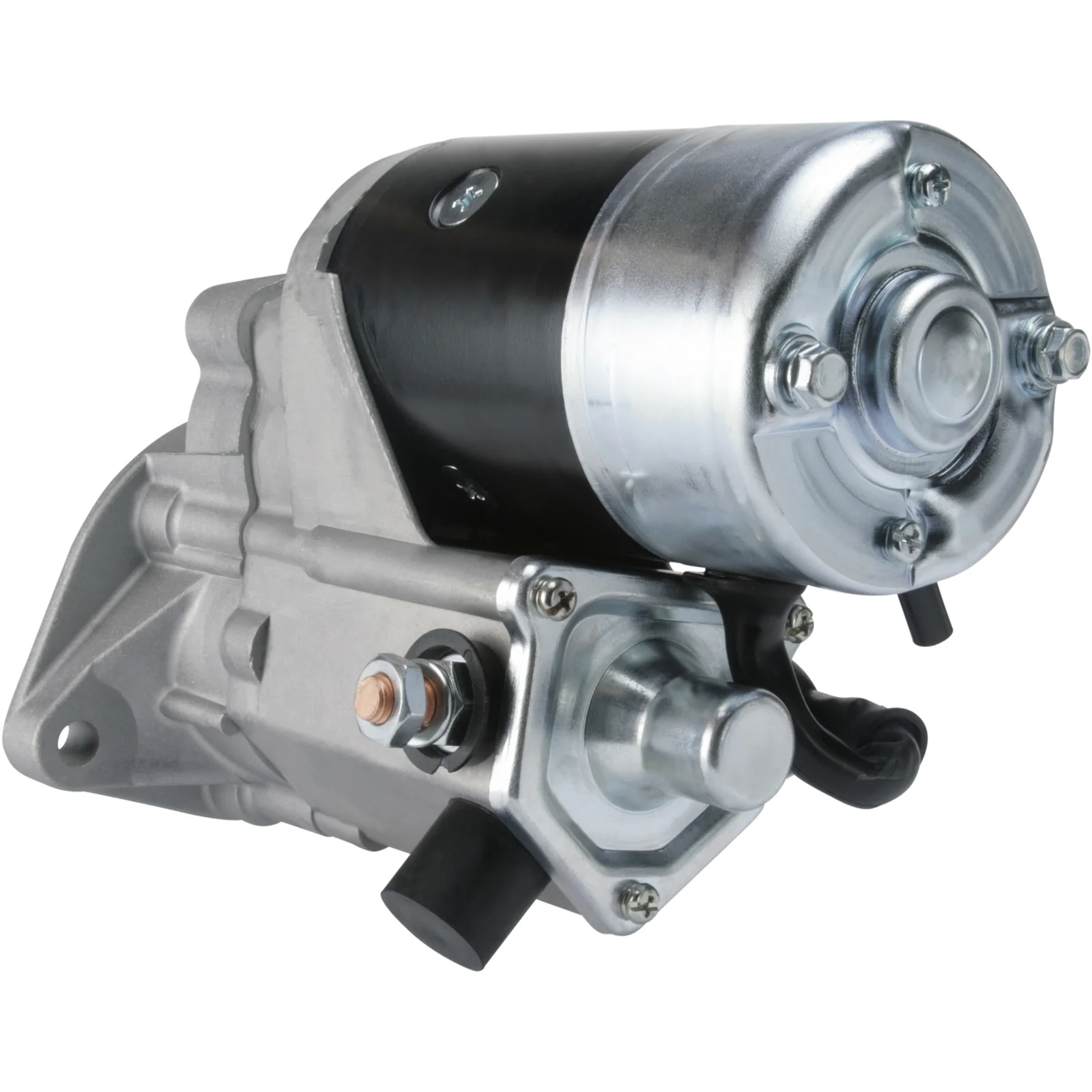

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114340

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 24, kW: 4.5, No./tenner: 10, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsnivå: 24
kW: 4,5
Monteringsflens: 88,50
Drevet avstand: 48,50
Monteringshull 2 mm: 11,00
Monteringshull 1 mm: 11,00
Avstand/bak: 160,00
Avstand/forside: 74,50
Ant./tenner: 10
B+: M10
Posisjon/B+: 45
Posisjon/50: 37
Terminal 50: M5
Avstand mm: 127,00
Rotasjon: medur → medur
Total lengde mm: 289,00
Koplingstype: Våt
Produsentinfo: BN
Olje forseglet: Nei
Informasjon: Ikke isolert retur.
Ant./monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 10
Mount. flange 88.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 37
Clutch type Wet
Position/B+ 45
Prod. info BN
Rotation CW
Dist./back 160.00
Dist./front 74.50
Drive dist. 48.50
Info Not Insulated return.
kW 4.5
Terminal 50 M5
Voltage 24
Total length 289.00 mm
Dist. 127.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032114340, 600-863-4110, 600-863-4130, 600-863-4210, 673-181-2530, 673-381-6510, 673-382-6510, 228000-0630, 228000-0631, 228000-0632, 228000-0633, 228000-0651, 228000-1750, 228000-1751, 228000-1752, 228000-1753, 228000-4991, 228000-4992, 228000-6640, 228000-6670, 228000-6671, 228000-9330, 428000-1830, 3675248RX, 3863128, 3920644, 3922474, 3957592

  • Konkurrentreferens
    CST40259, CST40616, DRS0357, DSN2041, DSN2106, F042000120, F042S00120, S6144, S6190, STR-6196, 45-4409, 685.034.104, 18402N, 19846N, 254133

  • NormaliseratArtNr
    cst40259, cst40616, drs0357, dsn2041, dsn2106, f032114340, f042000120, f042s00120, s6144, s6190, str6196, 18402n, 19846n, 254133, 454409, 3675248rx, 3863128, 3920644, 3922474, 3957592, 685034104, 2280000630, 2280000631, 2280000632, 2280000633, 2280000651, 2280001750, 2280001751, 2280001752, 2280001753, 2280004991, 2280004992, 2280006640, 2280006670, 2280006671, 2280009330, 4280001830, 6008634110, 6008634130, 6008634210, 6731812530, 6733816510, 6733826510

  • Passar modeller
    Komatsu Model: WA Model series: WA120 4B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
    Komatsu Model: WA Model series: WA120 6B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
    Komatsu Model: WA Model series: WA180 4B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
    Komatsu Model: WA Model series: WA180 6B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
    Komatsu Model: WA Model series: WA250 4B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
    Komatsu Model: WA Model series: WA250 6B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
    Komatsu Model: WA Model series: WA253 4B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
    Komatsu Model: WA Model series: WA253 6B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsnivå: 24
    kW: 4,5
    Monteringsflens: 88,50
    Drevet avstand: 48,50
    Monteringshull 2 mm: 11,00
    Monteringshull 1 mm: 11,00
    Avstand/bak: 160,00
    Avstand/forside: 74,50
    Ant./tenner: 10
    B+: M10
    Posisjon/B+: 45
    Posisjon/50: 37
    Terminal 50: M5
    Avstand mm: 127,00
    Rotasjon: medur → medur
    Total lengde mm: 289,00
    Koplingstype: Våt
    Produsentinfo: BN
    Olje forseglet: Nei
    Informasjon: Ikke isolert retur.
    Ant./monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 10
    Mount. flange 88.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 37
    Clutch type Wet
    Position/B+ 45
    Prod. info BN
    Rotation CW
    Dist./back 160.00
    Dist./front 74.50
    Drive dist. 48.50
    Info Not Insulated return.
    kW 4.5
    Terminal 50 M5
    Voltage 24
    Total length 289.00 mm
    Dist. 127.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      F032114340, 600-863-4110, 600-863-4130, 600-863-4210, 673-181-2530, 673-381-6510, 673-382-6510, 228000-0630, 228000-0631, 228000-0632, 228000-0633, 228000-0651, 228000-1750, 228000-1751, 228000-1752, 228000-1753, 228000-4991, 228000-4992, 228000-6640, 228000-6670, 228000-6671, 228000-9330, 428000-1830, 3675248RX, 3863128, 3920644, 3922474, 3957592

    • Konkurrentreferens
      CST40259, CST40616, DRS0357, DSN2041, DSN2106, F042000120, F042S00120, S6144, S6190, STR-6196, 45-4409, 685.034.104, 18402N, 19846N, 254133

    • NormaliseratArtNr
      cst40259, cst40616, drs0357, dsn2041, dsn2106, f032114340, f042000120, f042s00120, s6144, s6190, str6196, 18402n, 19846n, 254133, 454409, 3675248rx, 3863128, 3920644, 3922474, 3957592, 685034104, 2280000630, 2280000631, 2280000632, 2280000633, 2280000651, 2280001750, 2280001751, 2280001752, 2280001753, 2280004991, 2280004992, 2280006640, 2280006670, 2280006671, 2280009330, 4280001830, 6008634110, 6008634130, 6008634210, 6731812530, 6733816510, 6733826510

    • Passar modeller
      Komatsu Model: WA Model series: WA120 4B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
      Komatsu Model: WA Model series: WA120 6B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
      Komatsu Model: WA Model series: WA180 4B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
      Komatsu Model: WA Model series: WA180 6B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
      Komatsu Model: WA Model series: WA250 4B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
      Komatsu Model: WA Model series: WA250 6B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
      Komatsu Model: WA Model series: WA253 4B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
      Komatsu Model: WA Model series: WA253 6B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
      1 / 2
