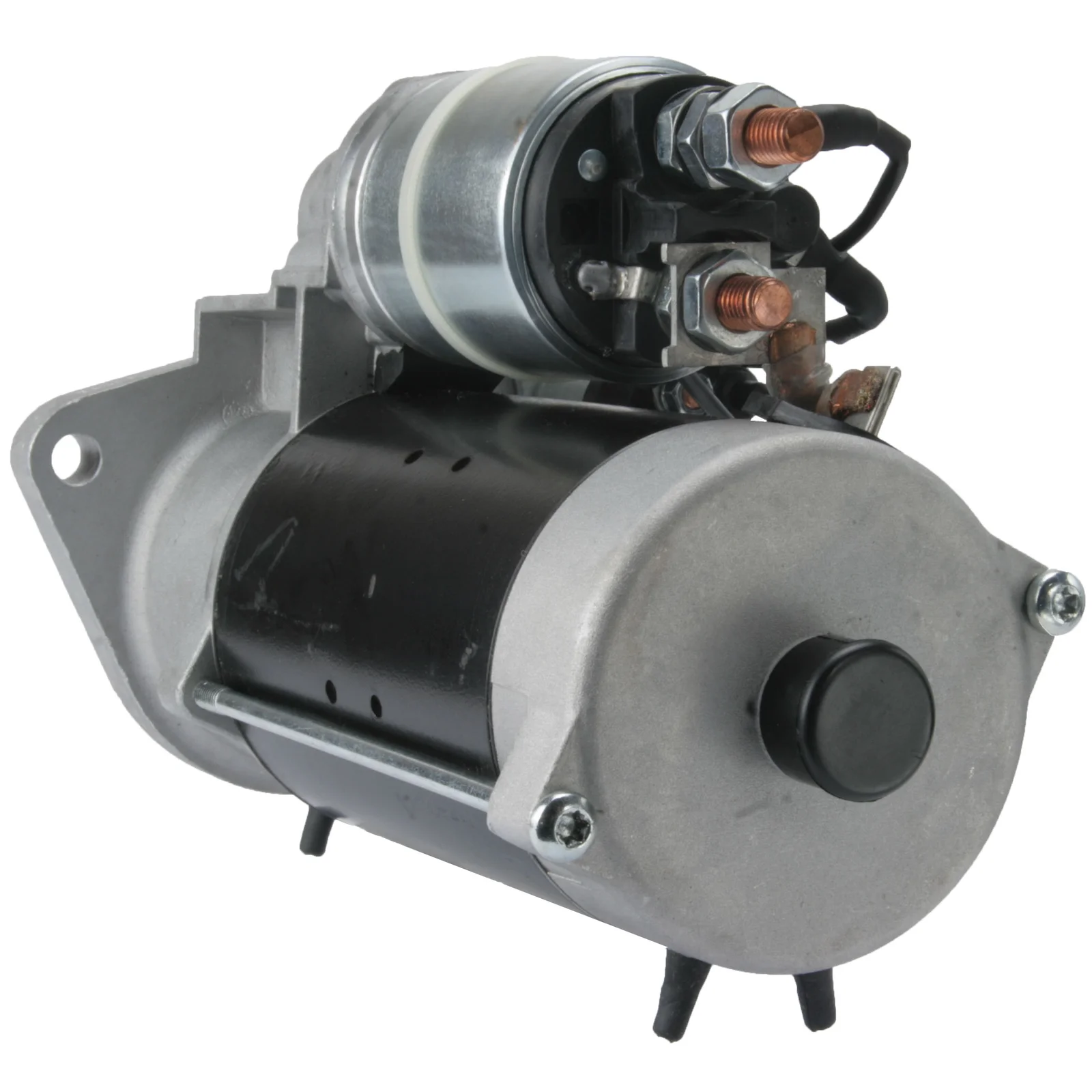

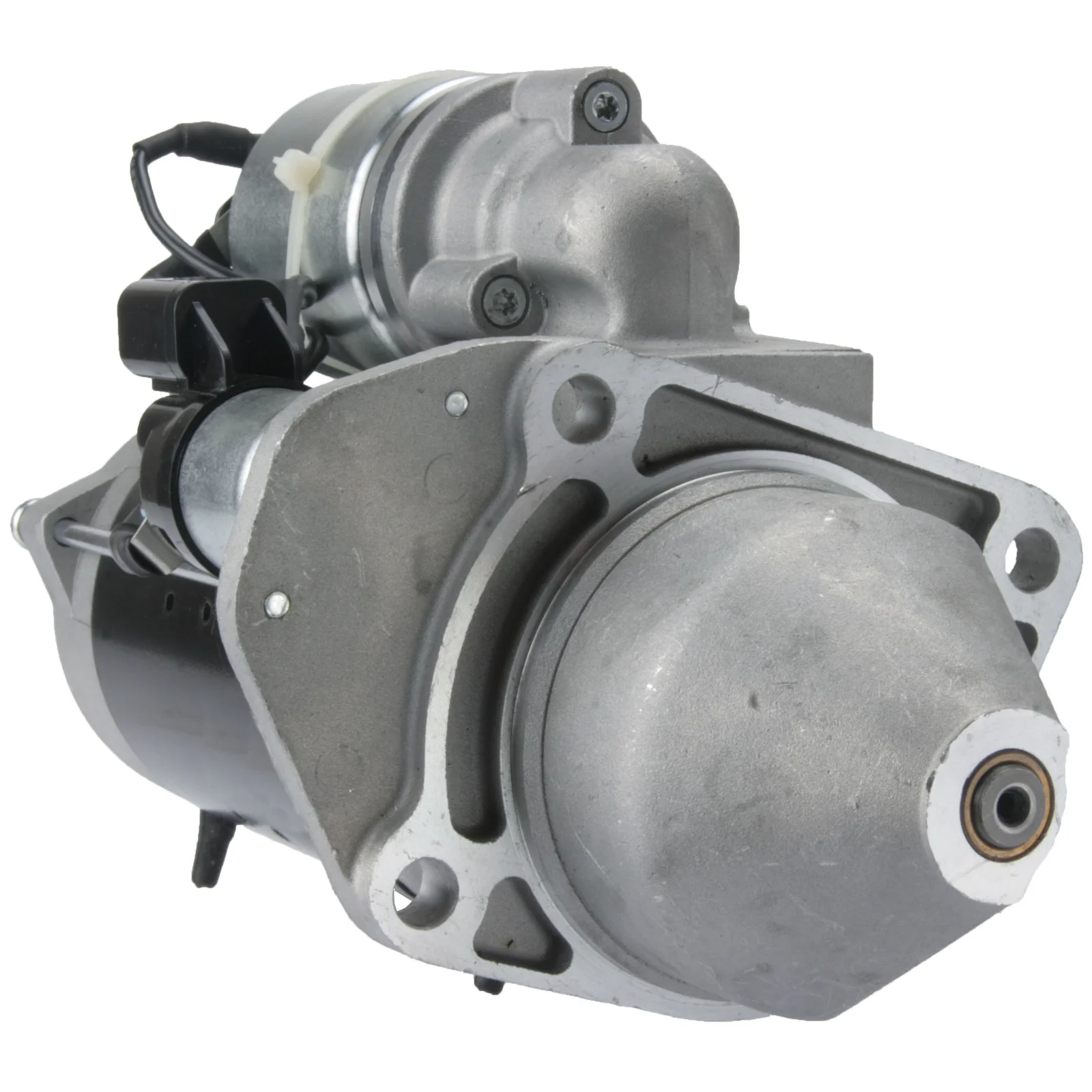

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114376

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 24, kW: 4.0, Antall/tenner: 10, Rotasjon: Medurs

Beskrivelse

Spenning: 24
kW: 4.0
Festebraktning: 89.00
Drevavstand: 29.00
Festeboringen 3 mm: 11.00
Festeboringen 2 mm: 11.00
Festeboringen 1 mm: 11.00
Avstand/tilbake: 221.50
Avstand/frem: 74.50
Antall/tenner: 10
B+: M10
Klemme 50: Kontakt
Girtype: GR
Avstand 2: 81.50
Avstand 3: 93.50
Avstand mm: 127.00
Rotasjon: med urviseren
Total lengde mm: 311.50
Vedlikehold: MAN
Merk: med sikkerhetsbryter.
Antall/festeboringer: 3 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Dist. 2 81.50
Remarks w/ safety switch.
Dist. 3 93.50
Rotation CW
Dist./back 221.50
Dist./front 74.50
Servicing MAN
Drive dist. 29.00
Gear type GR
kW 4.0
Terminal 50 Plug
Voltage 24
Total length 311.50 mm
Dist. 127.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032114376, 51.26201-7223, 1986S10078, 860814, 0001231035

  • Konkurrentreferens
    CST10719, DRS0062, DRS0062N, is1261, LRS02621, MS424, S0181, 8EA012586-321, 45-4294, 671.008.104, 30171N, 203065, 255024, 460263, 8823210, 11090148, 0986023210

  • NormaliseratArtNr
    cst10719, drs0062, drs0062n, f032114376, is1261, lrs02621, ms424, s0181, 8ea012586321, 1986s10078, 30171n, 203065, 255024, 454294, 460263, 860814, 0001231035, 8823210, 11090148, 671008104, 0986023210, 51262017223

  • Passar modeller
    MAN Model: 10t Model series: 10.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 10t Model series: 10.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 10t Model series: 10.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 10t Model series: 10.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 10t Model series: 10.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 10t Model series: 10.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 10t Model series: 10.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 12t Model series: 12.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 12t Model series: 12.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 12t Model series: 12.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 12t Model series: 12.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 12t Model series: 12.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 12t Model series: 12.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 12t Model series: 12.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 13t Model series: 13.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGM Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    MAN Model: 13t Model series: 13.240 Size of motor: 6.9 Brand of engine: D0836LFL53 Type description: TGM Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    MAN Model: 13t Model series: 13.280 Size of motor: 6.9 Brand of engine: D0836LFL41 Type description: TGM Body: Dump Truck From date: 01-05-2006 Fuel: Diesel Approved: Yes
    MAN Model: 13t Model series: 13.280 Size of motor: 6.9 Brand of engine: D0836LFL51 Type description: TGM Body: Dump Truck From date: 01-05-2006 Fuel: Diesel Approved: Yes
    MAN Model: 13t Model series: 13.280 Size of motor: 6.9 Brand of engine: D0836LFL54 Type description: TGM Body: Dump Truck From date: 01-05-2006 Fuel: Diesel Approved: Yes
    MAN Model: 15t Model series: 15.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes
    MAN Model: 15t Model series: 15.240 Size of motor: 6.9 Brand of engine: D0836LFL50 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes
    MAN Model: 7t Model series: 7.150 Size of motor: 4.6 Brand of engine: D0834LFL50 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 7t Model series: 7.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 7t Model series: 7.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 7t Model series: 8.150 Size of motor: 4.6 Brand of engine: D0834LFL50 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL54 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL64 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL67 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    1 / 8
  • Beskrivelse
    Spenning: 24
    kW: 4.0
    Festebraktning: 89.00
    Drevavstand: 29.00
    Festeboringen 3 mm: 11.00
    Festeboringen 2 mm: 11.00
    Festeboringen 1 mm: 11.00
    Avstand/tilbake: 221.50
    Avstand/frem: 74.50
    Antall/tenner: 10
    B+: M10
    Klemme 50: Kontakt
    Girtype: GR
    Avstand 2: 81.50
    Avstand 3: 93.50
    Avstand mm: 127.00
    Rotasjon: med urviseren
    Total lengde mm: 311.50
    Vedlikehold: MAN
    Merk: med sikkerhetsbryter.
    Antall/festeboringer: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Dist. 2 81.50
    Remarks w/ safety switch.
    Dist. 3 93.50
    Rotation CW
    Dist./back 221.50
    Dist./front 74.50
    Servicing MAN
    Drive dist. 29.00
    Gear type GR
    kW 4.0
    Terminal 50 Plug
    Voltage 24
    Total length 311.50 mm
    Dist. 127.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      F032114376, 51.26201-7223, 1986S10078, 860814, 0001231035

    • Konkurrentreferens
      CST10719, DRS0062, DRS0062N, is1261, LRS02621, MS424, S0181, 8EA012586-321, 45-4294, 671.008.104, 30171N, 203065, 255024, 460263, 8823210, 11090148, 0986023210

    • NormaliseratArtNr
      cst10719, drs0062, drs0062n, f032114376, is1261, lrs02621, ms424, s0181, 8ea012586321, 1986s10078, 30171n, 203065, 255024, 454294, 460263, 860814, 0001231035, 8823210, 11090148, 671008104, 0986023210, 51262017223

    • Passar modeller
      MAN Model: 10t Model series: 10.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 10t Model series: 10.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 10t Model series: 10.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 10t Model series: 10.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 10t Model series: 10.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 10t Model series: 10.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 10t Model series: 10.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 12t Model series: 12.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 12t Model series: 12.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 12t Model series: 12.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 12t Model series: 12.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 12t Model series: 12.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 12t Model series: 12.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 12t Model series: 12.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 13t Model series: 13.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGM Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
      MAN Model: 13t Model series: 13.240 Size of motor: 6.9 Brand of engine: D0836LFL53 Type description: TGM Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
      MAN Model: 13t Model series: 13.280 Size of motor: 6.9 Brand of engine: D0836LFL41 Type description: TGM Body: Dump Truck From date: 01-05-2006 Fuel: Diesel Approved: Yes
      MAN Model: 13t Model series: 13.280 Size of motor: 6.9 Brand of engine: D0836LFL51 Type description: TGM Body: Dump Truck From date: 01-05-2006 Fuel: Diesel Approved: Yes
      MAN Model: 13t Model series: 13.280 Size of motor: 6.9 Brand of engine: D0836LFL54 Type description: TGM Body: Dump Truck From date: 01-05-2006 Fuel: Diesel Approved: Yes
      MAN Model: 15t Model series: 15.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes
      MAN Model: 15t Model series: 15.240 Size of motor: 6.9 Brand of engine: D0836LFL50 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes
      MAN Model: 7t Model series: 7.150 Size of motor: 4.6 Brand of engine: D0834LFL50 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 7t Model series: 7.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 7t Model series: 7.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 7t Model series: 8.150 Size of motor: 4.6 Brand of engine: D0834LFL50 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL54 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL64 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL67 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 8t Model series: 8.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 8t Model series: 8.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 8t Model series: 8.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
      MAN Model: 8t Model series: 8.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
      1 / 8
