HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032115821

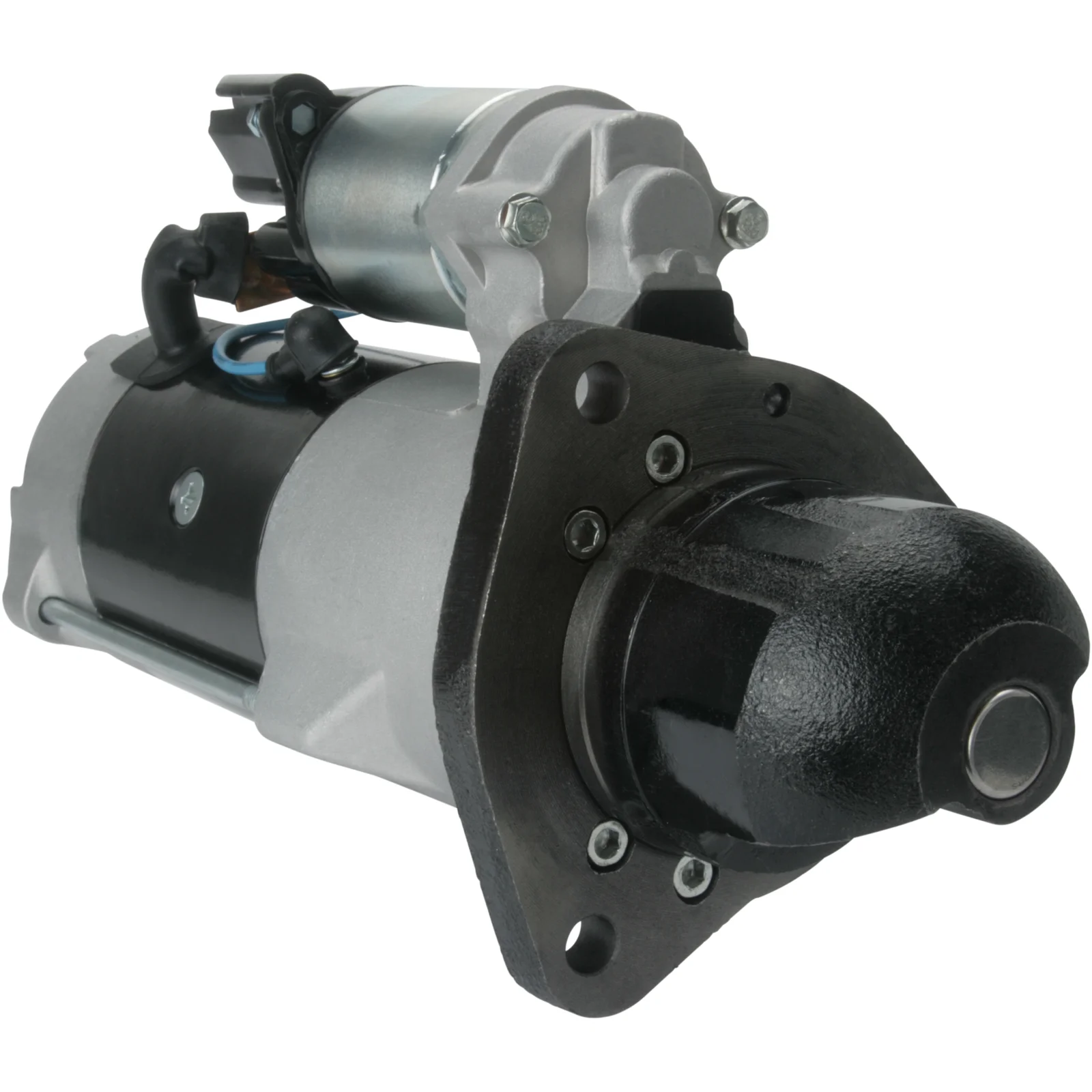

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 24, kW: 8.0, Antall/tenner: 12, Rotasjon: CW

Beskrivelse

Spenningsverdi: 24
kW: 8,0
Isolert retur: Ja
Monteringsflens: 92,00
Drevenhet: 46,00
Monteringshull 3 mm: 13,50
Monteringshull 2 mm: 13,50
Monteringshull 1 mm: 13,50
Drevenhet/rygg: 308,00
Drevenhet/fram: 96,00
Antall/tannhjul: 12
B+: 1/2" UNC
Trådlengde mm: 26,00
Posisjon/50: 15
Terminal 50: 3/16" UNF
Girtype: GR
Drevenhet 2: 126,50
Drevenhet 3: 126,50
Drevenhet mm: 126,50
Rotasjon: medurs
Posisjon/b-: 20
B-: 1/2" UNC
Total lengde mm: 447,00
Antall/monteringshull: 3 (0)

Filer

Spesifikasjon

B+ 1/2" UNC
B- 1/2" UNC
No./teeth 12
Mount. flange 92.00
No./mount. holes 3 (0)
Position/50 15
Position/b- 20
Dist. 2 126.50
Dist. 3 126.50
Rotation CW
Dist./back 308.00
Dist./front 96.00
Drive dist. 46.00
Gear type GR
Insulated return Yes
kW 8.0
Terminal 50 3/16" UNF
Voltage 24
Total length 447.00 mm
Dist. 126.50 mm
Thread length 26.00 mm
Mount. hole 3 13.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    F032115821, RE506826, RE515895, RE522852, 267-4624, 2873K414, 028000-7010, 428000-0130, 428000-0131, 2886976

  • Konkurrentreferens
    CST40641, DSN2073, S1133, S6181, 641.508.133, 19859, 19859N, 107306

  • NormaliseratArtNr
    cst40641, dsn2073, f032115821, re506826, re515895, re522852, s1133, s6181, 2873k414, 19859, 19859n, 107306, 2674624, 2886976, 0280007010, 641508133, 4280000130, 4280000131

  • Passar modeller
    John Deere Model: Engine Brand of engine: 6125AFM01 From date: 01-01-2004 Approved: Yes
    John Deere Model: Engine Brand of engine: 6125AFM75 From date: 01-01-2004 Approved: Yes
    John Deere Model: Engine Brand of engine: 6125SFM75 From date: 01-01-2004 Approved: Yes
    John Deere Model: Various Models Model series: Various Models Approved: Yes
    John Deere Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenningsverdi: 24
    kW: 8,0
    Isolert retur: Ja
    Monteringsflens: 92,00
    Drevenhet: 46,00
    Monteringshull 3 mm: 13,50
    Monteringshull 2 mm: 13,50
    Monteringshull 1 mm: 13,50
    Drevenhet/rygg: 308,00
    Drevenhet/fram: 96,00
    Antall/tannhjul: 12
    B+: 1/2" UNC
    Trådlengde mm: 26,00
    Posisjon/50: 15
    Terminal 50: 3/16" UNF
    Girtype: GR
    Drevenhet 2: 126,50
    Drevenhet 3: 126,50
    Drevenhet mm: 126,50
    Rotasjon: medurs
    Posisjon/b-: 20
    B-: 1/2" UNC
    Total lengde mm: 447,00
    Antall/monteringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ 1/2" UNC
    B- 1/2" UNC
    No./teeth 12
    Mount. flange 92.00
    No./mount. holes 3 (0)
    Position/50 15
    Position/b- 20
    Dist. 2 126.50
    Dist. 3 126.50
    Rotation CW
    Dist./back 308.00
    Dist./front 96.00
    Drive dist. 46.00
    Gear type GR
    Insulated return Yes
    kW 8.0
    Terminal 50 3/16" UNF
    Voltage 24
    Total length 447.00 mm
    Dist. 126.50 mm
    Thread length 26.00 mm
    Mount. hole 3 13.50 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Kjøretøymatching

    • OEM
      F032115821, RE506826, RE515895, RE522852, 267-4624, 2873K414, 028000-7010, 428000-0130, 428000-0131, 2886976

    • Konkurrentreferens
      CST40641, DSN2073, S1133, S6181, 641.508.133, 19859, 19859N, 107306

    • NormaliseratArtNr
      cst40641, dsn2073, f032115821, re506826, re515895, re522852, s1133, s6181, 2873k414, 19859, 19859n, 107306, 2674624, 2886976, 0280007010, 641508133, 4280000130, 4280000131

    • Passar modeller
      John Deere Model: Engine Brand of engine: 6125AFM01 From date: 01-01-2004 Approved: Yes
      John Deere Model: Engine Brand of engine: 6125AFM75 From date: 01-01-2004 Approved: Yes
      John Deere Model: Engine Brand of engine: 6125SFM75 From date: 01-01-2004 Approved: Yes
      John Deere Model: Various Models Model series: Various Models Approved: Yes
      John Deere Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
