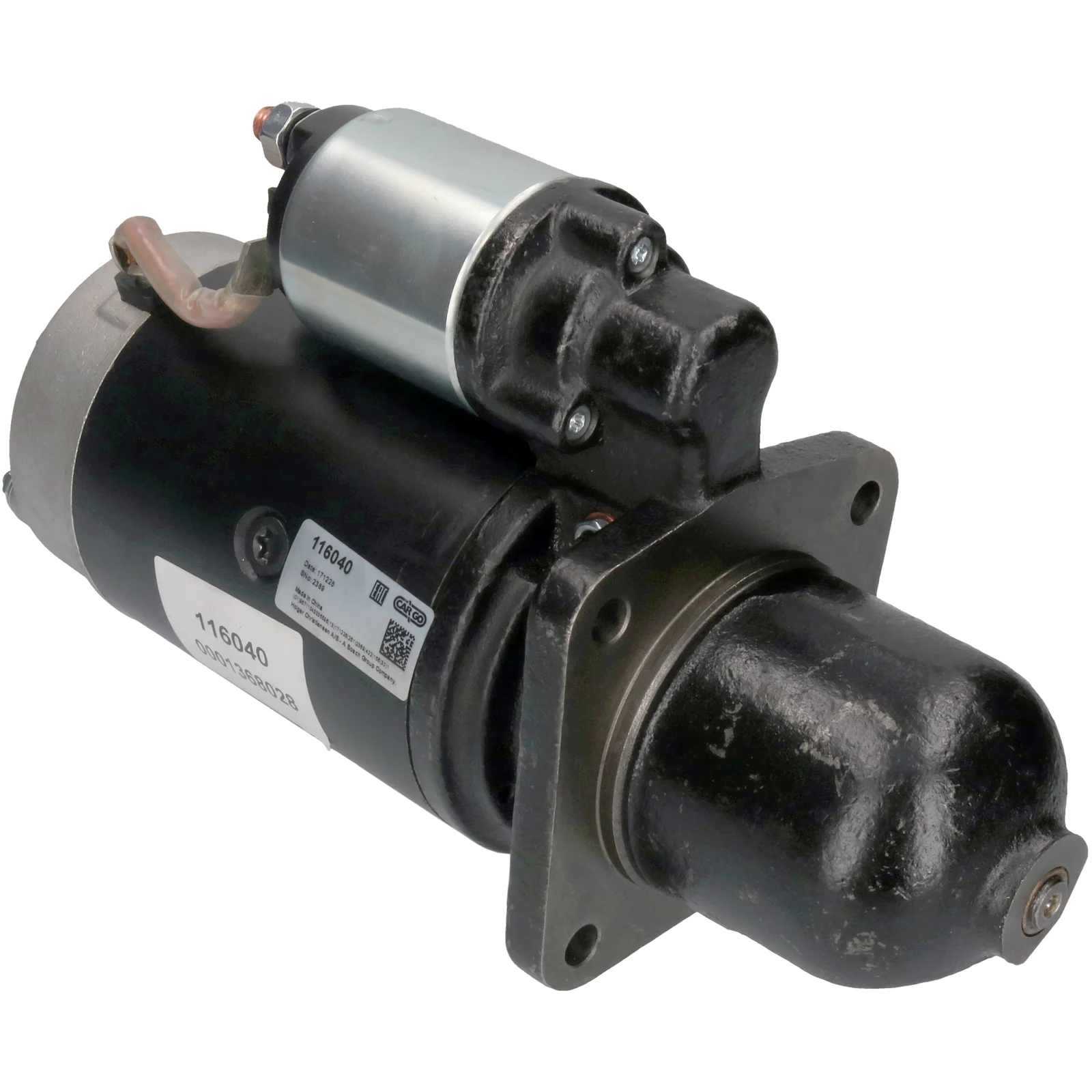

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116040

HC-Cargo Startmotor

Teknisk info:

Spenning: 24, kW: 4,0, Antall/tann: 9, Rotasjon: CW

Beskrivelse

Spenning: 24
kW: 4.0
Festebransje: 89.00
Drevavstand: 48.00
Festeboring 3 mm: 11.00
Festeboring 2 mm: 11.00
Festeboring 1 mm: 11.00
Avstand/bak: 237.00
Avstand/frem: 97.00
Nr./tenner: 9
B+: M10
Gjengetykk mm: 10.00
Posisjon/50: 45
Terminal 50: M6
Dreietype: DD
Avstand 2: 90.00
Avstand 3: 90.00
Avstand mm: 127.00
Rotasjon: CW
Total lengde mm: 341.00
Prod. info: BN
Nr./festeboringer: 3 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 9
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 45
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 237.00
Dist./front 97.00
Drive dist. 48.00
Gear type DD
kW 4.0
Terminal 50 M6
Voltage 24
Total length 341.00 mm
Dist. 127.00 mm
Thread length 10.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    A0021515601, A0031511301, A003151130180, A003151135680, AZJ3213, F032116040, 11.130.660, 0001360056, 0001368028, 0021515601, 0031511301, 003151130180, 003151135680, 4000136300, 7431027000

  • Konkurrentreferens
    CST10696, DRS2940, GA20064, IS0660, LRS01853, MS270, S0254, 45-1249, 88-12.940, 625.007.094, 18250N, 33470, 220337, 220337A, 254150, 455617, 11012940, 943252201, 943252234, 0986012940, 0986012943

  • NormaliseratArtNr
    a0021515601, a0031511301, a003151130180, a003151135680, azj3213, cst10696, drs2940, f032116040, ga20064, is0660, lrs01853, ms270, s0254, 18250n, 33470, 220337, 220337a, 254150, 451249, 455617, 0001360056, 0001368028, 8812940, 11012940, 11130660, 0021515601, 0031511301, 625007094, 943252201, 943252234, 0986012940, 0986012943, 003151130180, 003151135680, 4000136300, 7431027000

  • Passar modeller
    Mercedes-Benz Model: OF Series Model series: 1620 Size of motor: 6.0 Body: Bus From date: 01-01-1996 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Unimog Model series: U 1100 Size of motor: 5.7 Brand of engine: OM353.940 Type description: Unimog Body: Cab w/engine From date: 01-01-1977 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Unimog Model series: U 1100 Size of motor: 5.7 Brand of engine: OM353.940 Type description: Unimog Body: Platform / Chassis From date: 01-01-1977 To date: 01-05-1988 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Unimog Model series: U 1150 Size of motor: 5.7 Brand of engine: OM353.907 Type description: Unimog Body: Platform / Chassis From date: 01-05-1988 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Unimog Model series: U 1150 Size of motor: 5.7 Brand of engine: OM353.940 Type description: Unimog Body: Platform / Chassis From date: 01-05-1988 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Unimog Model series: U 1550 Size of motor: 6.0 Brand of engine: OM357.945 Type description: Unimog Body: Platform / Chassis From date: 01-05-1988 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Unimog Model series: U 1600 Size of motor: 6.0 Brand of engine: OM357.945 Type description: Unimog Body: Platform / Chassis From date: 01-05-1991 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Unimog Model series: U 1650 Size of motor: 6.0 Brand of engine: OM357.945 Type description: Unimog Body: Platform / Chassis From date: 01-05-1991 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Unimog Model series: U 2150 Size of motor: 6.0 Brand of engine: OM357.945 Type description: Unimog Body: Platform / Chassis From date: 01-09-1989 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Unimog Model series: U 2400 Size of motor: 6.0 Brand of engine: OM356.980 Type description: Unimog Body: Platform / Chassis From date: 01-07-1993 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Unimog Model series: U 2400 Size of motor: 6.0 Brand of engine: OM357.945 Type description: Unimog Body: Platform / Chassis From date: 01-05-1991 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Unimog Model series: U 2400 Size of motor: 6.0 Brand of engine: OM357.945 Type description: Unimog Body: Platform / Chassis From date: 01-07-1993 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Unimog Model series: U 2450 Size of motor: 6.0 Brand of engine: OM357.945 Type description: Unimog Body: Platform / Chassis From date: 01-05-1991 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Unimog Model series: U 2450 Size of motor: 6.0 Brand of engine: OM357.945 Type description: Unimog Body: Platform / Chassis From date: 01-07-1993 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Unimog Model series: U 800 Size of motor: 3.8 Brand of engine: OM314.917 Type description: Unimog Body: Platform / Chassis From date: 01-01-1977 To date: 01-03-1990 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Unimog Model series: U 800 Size of motor: 3.8 Brand of engine: OM314.917 Type description: Unimog Body: Platform / Chassis From date: 01-05-1988 To date: 01-03-1990 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Unimog Model series: U 900 Size of motor: 6.0 Brand of engine: OM356.912 Type description: Unimog Body: Platform / Chassis From date: 01-11-1988 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spenning: 24
    kW: 4.0
    Festebransje: 89.00
    Drevavstand: 48.00
    Festeboring 3 mm: 11.00
    Festeboring 2 mm: 11.00
    Festeboring 1 mm: 11.00
    Avstand/bak: 237.00
    Avstand/frem: 97.00
    Nr./tenner: 9
    B+: M10
    Gjengetykk mm: 10.00
    Posisjon/50: 45
    Terminal 50: M6
    Dreietype: DD
    Avstand 2: 90.00
    Avstand 3: 90.00
    Avstand mm: 127.00
    Rotasjon: CW
    Total lengde mm: 341.00
    Prod. info: BN
    Nr./festeboringer: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 9
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 45
    Prod. info BN
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 237.00
    Dist./front 97.00
    Drive dist. 48.00
    Gear type DD
    kW 4.0
    Terminal 50 M6
    Voltage 24
    Total length 341.00 mm
    Dist. 127.00 mm
    Thread length 10.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      A0021515601, A0031511301, A003151130180, A003151135680, AZJ3213, F032116040, 11.130.660, 0001360056, 0001368028, 0021515601, 0031511301, 003151130180, 003151135680, 4000136300, 7431027000

    • Konkurrentreferens
      CST10696, DRS2940, GA20064, IS0660, LRS01853, MS270, S0254, 45-1249, 88-12.940, 625.007.094, 18250N, 33470, 220337, 220337A, 254150, 455617, 11012940, 943252201, 943252234, 0986012940, 0986012943

    • NormaliseratArtNr
      a0021515601, a0031511301, a003151130180, a003151135680, azj3213, cst10696, drs2940, f032116040, ga20064, is0660, lrs01853, ms270, s0254, 18250n, 33470, 220337, 220337a, 254150, 451249, 455617, 0001360056, 0001368028, 8812940, 11012940, 11130660, 0021515601, 0031511301, 625007094, 943252201, 943252234, 0986012940, 0986012943, 003151130180, 003151135680, 4000136300, 7431027000

    • Passar modeller
      Mercedes-Benz Model: OF Series Model series: 1620 Size of motor: 6.0 Body: Bus From date: 01-01-1996 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Unimog Model series: U 1100 Size of motor: 5.7 Brand of engine: OM353.940 Type description: Unimog Body: Cab w/engine From date: 01-01-1977 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Unimog Model series: U 1100 Size of motor: 5.7 Brand of engine: OM353.940 Type description: Unimog Body: Platform / Chassis From date: 01-01-1977 To date: 01-05-1988 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Unimog Model series: U 1150 Size of motor: 5.7 Brand of engine: OM353.907 Type description: Unimog Body: Platform / Chassis From date: 01-05-1988 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Unimog Model series: U 1150 Size of motor: 5.7 Brand of engine: OM353.940 Type description: Unimog Body: Platform / Chassis From date: 01-05-1988 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Unimog Model series: U 1550 Size of motor: 6.0 Brand of engine: OM357.945 Type description: Unimog Body: Platform / Chassis From date: 01-05-1988 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Unimog Model series: U 1600 Size of motor: 6.0 Brand of engine: OM357.945 Type description: Unimog Body: Platform / Chassis From date: 01-05-1991 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Unimog Model series: U 1650 Size of motor: 6.0 Brand of engine: OM357.945 Type description: Unimog Body: Platform / Chassis From date: 01-05-1991 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Unimog Model series: U 2150 Size of motor: 6.0 Brand of engine: OM357.945 Type description: Unimog Body: Platform / Chassis From date: 01-09-1989 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Unimog Model series: U 2400 Size of motor: 6.0 Brand of engine: OM356.980 Type description: Unimog Body: Platform / Chassis From date: 01-07-1993 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Unimog Model series: U 2400 Size of motor: 6.0 Brand of engine: OM357.945 Type description: Unimog Body: Platform / Chassis From date: 01-05-1991 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Unimog Model series: U 2400 Size of motor: 6.0 Brand of engine: OM357.945 Type description: Unimog Body: Platform / Chassis From date: 01-07-1993 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Unimog Model series: U 2450 Size of motor: 6.0 Brand of engine: OM357.945 Type description: Unimog Body: Platform / Chassis From date: 01-05-1991 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Unimog Model series: U 2450 Size of motor: 6.0 Brand of engine: OM357.945 Type description: Unimog Body: Platform / Chassis From date: 01-07-1993 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Unimog Model series: U 800 Size of motor: 3.8 Brand of engine: OM314.917 Type description: Unimog Body: Platform / Chassis From date: 01-01-1977 To date: 01-03-1990 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Unimog Model series: U 800 Size of motor: 3.8 Brand of engine: OM314.917 Type description: Unimog Body: Platform / Chassis From date: 01-05-1988 To date: 01-03-1990 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Unimog Model series: U 900 Size of motor: 6.0 Brand of engine: OM356.912 Type description: Unimog Body: Platform / Chassis From date: 01-11-1988 Fuel: Diesel Approved: Yes
