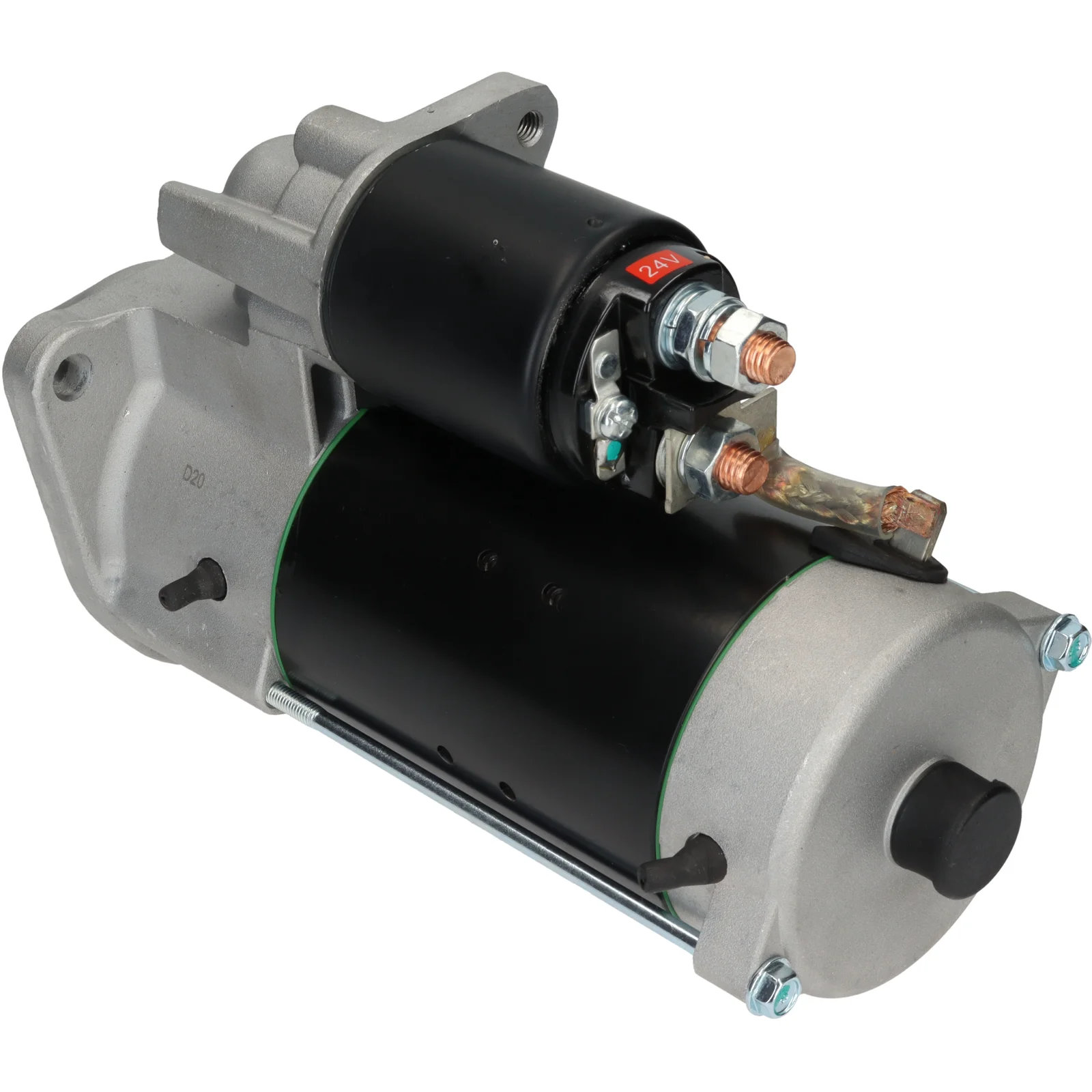

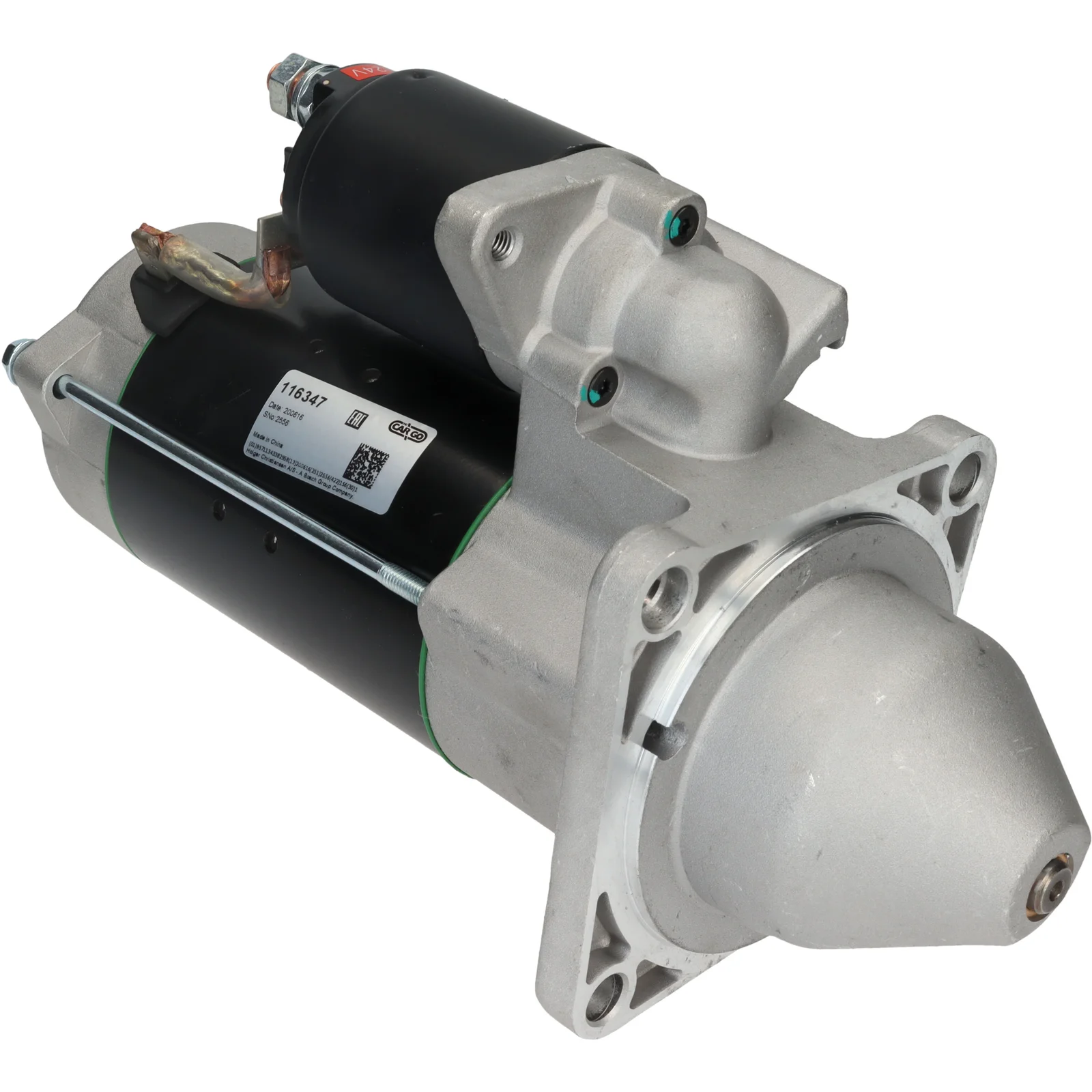

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116347

HC-Cargo Startmotor

Teknisk info:

Spenning: 24, kW: 4,0, Antall/tann: 9, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsfall: 24
kW: 4.0
Festeblokk: 110.00
Drevavstand: 27.00
Festeboring 3 mm: 12.00/14.00
Festeboring 2 mm: 12.00
Festeboring 1 mm: 12.00
Avstand/rygg: 231.00
Avstand/fram: 74.00
Antall/tanner: 9
B+: M10
Posisjon/B+: 60
Terminal 50: M6
Girtype: GR
Avstand 2: 103.50
Avstand 3: 103.50
Avstand mm: 146.00
Rotasjon: med urviseren
Total lengde mm: 317.00
Antall/festeboringer: 3 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 9
Mount. flange 110.00
No./mount. holes 3 (0)
Position/B+ 60
Dist. 2 103.50
Dist. 3 103.50
Rotation CW
Dist./back 231.00
Dist./front 74.00
Drive dist. 27.00
Gear type GR
kW 4.0
Terminal 50 M6
Voltage 24
Total length 317.00 mm
Dist. 146.00 mm
Mount. hole 3 12.00/14.00 mm
Mount. hole 2 12.00 mm
Mount. hole 1 12.00 mm

  • OEM
    F032116347, 0001231010, 75114529

  • Konkurrentreferens
    CST10661, DRT1690, S0425, STR22063, 8EA015642-461, 19664N, 220754, 220754A, 861049, 11021690, 0986021690, 0986021693

  • NormaliseratArtNr
    cst10661, drt1690, f032116347, s0425, str22063, 8ea015642461, 19664n, 220754, 220754a, 861049, 0001231010, 11021690, 75114529, 0986021690, 0986021693

  • Passar modeller
    Iveco Model: EuroCargo Model series: 75 E 14 Size of motor: 4.0 Brand of engine: 8040.45.4000 Type description: EuroCargo Body: Platform / Chassis From date: 01-01-1991 Fuel: Diesel Approved: Yes
    Iveco Model: EuroCargo Model series: 75 E 14 Size of motor: 4.0 Brand of engine: 8040.45.4180 Type description: EuroCargo Body: Platform / Chassis From date: 01-01-1991 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 109-14 Size of motor: 5.5 Brand of engine: 8060.04.689 Type description: Zeta Body: Dump Truck From date: 01-06-1983 To date: 01-12-1985 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 109-14 Size of motor: 5.5 Brand of engine: 8060.04.689 Type description: Zeta Body: Platform / Chassis From date: 01-06-1983 To date: 01-12-1985 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 109-14 Size of motor: 5.9 Brand of engine: 8060.05.289 Type description: Zeta Body: Dump Truck From date: 01-11-1985 To date: 01-03-1991 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-13 Size of motor: 5.5 Brand of engine: 8060.04.060 Type description: Zeta Body: Dump Truck From date: 01-11-1979 To date: 01-12-1983 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-13 Size of motor: 5.5 Brand of engine: 8060.04.060 Type description: Zeta Body: Platform / Chassis From date: 01-11-1979 To date: 01-12-1983 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-13 Size of motor: 5.5 Brand of engine: 8060.04.060 Type description: Zeta Body: Twin Cab From date: 01-11-1979 To date: 01-12-1983 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-13 Size of motor: 5.5 Brand of engine: 8060.04.660 Type description: Zeta Body: Dump Truck From date: 01-11-1979 To date: 01-12-1983 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-13 Size of motor: 5.5 Brand of engine: 8060.04.660 Type description: Zeta Body: Platform / Chassis From date: 01-11-1979 To date: 01-12-1983 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-13 Size of motor: 5.5 Brand of engine: 8060.04.660 Type description: Zeta Body: Twin Cab From date: 01-11-1979 To date: 01-12-1983 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-14 Size of motor: 5.5 Brand of engine: 8060.04.660 Type description: Zeta Body: Dump Truck From date: 01-01-1983 To date: 01-11-1985 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-14 Size of motor: 5.5 Brand of engine: 8060.04.660 Type description: Zeta Body: Platform / Chassis From date: 01-01-1983 To date: 01-11-1985 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-14 Size of motor: 5.5 Brand of engine: 8060.04.660 Type description: Zeta Body: Twin Cab From date: 01-01-1983 To date: 01-11-1985 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-14 Size of motor: 5.9 Brand of engine: 8060.05.280 Type description: Zeta Body: Dump Truck From date: 01-12-1985 To date: 01-03-1991 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-14 Size of motor: 5.9 Brand of engine: 8060.05.280 Type description: Zeta Body: Platform / Chassis From date: 01-12-1985 To date: 01-03-1991 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-14 Size of motor: 5.9 Brand of engine: 8060.05.280 Type description: Zeta Body: Twin Cab From date: 01-12-1985 To date: 01-03-1991 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 95-14 Size of motor: 5.5 Brand of engine: 8060.04.669 Type description: Zeta Body: Dump Truck From date: 01-07-1983 To date: 01-10-1985 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 95-14 Size of motor: 5.5 Brand of engine: 8060.04.669 Type description: Zeta Body: Platform / Chassis From date: 01-07-1983 To date: 01-10-1985 Fuel: Diesel Approved: Yes
    1 / 4
