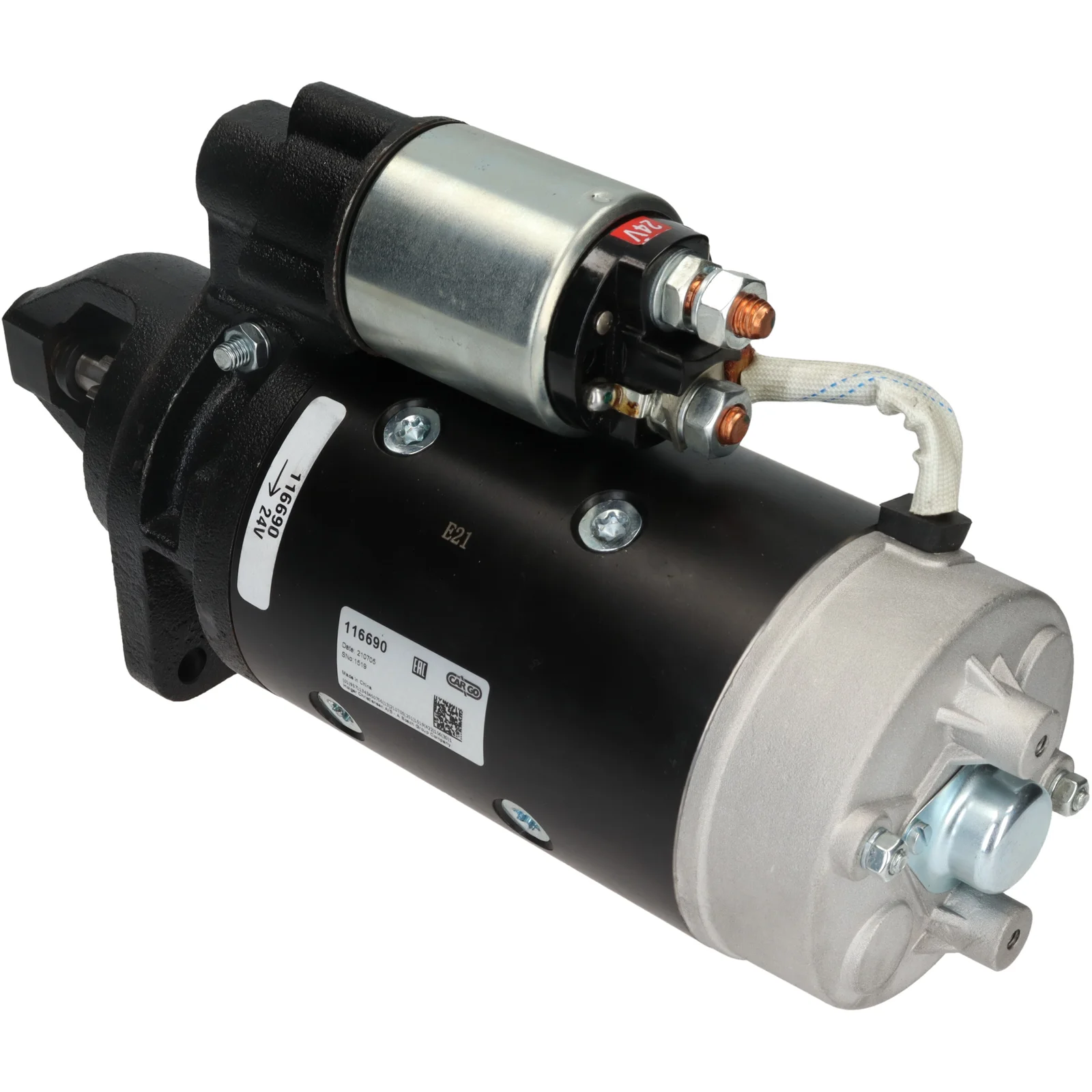

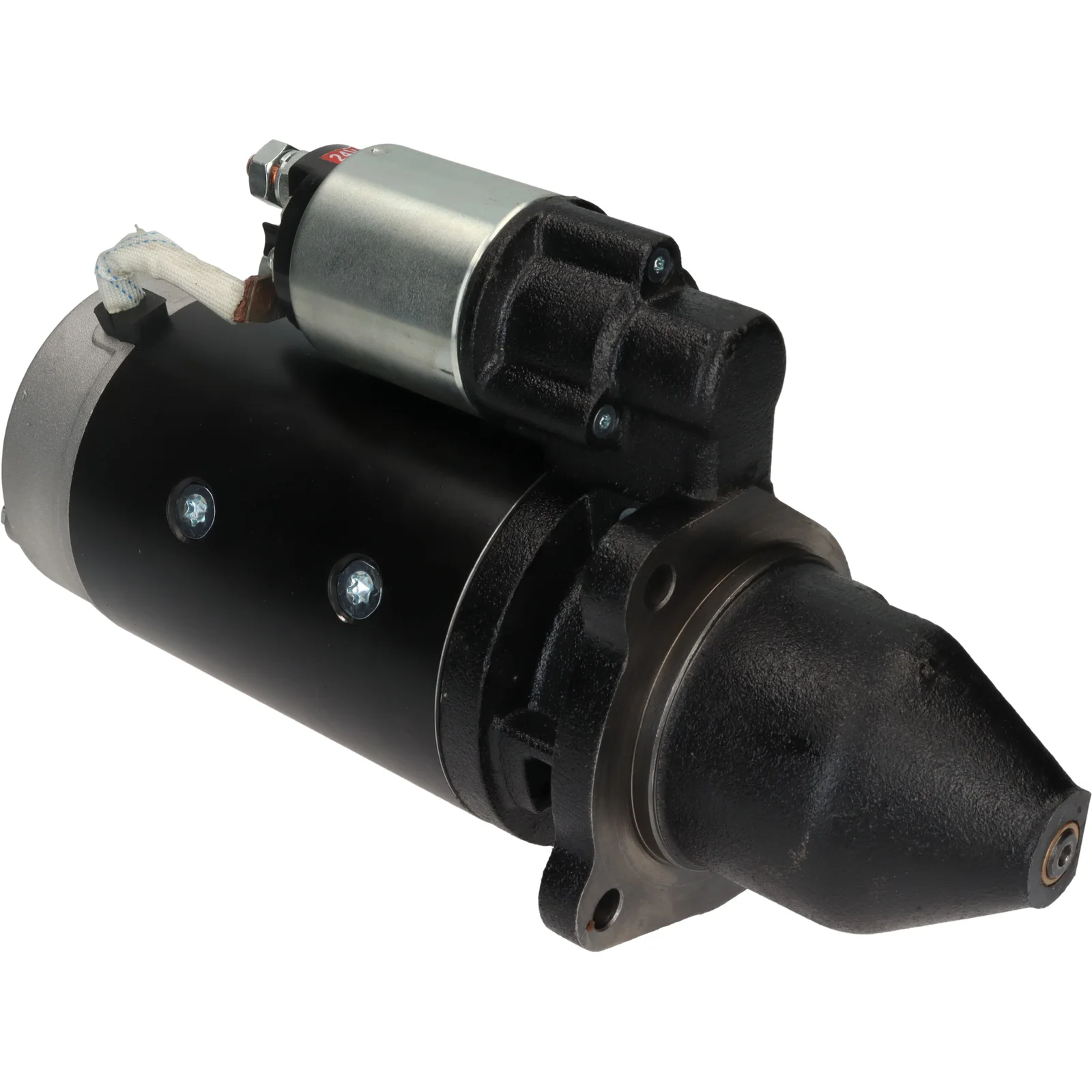

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116690

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 24, kW: 4.8, No./tenner: 11, Rotasjon: CW

Beskrivelse

Spenning: 24
kW: 4.8
Monteringsflens: 89,00
Dreiedistanse: 49,00
Monteringshull 3 mm: 11,00
Monteringshull 2 mm: 11,00
Monteringshull 1 mm: 11,00
Distanse/bak: 262,50
Distanse/fremre: 95,50
Nr./tenner: 11
B+: M10
Posisjon/B+: 60
Posisjon/50: 15
Terminal 50: M4
Geværtype: DD
Distanse 2: 90,00
Distanse 3: 127,50
Distanse mm: 90,00
Rotasjon: medur
Total lengde mm: 358,00
Nr./monteringshull: 3 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 11
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 15
Position/B+ 60
Dist. 2 90.00
Dist. 3 127.50
Rotation CW
Dist./back 262.50
Dist./front 95.50
Drive dist. 49.00
Gear type DD
kW 4.8
Terminal 50 M4
Voltage 24
Total length 358.00 mm
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZJ0602, AZJ3221, d11e149, F032116690, 11.130.003, 11.130.030, 11.130.672, 94955E, 01164376, 1164376, 01179595, 1179595, 0001364101, 0001364300, 04191105, 05710935, 0986022337

  • Konkurrentreferens
    CST10695, is0030, LRS01813, MS174, MS612, STR22080, vs153, 45-0249, 561.001.113, 688.009.114, 8676, 33464, 33743, 254958

  • NormaliseratArtNr
    azj0602, azj3221, cst10695, d11e149, f032116690, is0030, lrs01813, ms174, ms612, str22080, vs153, 8676, 33464, 33743, 94955e, 254958, 450249, 01164376, 1164376, 01179595, 1179595, 0001364101, 0001364300, 04191105, 05710935, 11130003, 11130030, 11130672, 561001113, 688009114, 0986022337

  • Passar modeller
    Bosch Model: DDOD Model series: DDOD 100 Size of motor: 9.6 Brand of engine: F6L413 From date: 01-04-1982 To date: 01-01-1999 Fuel: Diesel Approved: Yes
    Bosch Model: DDOD Model series: DDOD 83 Size of motor: 8.0 Brand of engine: F5L413FR From date: 01-04-1982 To date: 01-01-1999 Fuel: Diesel Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 8.0 Brand of engine: F5L413FR From date: 01-04-1984 Fuel: Diesel Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 9.6 Brand of engine: BF6L513.. From date: 01-01-1979 Fuel: Diesel Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 9.6 Brand of engine: F6L413 From date: 01-04-1982 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenning: 24
    kW: 4.8
    Monteringsflens: 89,00
    Dreiedistanse: 49,00
    Monteringshull 3 mm: 11,00
    Monteringshull 2 mm: 11,00
    Monteringshull 1 mm: 11,00
    Distanse/bak: 262,50
    Distanse/fremre: 95,50
    Nr./tenner: 11
    B+: M10
    Posisjon/B+: 60
    Posisjon/50: 15
    Terminal 50: M4
    Geværtype: DD
    Distanse 2: 90,00
    Distanse 3: 127,50
    Distanse mm: 90,00
    Rotasjon: medur
    Total lengde mm: 358,00
    Nr./monteringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 11
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 15
    Position/B+ 60
    Dist. 2 90.00
    Dist. 3 127.50
    Rotation CW
    Dist./back 262.50
    Dist./front 95.50
    Drive dist. 49.00
    Gear type DD
    kW 4.8
    Terminal 50 M4
    Voltage 24
    Total length 358.00 mm
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      AZJ0602, AZJ3221, d11e149, F032116690, 11.130.003, 11.130.030, 11.130.672, 94955E, 01164376, 1164376, 01179595, 1179595, 0001364101, 0001364300, 04191105, 05710935, 0986022337

    • Konkurrentreferens
      CST10695, is0030, LRS01813, MS174, MS612, STR22080, vs153, 45-0249, 561.001.113, 688.009.114, 8676, 33464, 33743, 254958

    • NormaliseratArtNr
      azj0602, azj3221, cst10695, d11e149, f032116690, is0030, lrs01813, ms174, ms612, str22080, vs153, 8676, 33464, 33743, 94955e, 254958, 450249, 01164376, 1164376, 01179595, 1179595, 0001364101, 0001364300, 04191105, 05710935, 11130003, 11130030, 11130672, 561001113, 688009114, 0986022337

    • Passar modeller
      Bosch Model: DDOD Model series: DDOD 100 Size of motor: 9.6 Brand of engine: F6L413 From date: 01-04-1982 To date: 01-01-1999 Fuel: Diesel Approved: Yes
      Bosch Model: DDOD Model series: DDOD 83 Size of motor: 8.0 Brand of engine: F5L413FR From date: 01-04-1982 To date: 01-01-1999 Fuel: Diesel Approved: Yes
      KHD Model: Engine Model series: Engine Size of motor: 8.0 Brand of engine: F5L413FR From date: 01-04-1984 Fuel: Diesel Approved: Yes
      KHD Model: Engine Model series: Engine Size of motor: 9.6 Brand of engine: BF6L513.. From date: 01-01-1979 Fuel: Diesel Approved: Yes
      KHD Model: Engine Model series: Engine Size of motor: 9.6 Brand of engine: F6L413 From date: 01-04-1982 Fuel: Diesel Approved: Yes
