Varenr.: F032333426

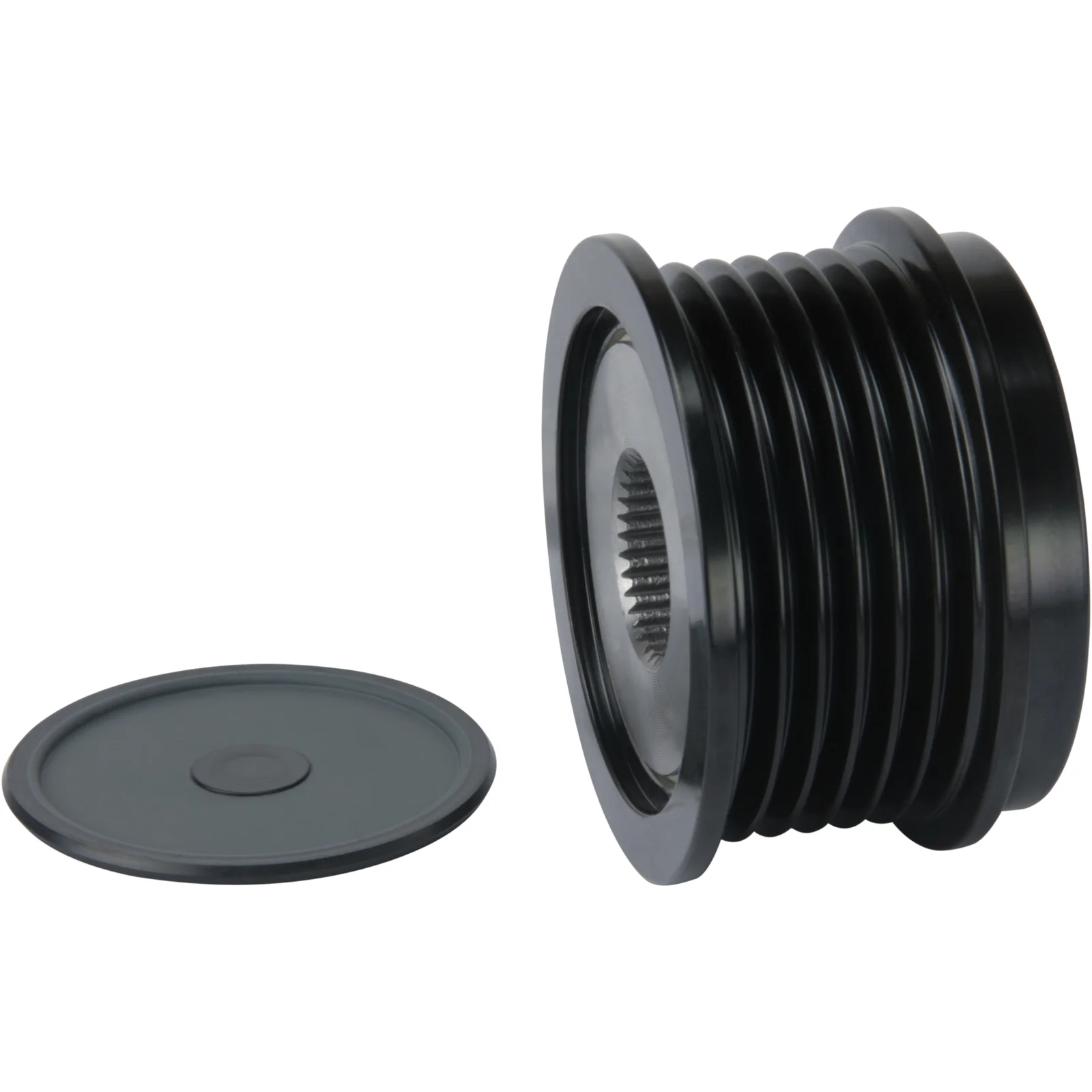

Reimhjul

Teknisk info:

Rotasjon: CW, OD mm: 53,50, Bredde 1 mm: 40,10, Boringsdiameter: 17,00

Beskrivelse

Rotasjon: CW
OD mm: 53,50
Bredde 1 mm: 40,10
Gele dia.: 17,00
Gjengetype: M16-1,50
Dybde mm: 15,30
Avstand/tilbake: 4,10
Remtype: OAD
Grofiler: 6
Reimtype: Multi Reim
Friløp: med
Måling 1. grov: 16,30
Notater: Oppmerksomhet: Alltid skift ut OADTM-bøssinger med samme OADTM-teknologi – For å forhindre skader og tap av garanti ved feil.

Spesifikasjon

Measurement 1. groove 16.30
Belt type Multi Belt
Bore dia. 17.00
Pulley type OAD
Remarks Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.
Rotation CW
Dist./back 4.10
Free run w/
Grooves 6
Thread size M16-1.50
Width 1 40.10 mm
Depth 15.30 mm
OD 53.50 mm
  • Beskrivelse
    Rotasjon: CW
    OD mm: 53,50
    Bredde 1 mm: 40,10
    Gele dia.: 17,00
    Gjengetype: M16-1,50
    Dybde mm: 15,30
    Avstand/tilbake: 4,10
    Remtype: OAD
    Grofiler: 6
    Reimtype: Multi Reim
    Friløp: med
    Måling 1. grov: 16,30
    Notater: Oppmerksomhet: Alltid skift ut OADTM-bøssinger med samme OADTM-teknologi – For å forhindre skader og tap av garanti ved feil.
  • Spesifikasjon
    Measurement 1. groove 16.30
    Belt type Multi Belt
    Bore dia. 17.00
    Pulley type OAD
    Remarks Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.
    Rotation CW
    Dist./back 4.10
    Free run w/
    Grooves 6
    Thread size M16-1.50
    Width 1 40.10 mm
    Depth 15.30 mm
    OD 53.50 mm
