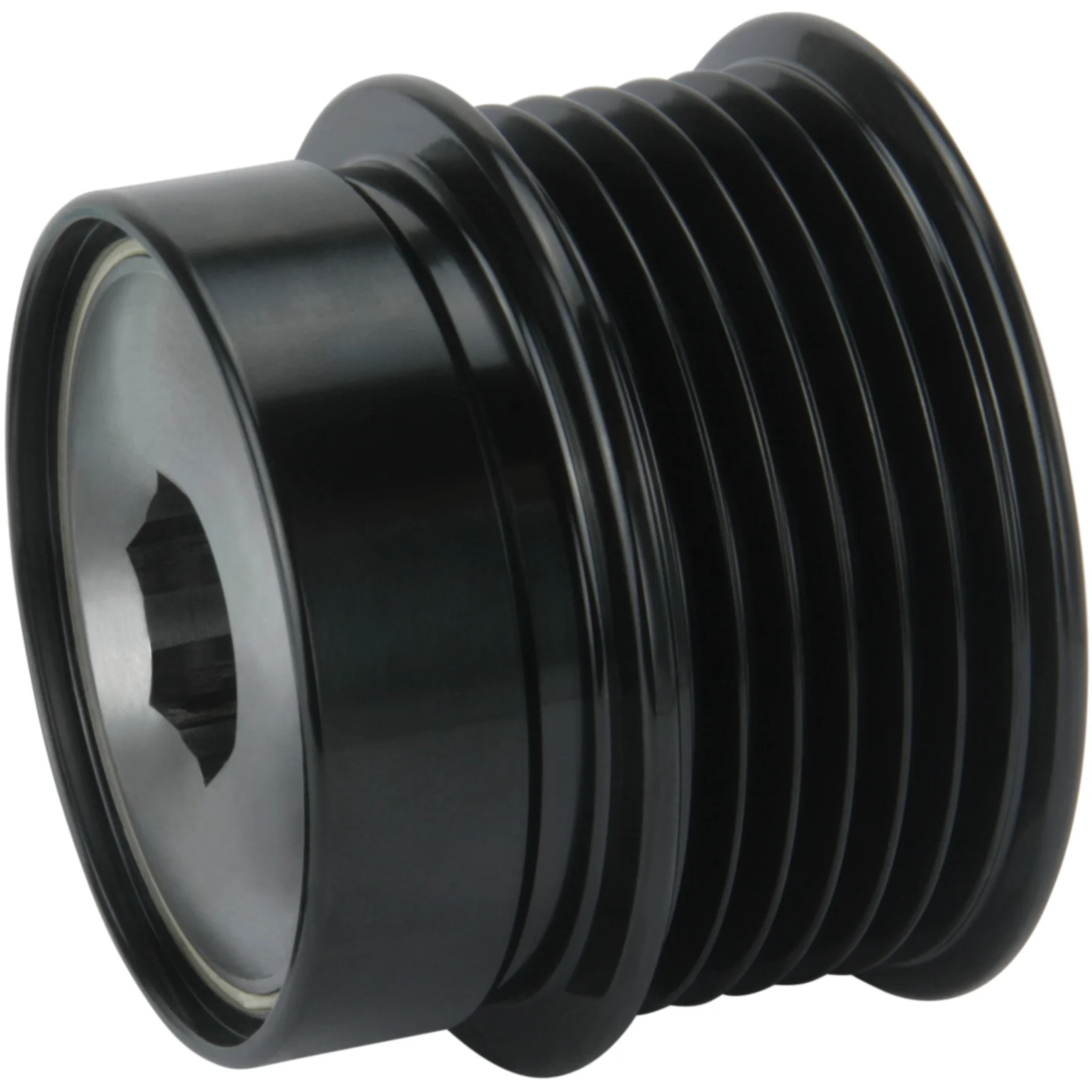

Varenr.: F032333689

Reimhjul

Teknisk info:

Rotasjon: CW, OD mm: 57,50, Bredde 1 mm: 51,70, Bor dia.: 17,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Rotasjon: CW
OD mm: 57,50
Bredde 1 mm: 51,70
Slipe dia.: 17,00
Trådstørrelse: M14-1,50
Dybde mm: 12,00
Avstand/bak: 4,90
Reimtype: OAD
Grooves: 6
Reimtype: Multi Reim
Friløp: v/
Måling 1. spor: 9,00
Merknader: Oppmerksomhet: Alltid bytt ut OADTM-bøssinger med den samme OADTM-teknologien – For å forhindre skader og tap av garantien i tilfelle feil.

Spesifikasjon

Measurement 1. groove 9.00
Belt type Multi Belt
Bore dia. 17.00
Pulley type OAD
Remarks Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.
Rotation CW
Dist./back 4.90
Free run w/
Grooves 6
Thread size M14-1.50
Width 1 51.70 mm
Depth 12.00 mm
OD 57.50 mm
  • OEM

    F032333689, 021040-1241, 920040, 535019710
  • Konkurrentreferens

    AFP6029, AFP6046, AFP6046(LITENS), AFP6049(LITENS)
  • NormaliseratArtNr

    afp6029, afp6046, afp6046litens, afp6049litens, f032333689, 920040, 0210401241, 535019710
  • Beskrivelse
    Rotasjon: CW
    OD mm: 57,50
    Bredde 1 mm: 51,70
    Slipe dia.: 17,00
    Trådstørrelse: M14-1,50
    Dybde mm: 12,00
    Avstand/bak: 4,90
    Reimtype: OAD
    Grooves: 6
    Reimtype: Multi Reim
    Friløp: v/
    Måling 1. spor: 9,00
    Merknader: Oppmerksomhet: Alltid bytt ut OADTM-bøssinger med den samme OADTM-teknologien – For å forhindre skader og tap av garantien i tilfelle feil.
  • Spesifikasjon
    Measurement 1. groove 9.00
    Belt type Multi Belt
    Bore dia. 17.00
    Pulley type OAD
    Remarks Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.
    Rotation CW
    Dist./back 4.90
    Free run w/
    Grooves 6
    Thread size M14-1.50
    Width 1 51.70 mm
    Depth 12.00 mm
    OD 57.50 mm
  • Kjøretøymatching
    • OEM

      F032333689, 021040-1241, 920040, 535019710
    • Konkurrentreferens

      AFP6029, AFP6046, AFP6046(LITENS), AFP6049(LITENS)
    • NormaliseratArtNr

      afp6029, afp6046, afp6046litens, afp6049litens, f032333689, 920040, 0210401241, 535019710
